SUF25-162-810 Glazed Tile Roll Forming Machine

Payment Type: L/C,T/T,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,CIP
Min. Order: 1 Set/Sets
Delivery Time: 30 Days

Basic Info


Model No.: SUF

Tile Type: Colored Steel

Certification: CE, ISO

Condition: New

Customized: Customized

Usage: Roof, Wall, Floor

Transmission Method: Machinery

Thickness: 0.3-1.0mm

Material: GI, PPGI For Q195-Q345

Forming Speed: 5-8m/min

Roller Stations: 14 Steps

Material Of Rollers: 45# Steel With Chromed

Shaft Diameter And Material: 75mm, Material Is 45# Steel

Material Of Cutter: Cr12

Motor Power: 5.5kw

Voltage: Customized

Control System: PLC


Additional Info


Packaging: NAKED

Productivity: 500 SETS

Brand: SUF

Transportation: Ocean

Place of Origin: CHINA

Supply Ability: 500 SETS

Certificate: ISO 9001 / CE

HS Code: 84552210

Port: XIAMEN,TIANJIN


Product Description

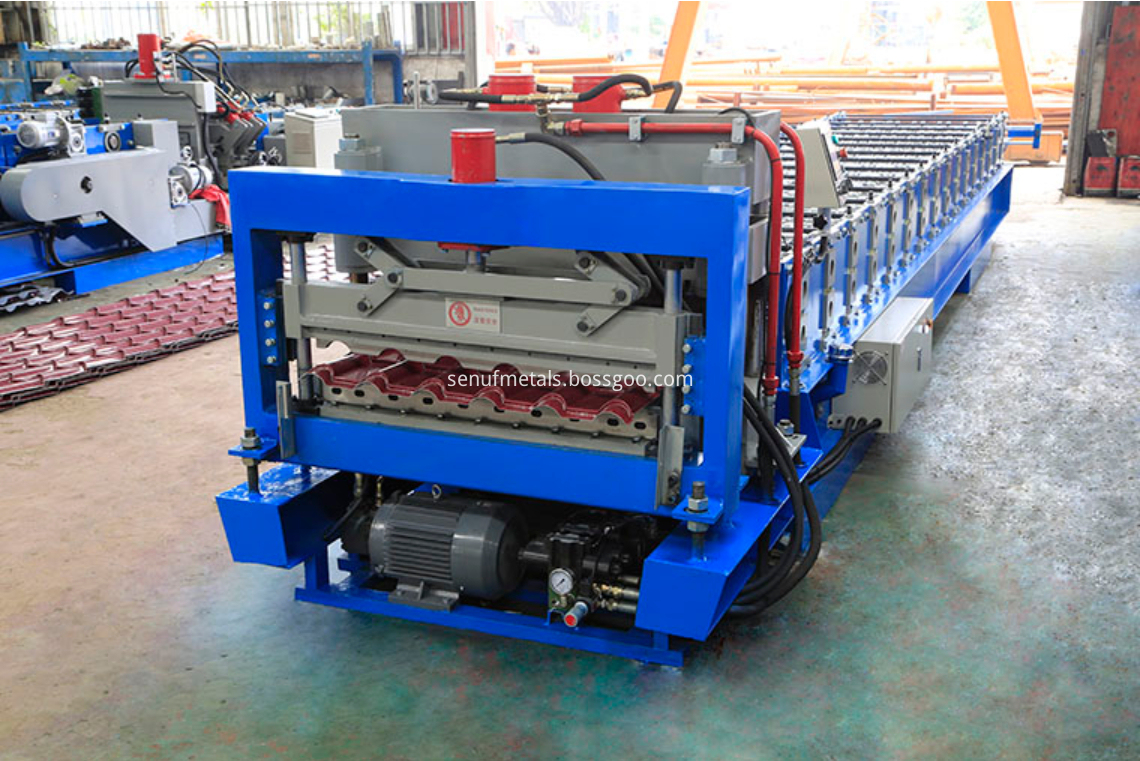

SUF25-162-810 Glazed Tile Roll Forming Machine

  The archaistic tile sheet is rolled and pressed by modular tile making machine, it has many features, such as good appearance, primitive simiplicity and elegance, unique style, noblest grade, and etc. It is widely used in garden style factories, scenic resorts, pavilions,hotels, villas, exhibition halls, country clubs, and so on for outdoor decorations.

glazed tile forming machine

Main features of Glazed Tile Roll Forming Machine


The advanages of SUF25-162-810 Glazed Tile Forming Machine are as follows:

1. Low cost, light weight but high strength, short building period, and re-cycle use,

2. Save material, no wadte,

3. Easy operation, low maintenance cost,

4. Infinite sizing (any size within machine range)

5. Optional punch hole at any position of purlin web side and flange size


Detailed images of SUF25-162-810 Glazed Tile Forming Machine

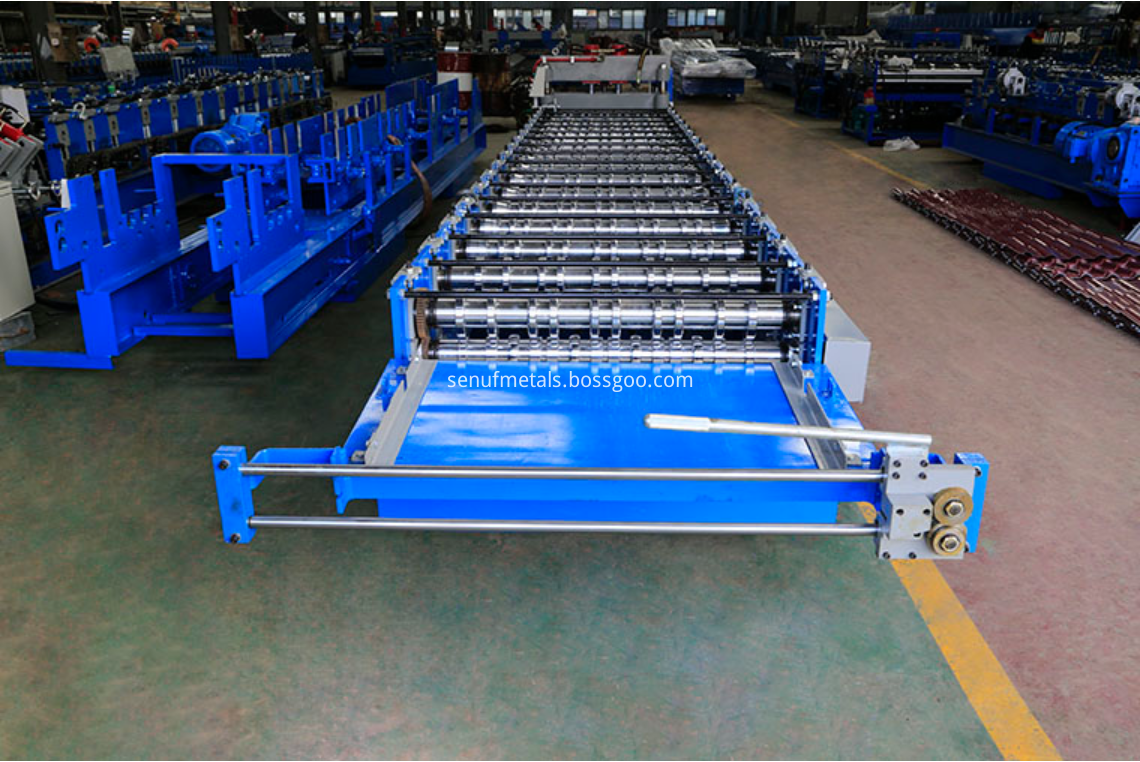

1. SUF25-162-810 Glazed Tile Forming Machine pre-cutter

with feeding guide

glazed tile forming machine (2)

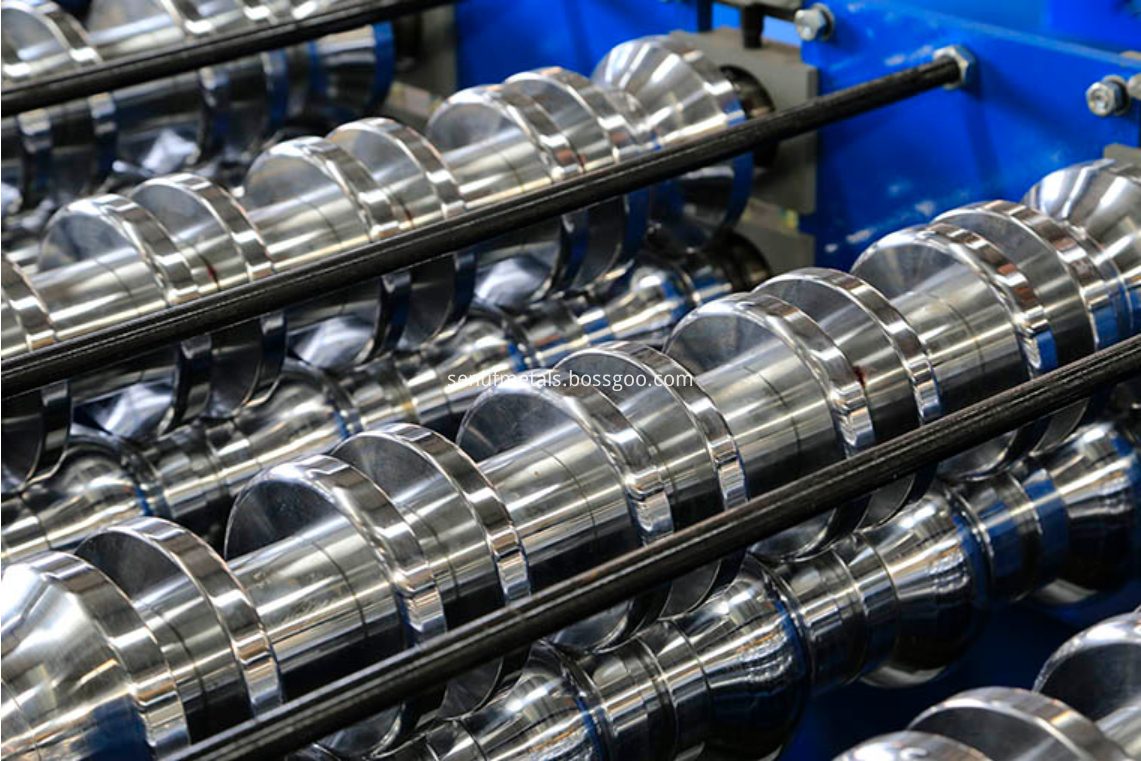

2. SUF25-162-810 Glazed Tile Forming Machine rollers

Rollers manfactured made by high quality 45# steel, CNC lathes, Heat Treatment,

with black treatment or Hard-Chrome Coating for options,

Body frame made by 350# H type steel by welding

glazed tile forming machine rollers

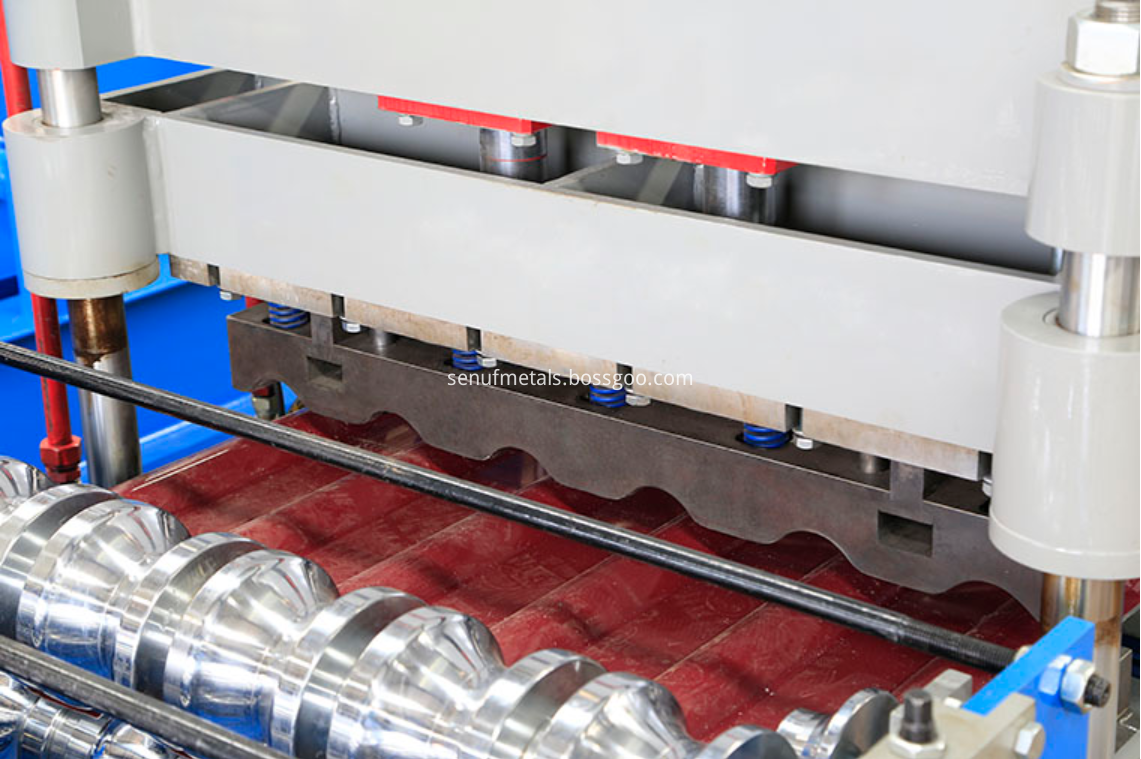

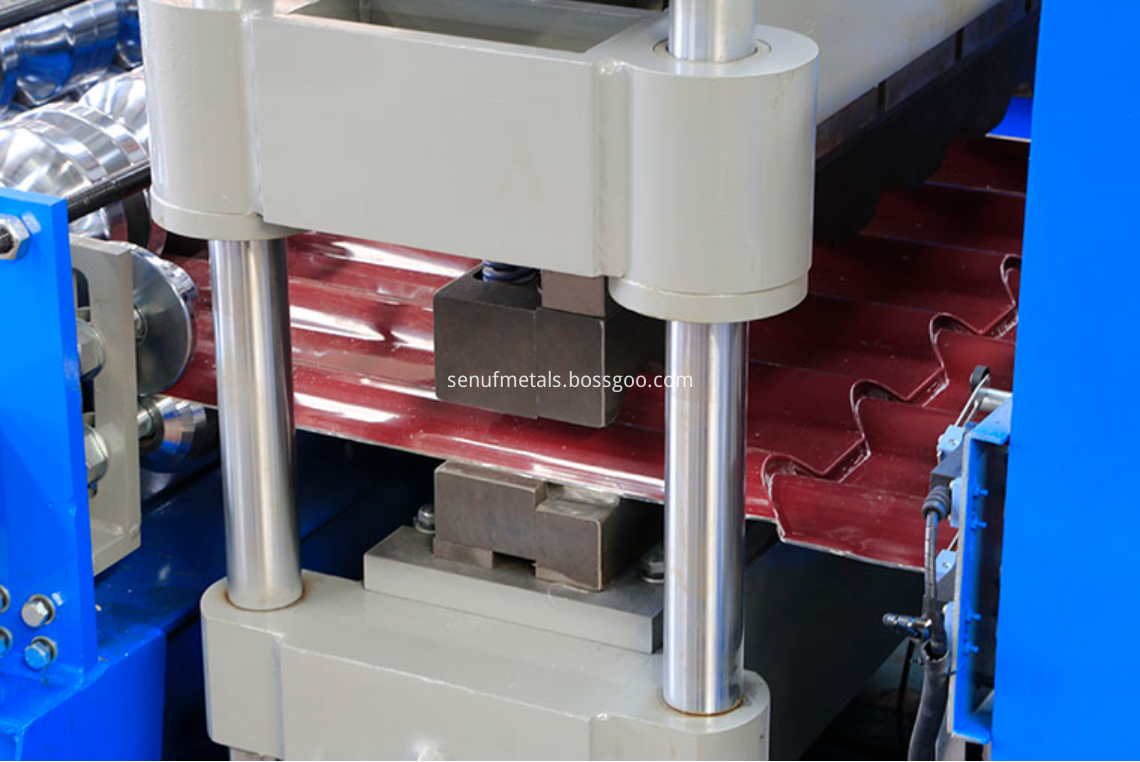

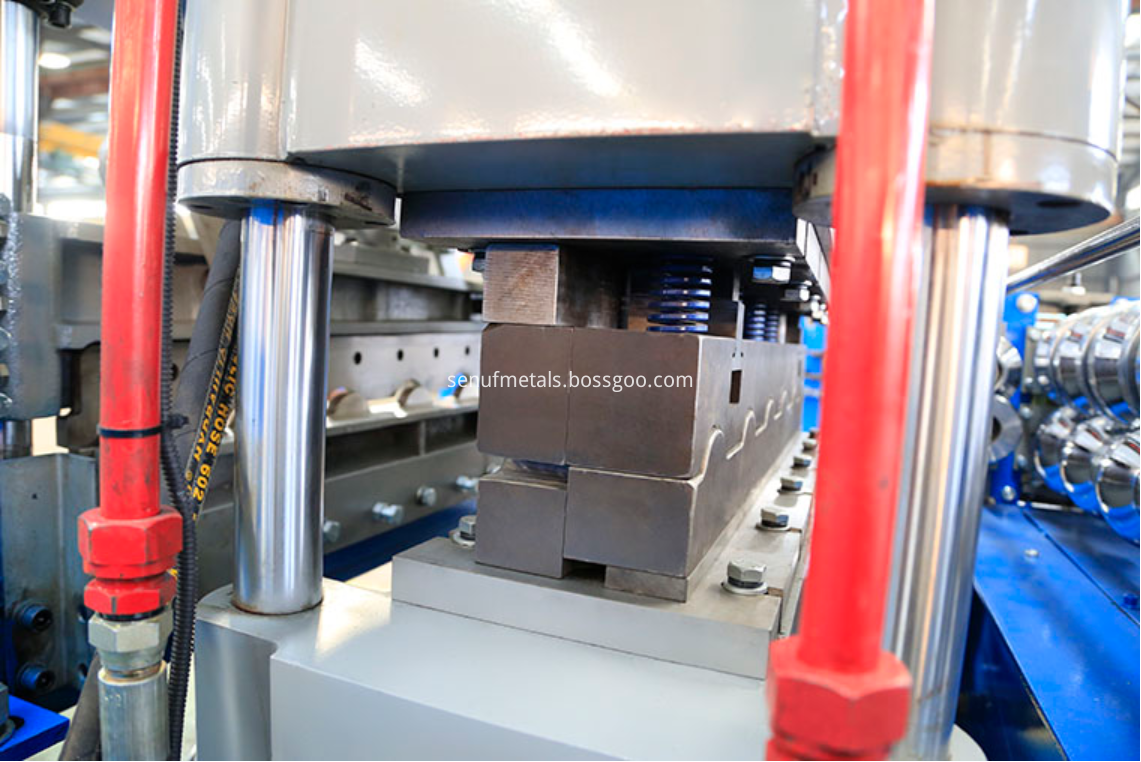

3. SUF25-162-810 Glazed Tile Forming Machine punching mold

glazed tile forming machine (3)

glazed tile forming machine (4)

glazed tile forming machine (6)

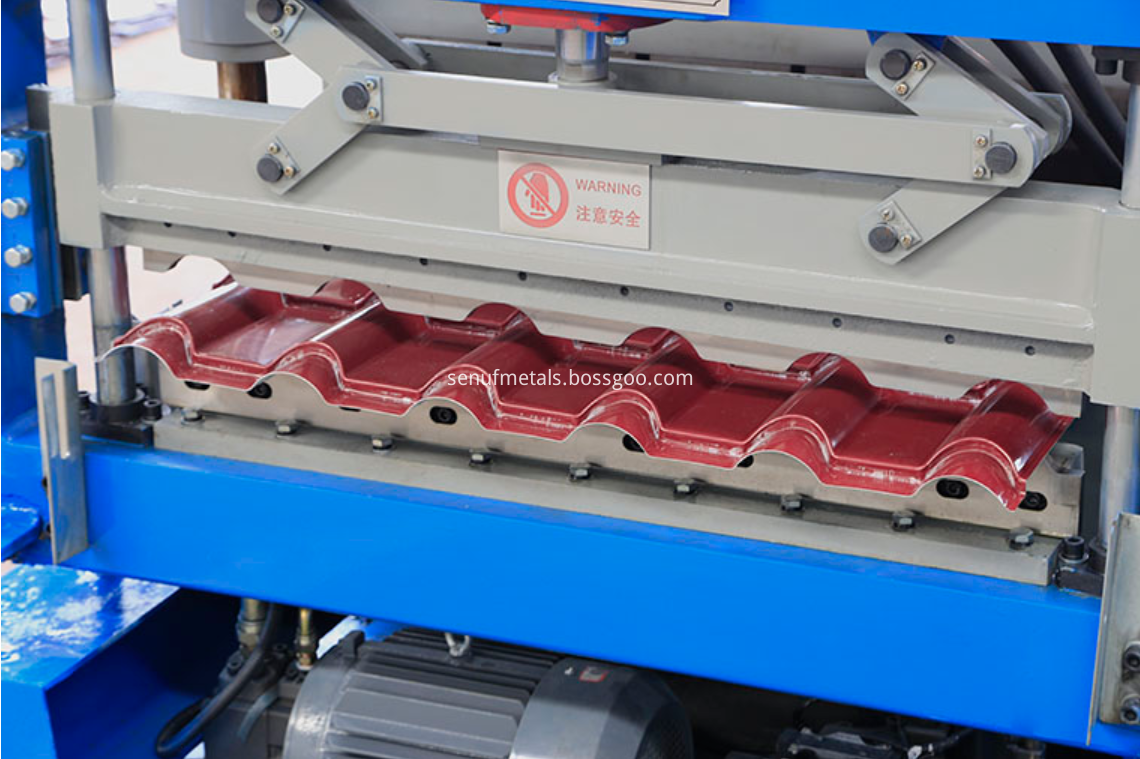

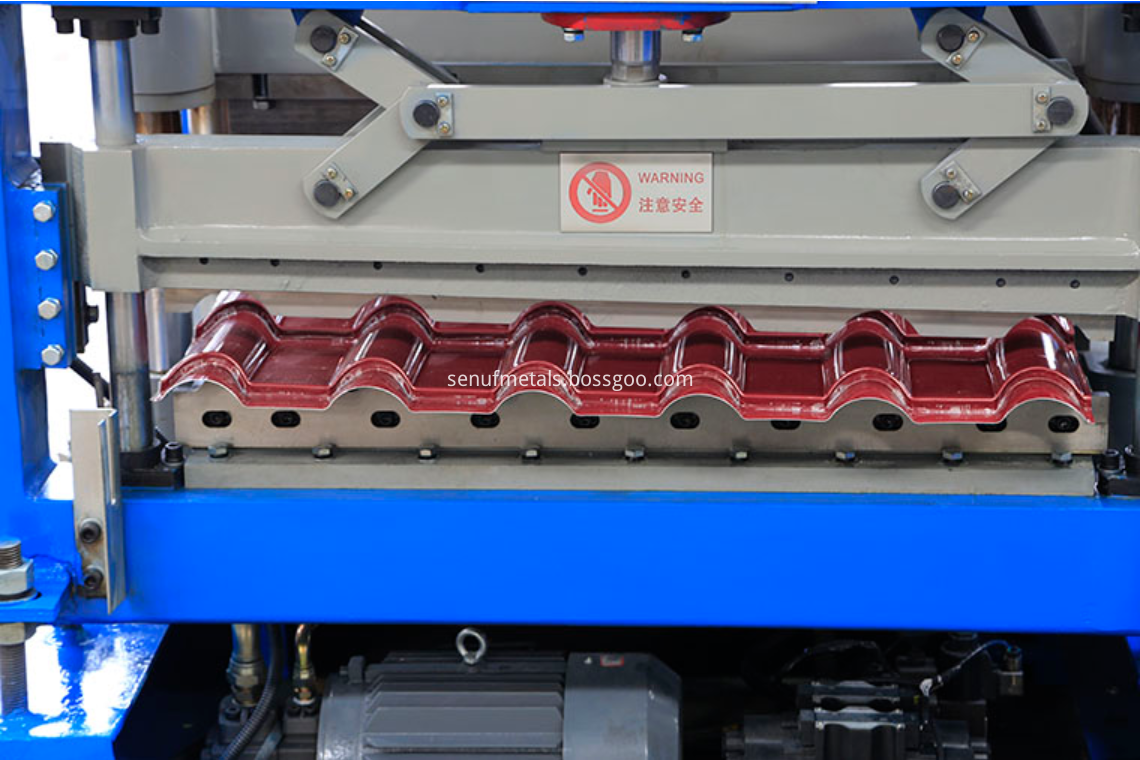

4. SUF25-162-810 Glazed Tile Forming Machine post cutter

Made by high quality mold steel Cr12 with eat treatment,

Cutter frame made by high quality 20mm steel plate by welding

Hydraulic motor: 5.5kw, Hydraulic pressure range: 0-16Mpa

glazed tile forming machine (8)

glazed tile forming machine (9)

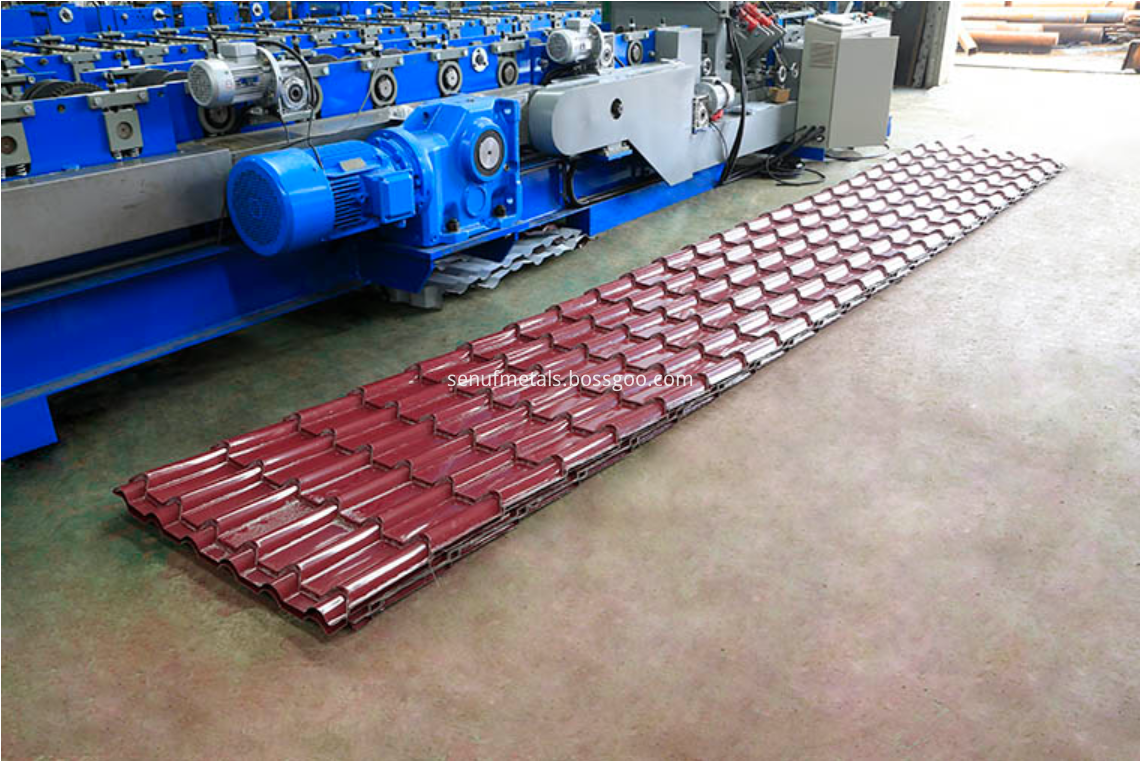

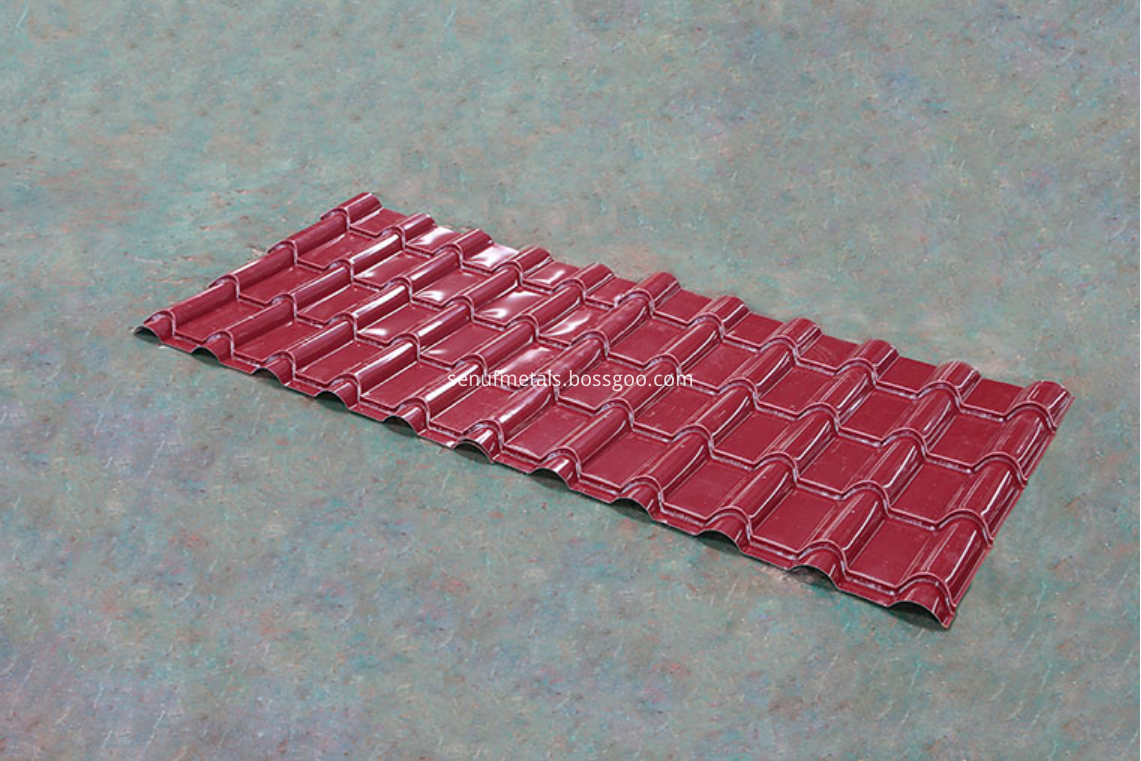

5. SUF25-162-810 Glazed Tile Forming Machine products sample

glazed tile product sample

glazed tile product sample (3)

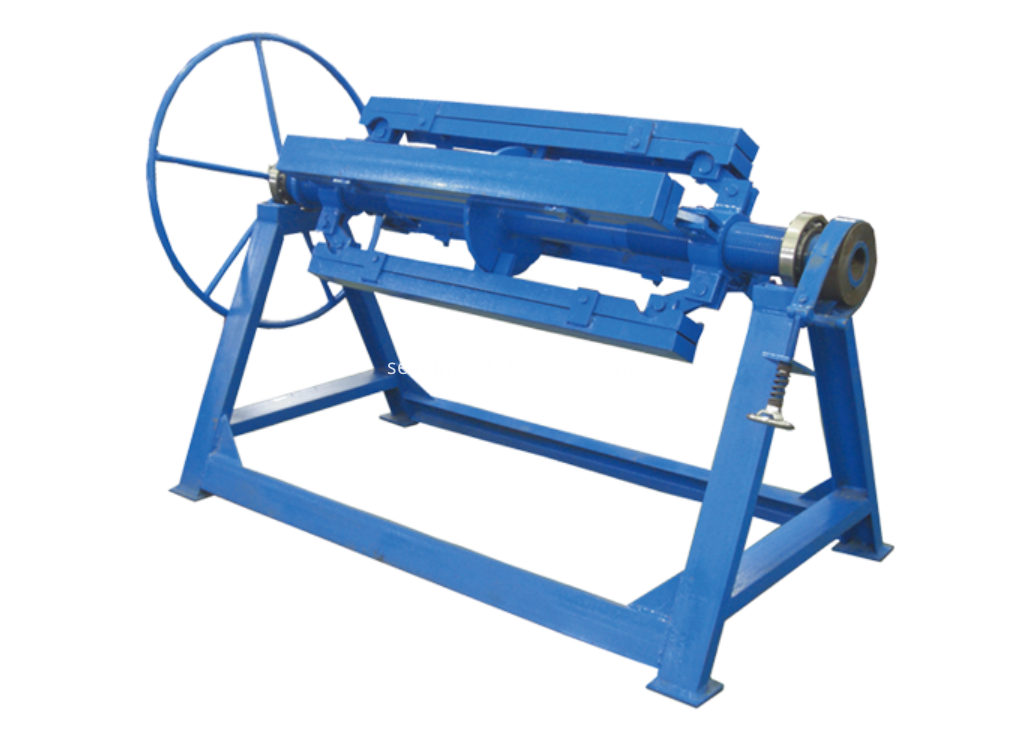

6. SUF25-162-810 Glazed Tile Forming Machine decoiler

Manual decoiler: one set

Un-powered, manually control steel coil inner bore shrinkage and stop

Max feeding width: 1200mm, coil ID range 508mm±30mm

Capacity: 5-9 tons

Manual decoiler

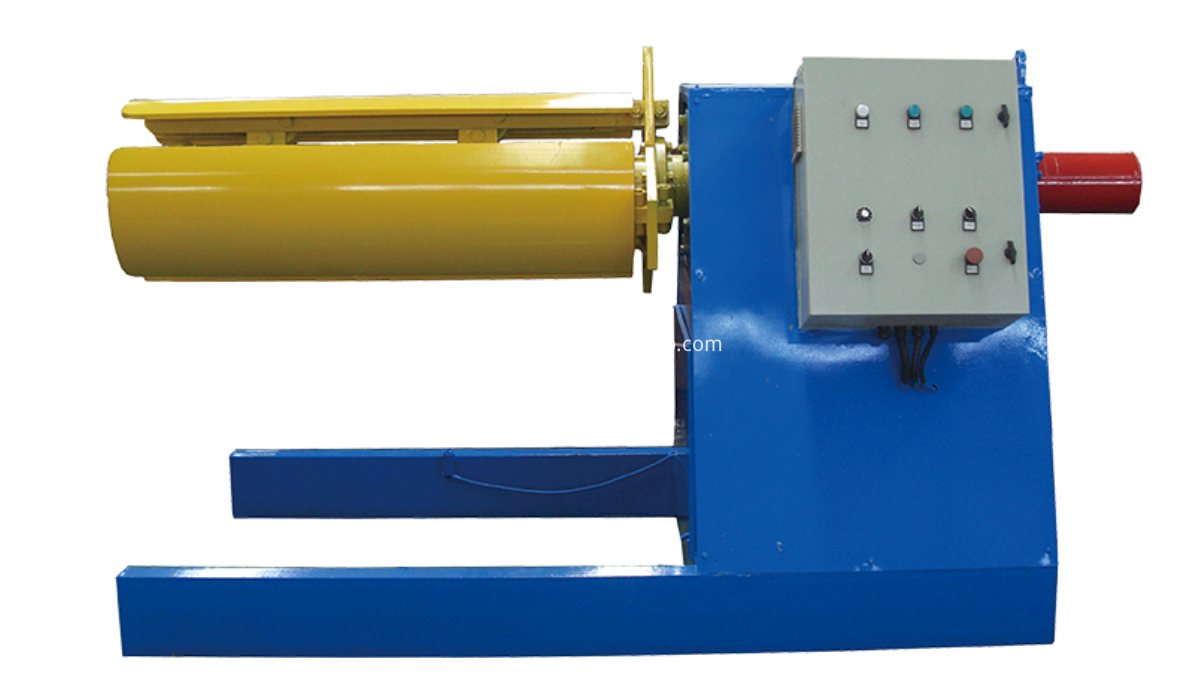

with 6 ton hydraulic decoiler for option

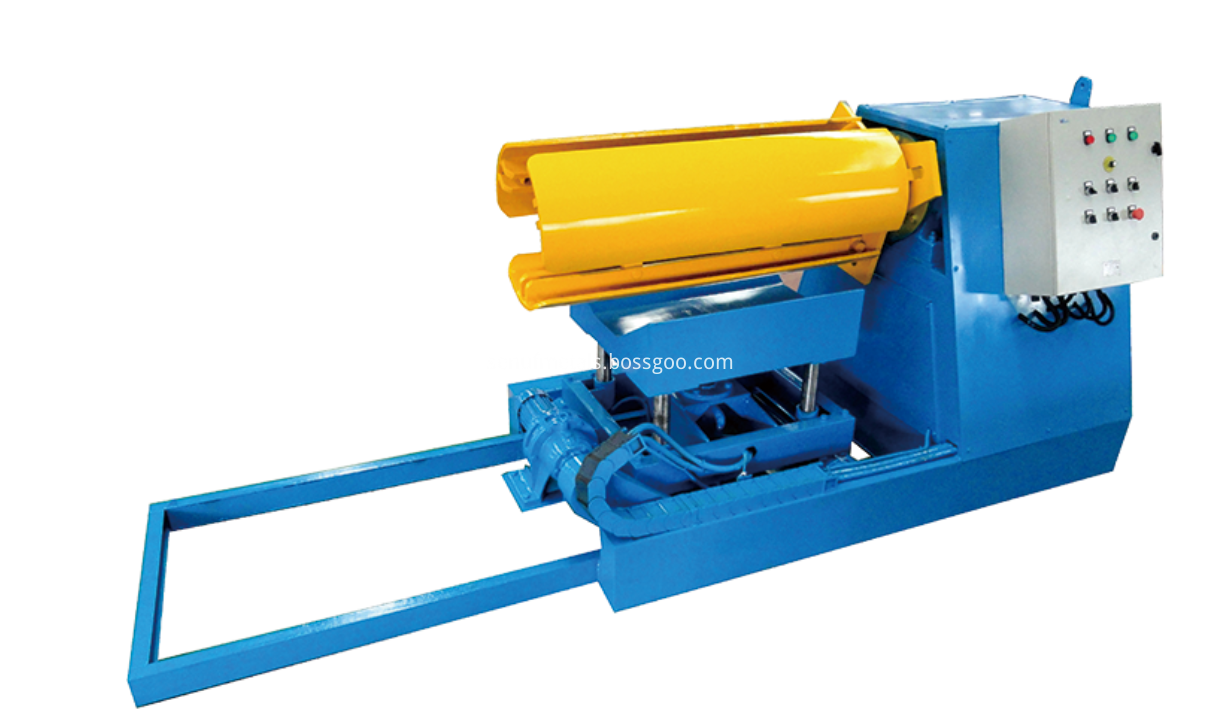

6 tons hydraulic decoiler

6 tons hydraulic decoiler with trolley


Other details of SUF25-162-810 Glazed Tile Forming Machine

Suitable for material with thickness 0.3-1.0mm

Shafts manufactured by 45#, Main shaft diameter 75mm, precision machined,

Motor driving, gear chain transmisson, 14 steps to form,

Main motor: 5.5kw, frequency speed control, forming speed approx 5-8m/min
