CNC Automatic Cutting Steel Pipe Machine

Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,CIP
Min. Order: 1 Set/Sets
Delivery Time: 15 Days

Basic Info


Model No.: SF093

Certification: CE, ISO

Condition: New

Customized: Customized

Tile Type: Other

Usage: Other

Transmission Method: Pneumatic

Voltage: Customized

Control System: PLC

Pipe Thickness: 1-5mm

Material: Carbon Steel , Stainless Steel

Material Of Cutter: HHS

Diameter Pipe: 50-130mm

Length Per Feeding: 1500mm×multiple


Additional Info


Packaging: NAKED

Productivity: 500 SETS

Brand: SUF

Transportation: Ocean,Land,Air,by train

Place of Origin: CHINA

Supply Ability: 500 SETS

Certificate: ISO 9001 / CE

HS Code: 84619090

Port: XIAMEN,TIANJIN,Shanghai


Product Description

CNC Automatic Cutting Steel Pipe  Machine

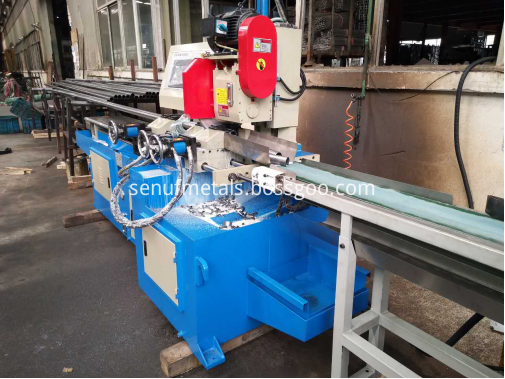

Automatic Cutting Machine (3)

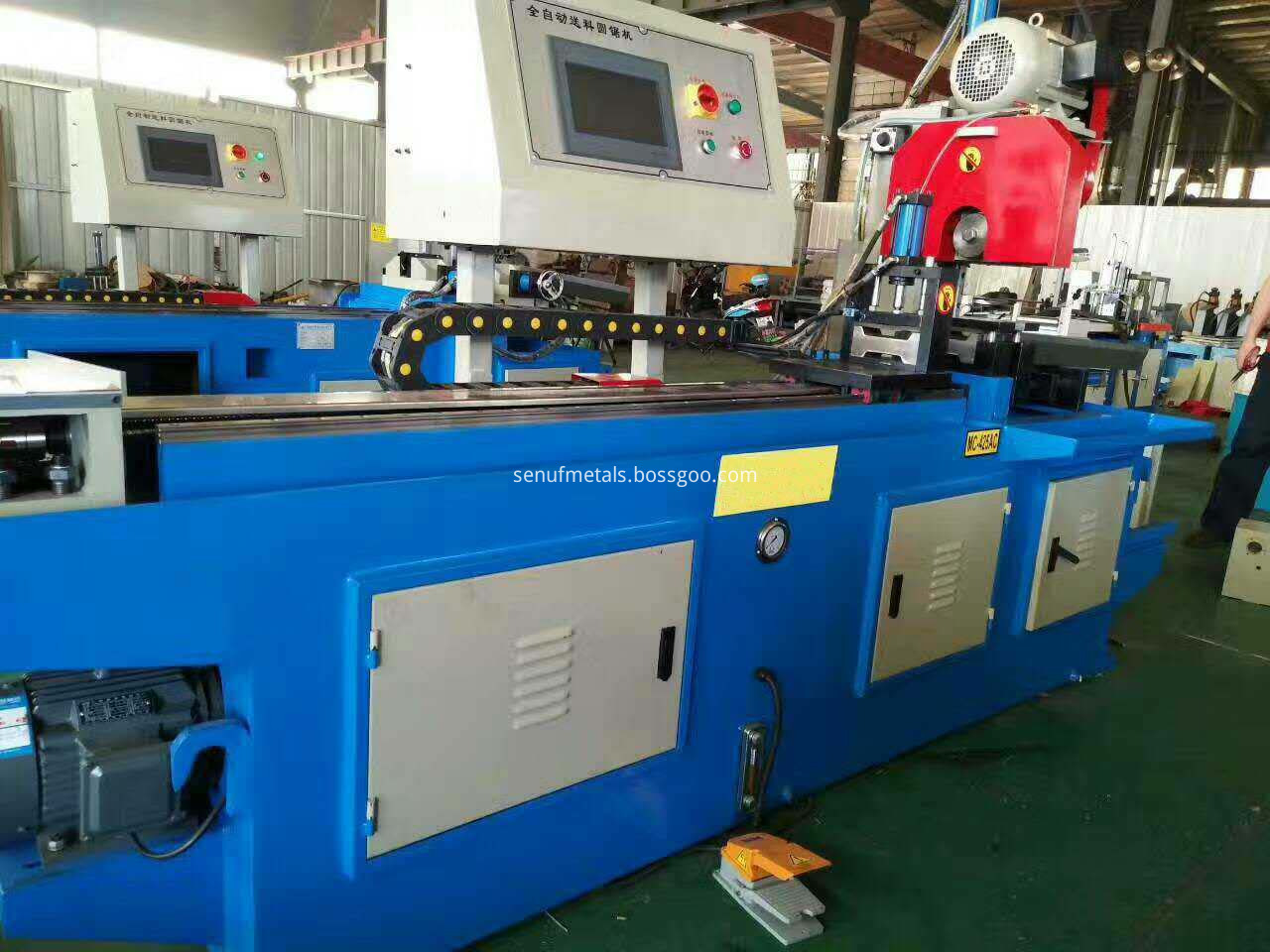

Automatic Cutting Machine (2)Automatic Cutting Machine (8)

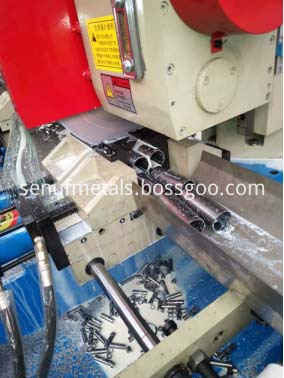

Automatic Cutting Machine (1) Automatic Cutting Machine (3)

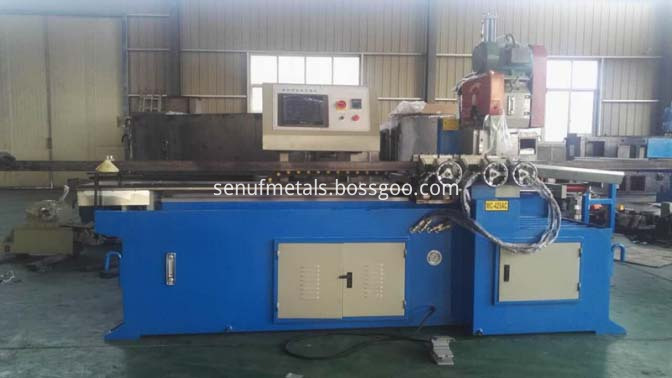

Automatic Cutting Machine (9)

Automatic Cutting Machine (11)

Automatic Cutting Machine (11)


Specification
1、Max length of feeding:1500mm (you can according to your requirement)
2、One time cut one pipe or two pipes (base on the diameter of pipe);
3、can be repeat feeding several time
4、replace jaw to cut different diameter pipe(∮6mm~125mm)
5、feeding:Servo motor + ball screw form, feed rails with self-lubricating linear guide;
6、cutting :Vertical slide form, the track using self-lubricating linear guide;
7、Pipe placed on the machine, automatic clamping, automatic feeding, automatic cutting, recycling operations.

 Technology

The material for the flying saw

The size of the flying saw

Φ425mm×8mm





material

Round pipe

Φ125

Square pipe

125x125mm

   Rectangular pipe

130x100mm

Steel bar

Φ76


No.

    Name

Parameter

remark

1

Main motor

2/4 pole 3.3/4kw



2

Speed of the mainshaft

58/29



3.









Saw

OD

Φ250-425mm



Centre hole

Φ32mm

Pin hole

2XΦ11X65mmPCD

6

Length per feeding

1500mm×multiple



7

System of oil pump

2.2kw,4pole motorpressure 25-35kg/c



8

Servo motor

Mitsubishi 1000W



9

Cold system

0.09kw motor,Automatic cooling cycle
