Glazed Tile Roll Forming Machine for SUF35-995 Profile

Payment Type: L/C,T/T,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,CIP
Min. Order: 1 Set/Sets
Delivery Time: 30 Days

Basic Info


Model No.: SUF

Tile Type: Colored Steel

Certification: CE, ISO

Condition: New

Customized: Customized

Usage: Roof, Wall, Floor

Transmission Method: Machinery

Thickness: 0.3-1.0mm

Material: GI, PPGI For Q195-Q345

Material Of Rollers: 45# Steel With Chromed

Shaft Diameter And Material: 75mm, Material Is 45# Steel

Material Of Cutter: Cr12

Voltage: Customized

Control System: PLC

Forming Speed: 12-15m/min

Roller Stations: 20 Steps

Motor Power: 15kw


Additional Info


Packaging: NAKED

Productivity: 500 SETS

Brand: SUF

Transportation: Ocean

Place of Origin: CHINA

Supply Ability: 500 SETS

Certificate: ISO 9001 / CE

HS Code: 84552210

Port: XIAMEN,TIANJIN


Product Description

Glazed Tile Roll Forming Machine for SUF35-995 Profile

1. Good quality: We have a professional designer and experienced engineer team. And the raw material and accessories we use are good.

2. Good service: we provide the technical support for whole life of our machines.

3. Guarantee period: within one year since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.

4. Easy operation:All machine cotrolling by PLC computer controlling systerm.

5. Elegant apperance:Protect the machine from rust and the painted colour can be customized

6. Reasonable price:We offer the best price in our industry.

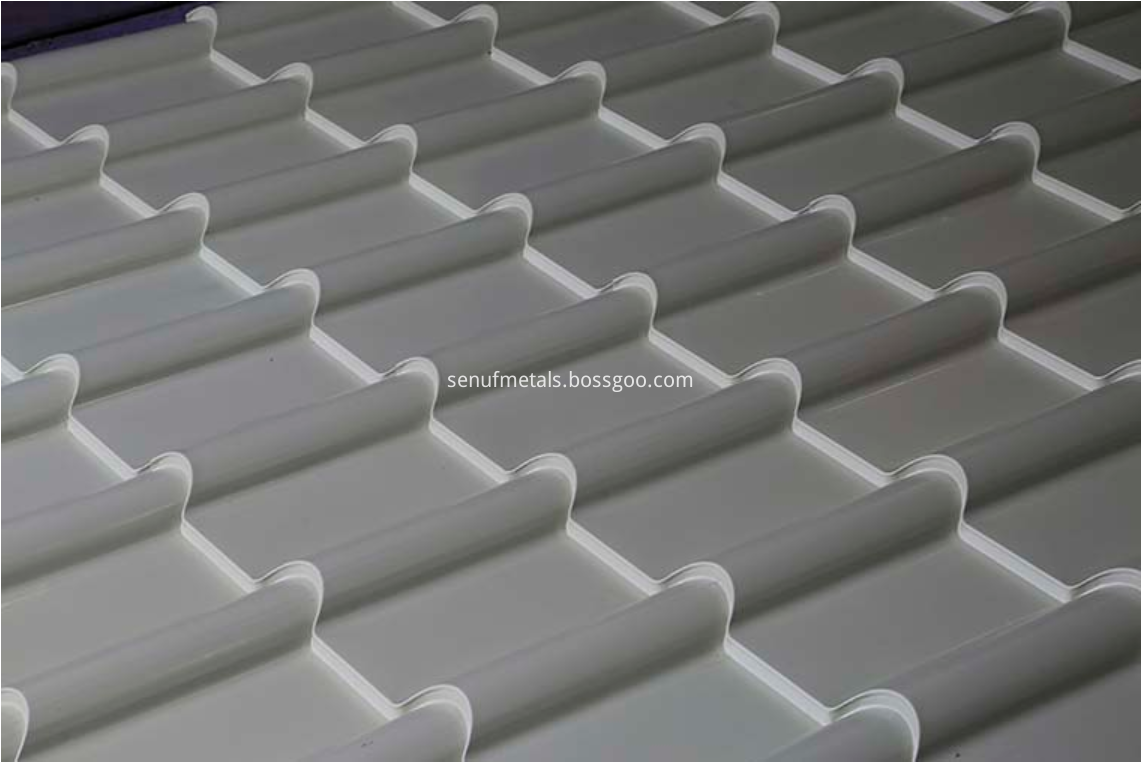

glazed tile

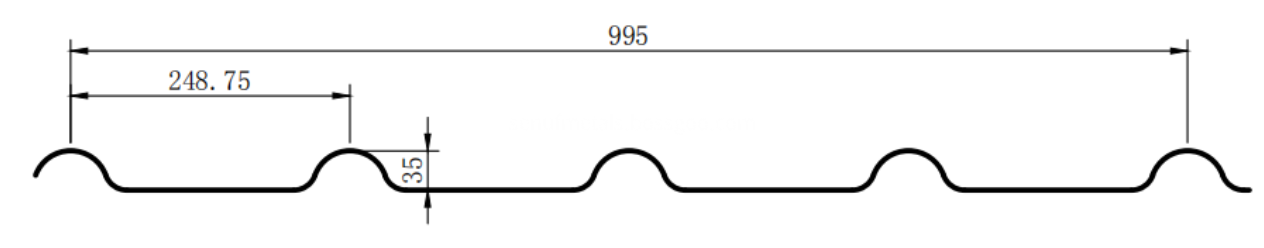

glazed tile drawing (2)

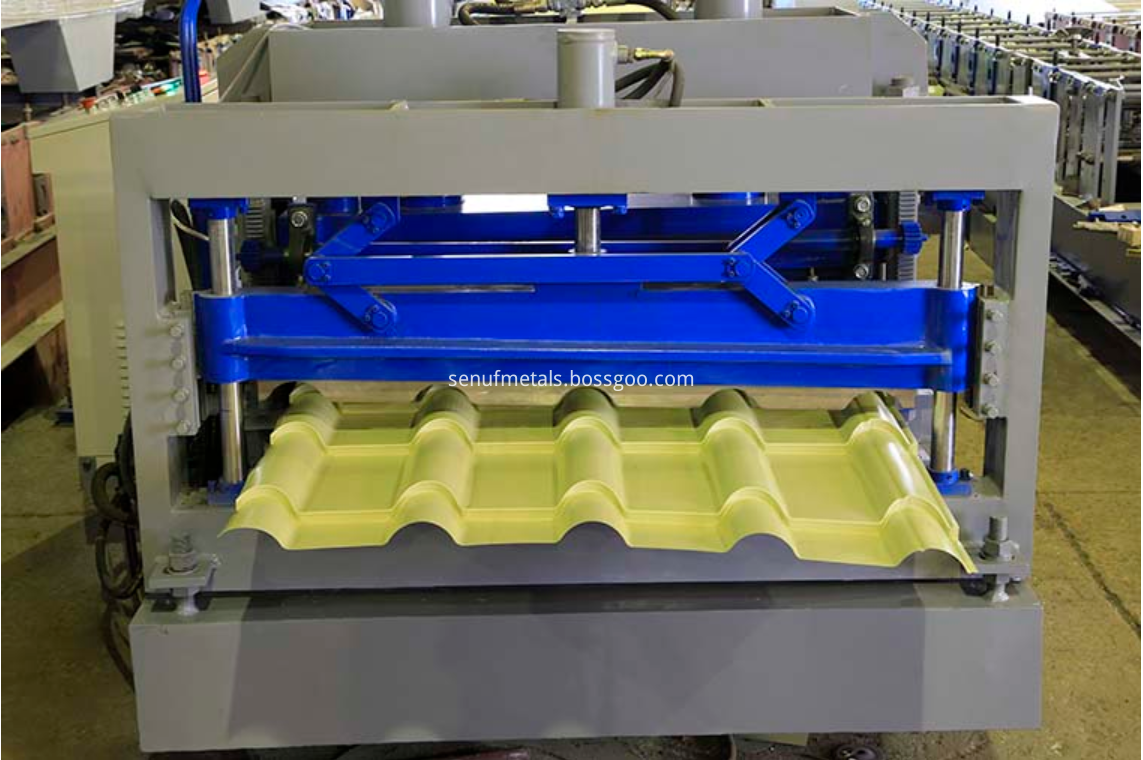

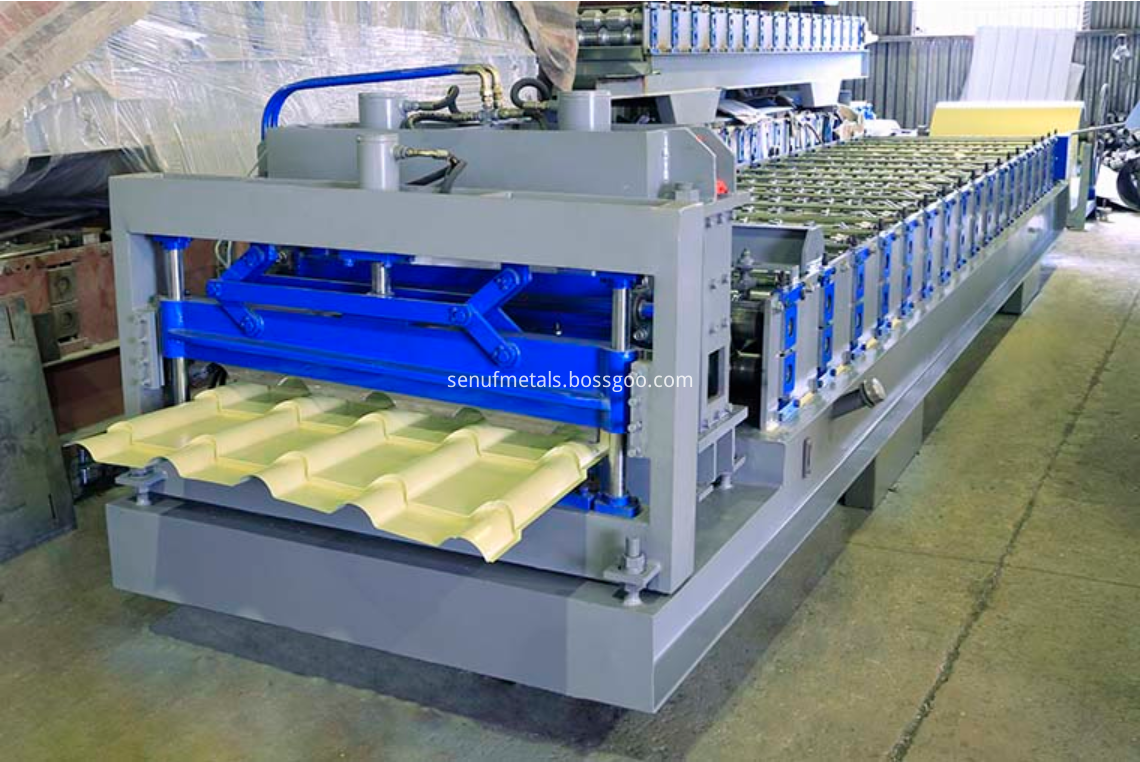

Detailed images of SUF35-995 Profile Glazed Tile Forming Machine

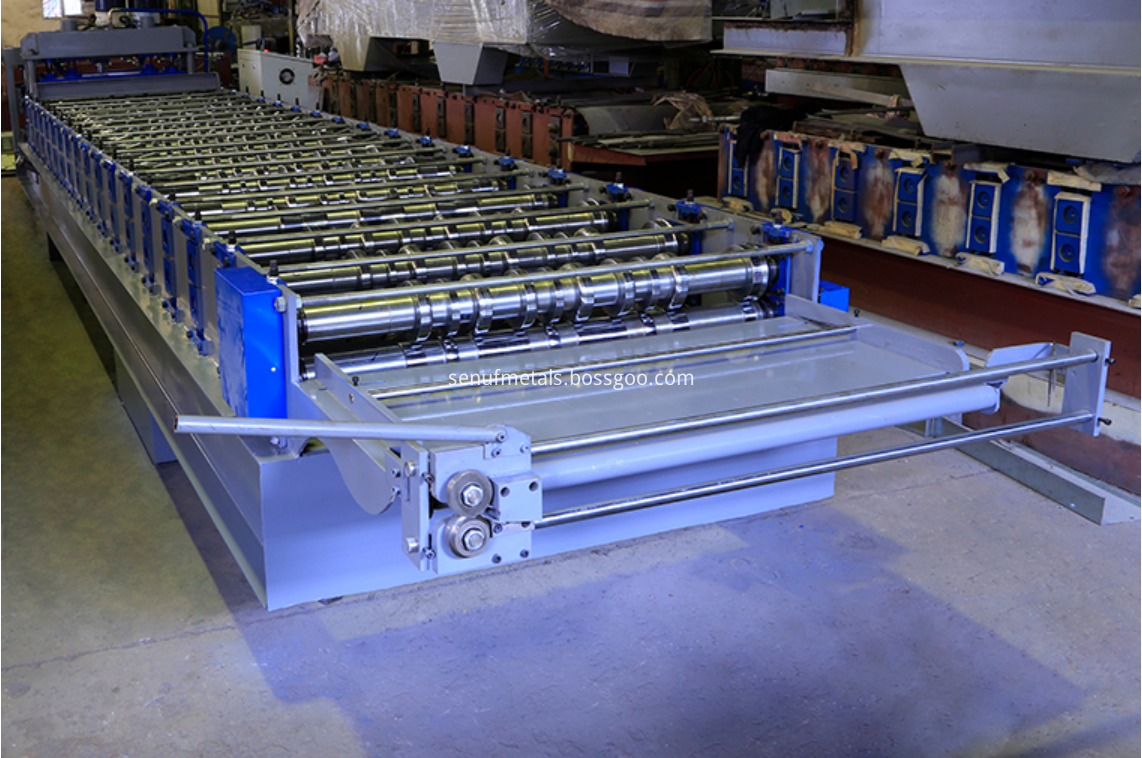

1. SUF35-995 Profile Glazed Tile Forming Machine pre-cutter

with feeding guide

glazed tile (2)

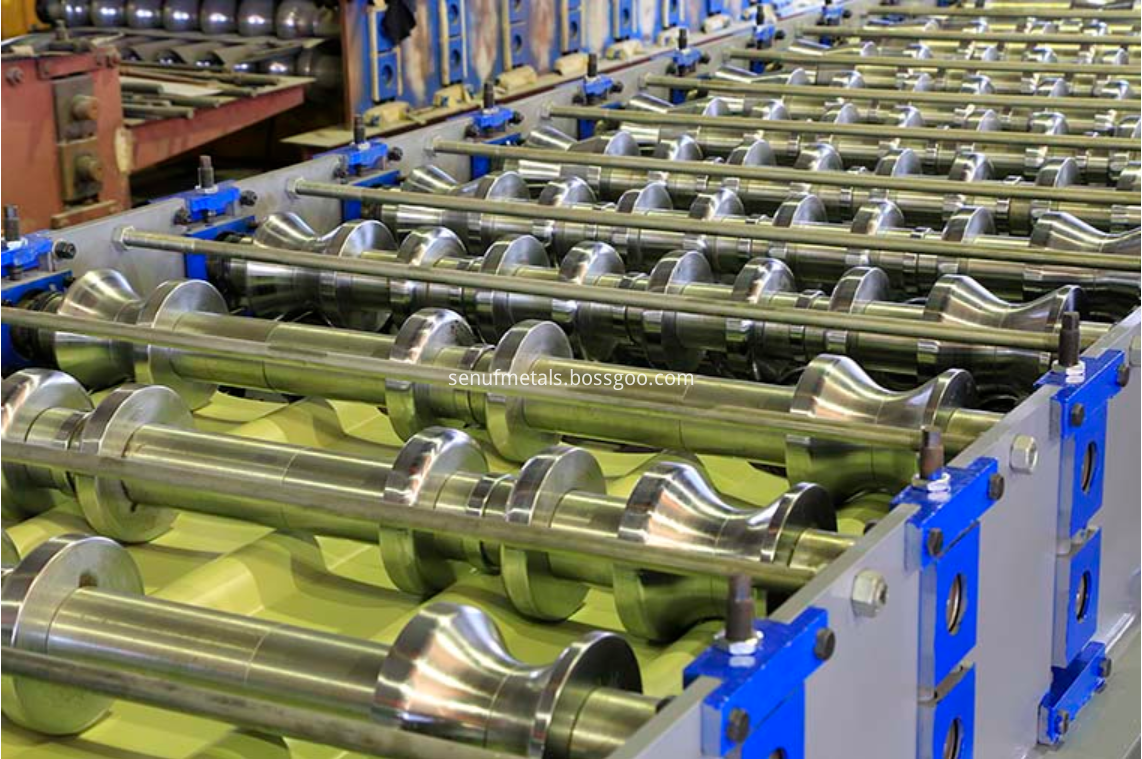

2. SUF35-995 Profile Glazed Tile Forming Machine rollers

Rollers manfactured made by high quality 45# steel, CNC lathes, Heat Treatment,

with black treatment or Hard-Chrome Coating for options,

Body frame made by 350# H type steel by welding

glazed tile (3)

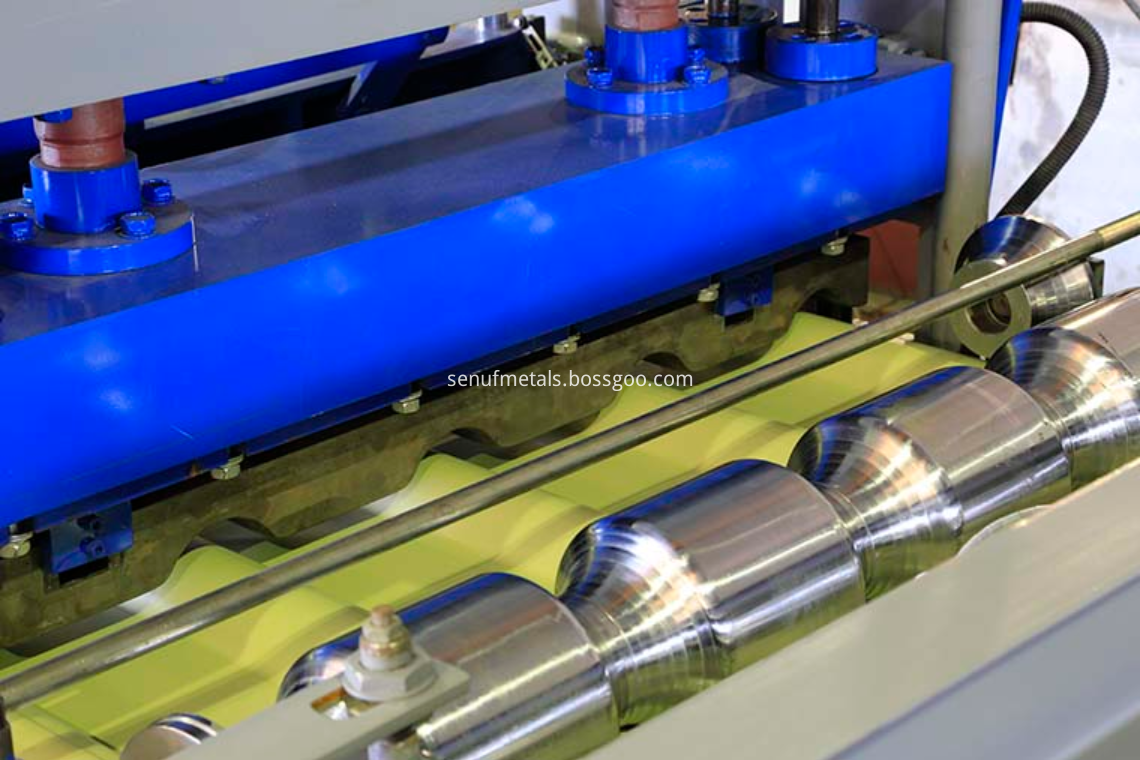

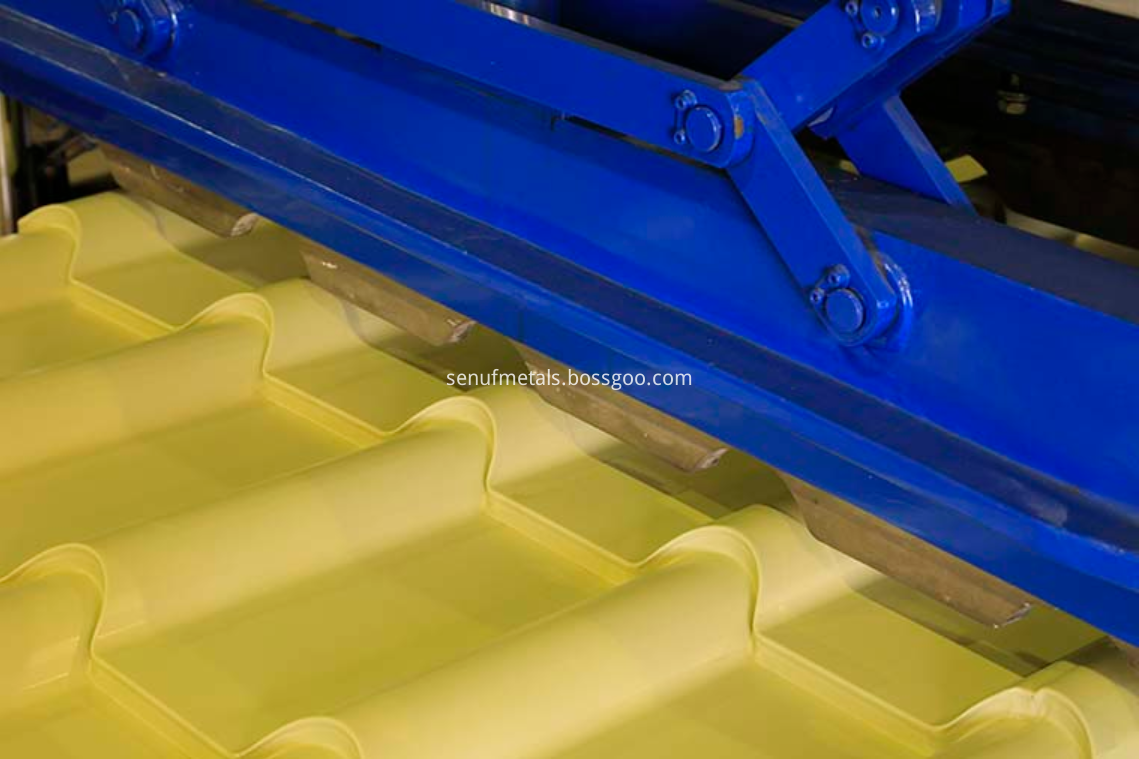

3. SUF35-995 Glazed Tile Forming Machine punching mold

glazed tile (6)


4. SUF35-995 Glazed Tile Forming Machine post cutter

Made by high quality mold steel Cr12 with eat treatment,

Cutter frame made by high quality 20mm steel plate by welding

Hydraulic motor: 5.5kw, Hydraulic pressure range: 0-16Mpa

glazed tile (4)

glazed tile (5)

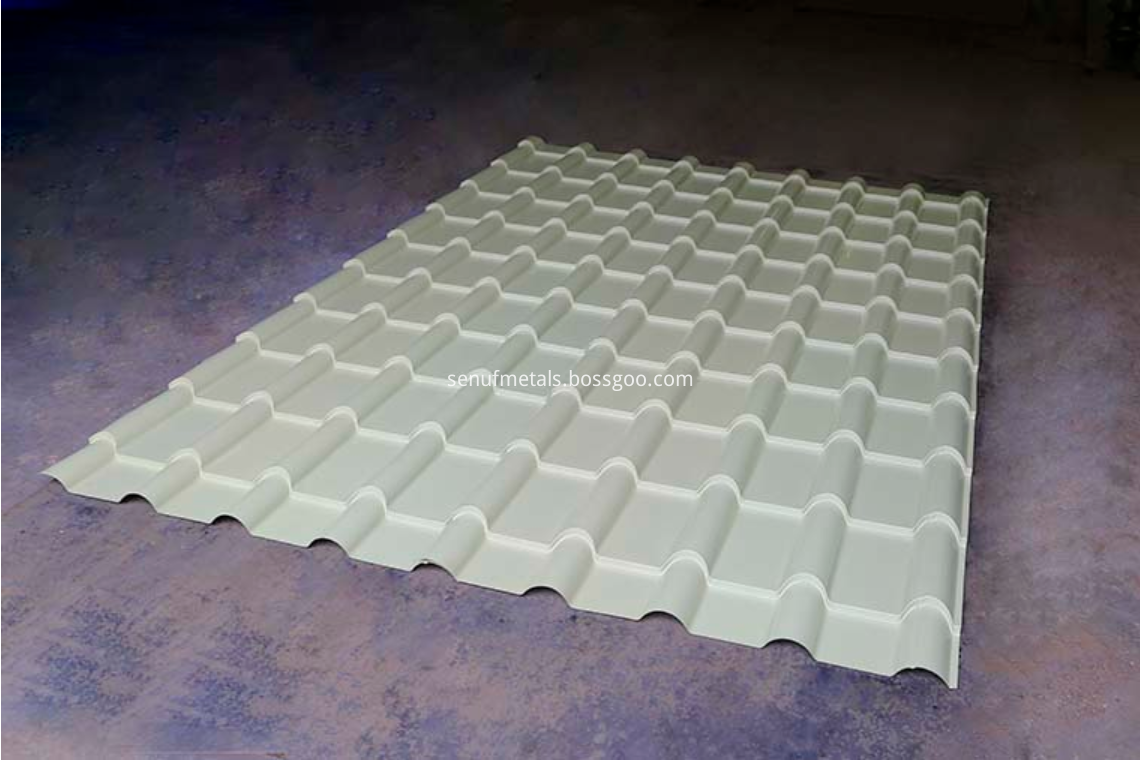

5. SUF35-995 Glazed Tile Forming Machine products sample

glazed tile product sample (4)

glazed tile product sample (5)


6. SUF35-995 Glazed Tile Forming Machine decoiler

Manual decoiler: one set

Un-powered, manually control steel coil inner bore shrinkage and stop

Max feeding width: 1200mm, coil ID range 508mm±30mm

Capacity: 5-9 tons

Manual decoiler

with 6 ton hydraulic decoiler for option

6 tons hydraulic decoiler

6 tons hydraulic decoiler with trolley


Other details of SUF35-995 Glazed Tile Forming Machine

Suitable for material with thickness 0.3-1.0mm

Shafts manufactured by 45#, Main shaft diameter 90/75mm, precision machined,

Motor driving, gear chain transmisson, 20 steps to form,

Main motor: 15kw, frequency speed control, forming speed approx 12-15m/min
