Metal floor covering deck tile forming machine

Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,CIP
Min. Order: 1 Set/Sets
Delivery Time: 30 Days

Basic Info


Model No.: SUF

Thickness: 0.8-1.5mm

Rollers: 22 Steps

Rollers Material: 45# Steel Heat Treatment And Chromed

Shaft Diameter And Material: ¢85mm, Material Is 45# Steel

Forming Speed: 15m/min

Motor Power: 15kw

Control System: PLC

Voltage: Customized

Material Of Cutter: Cr12


Additional Info


Packaging: NAKED

Productivity: 500 SETS

Brand: SUF

Transportation: Ocean

Place of Origin: CHINA

Supply Ability: 500 SETS

Certificate: ISO 9001 / CE

HS Code: 84552210

Port: FUJIAN


Product Description

SUF68-305-610 Metal floor covering deck tile forming machine

The Metal floor covering deck tile forming machine is more and more requested from the customers.
As the manufacturer, we have rich experience to produce this machine and can provide some design concepts to match various demands.


Main feaures of Metal Floor Forming Machine

The advanges of Metal Floor Deck Roll Forming Machine are asa follows:

1. The machine produced floor decking sheet have the features of low cost, light weight but high strength, short building period, and re-cycle use.

2. Save material, no waste,

3. Easy operation, low maintenace cost,

4. One machine for 3 models for optional (by changing spacer)


Detailed Images of SUF68-305-610 Floor Covering Deck Forming Machine

Machine parts

1. SUF68-305-610 Corrugated Metal Floor Deck Forming Machine manual pre-cutter

Brand: SUF, Original: China

  Only for cutting the first piece and the end of piece of the sheet. For easy operation and save material: The precutter is conneted with PLC control system, PLC is calculating profile length with roll forming. Once material is required to change, PLC is calculating the length for total quantity and remid operator, production finishes and able to manual shearing material before roll forming so as to change material for new production. It is the advanced function and good for production to save material, no waste.

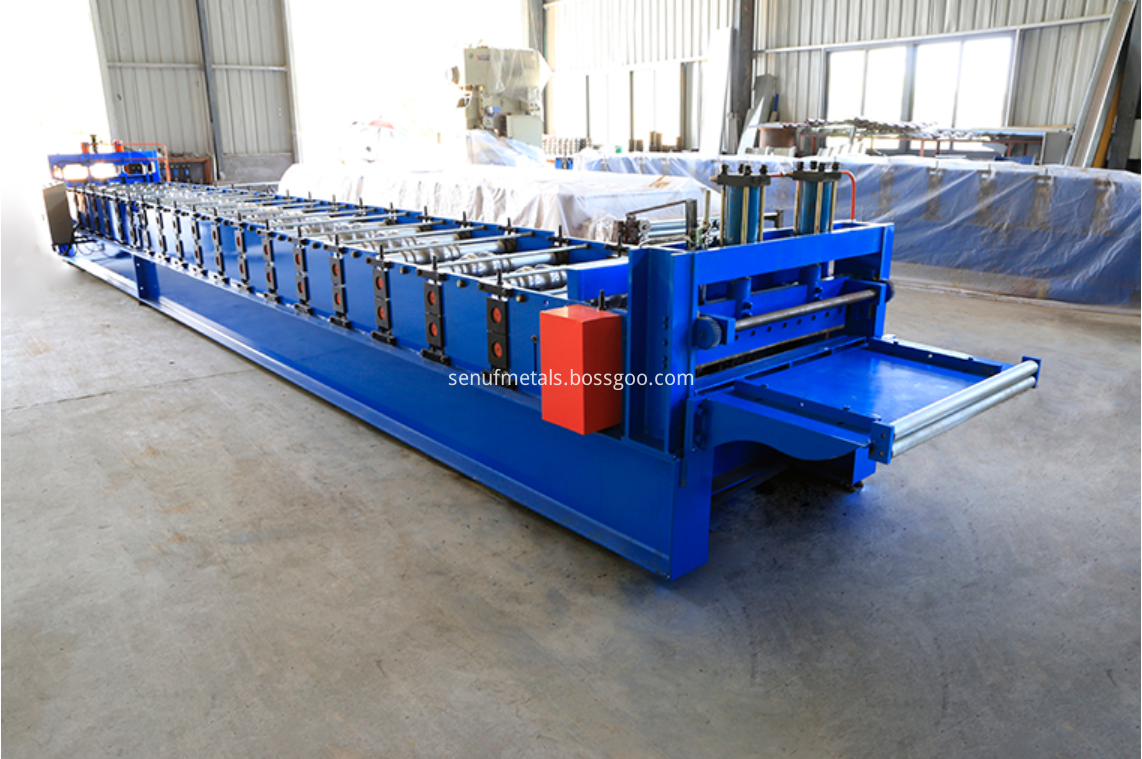

Decking floor machine 2

2. SUF68-305-610 Metal Floor Deck Forming Machine

Rollers manufactured from high quality 45#steel, CNC lathes, Heat Treatment. with Hard-Chrome Coating for long working life.

Body frame made by 400H steel by welding, The material for embossing roller: bearing steel GCR15, heat treatment.

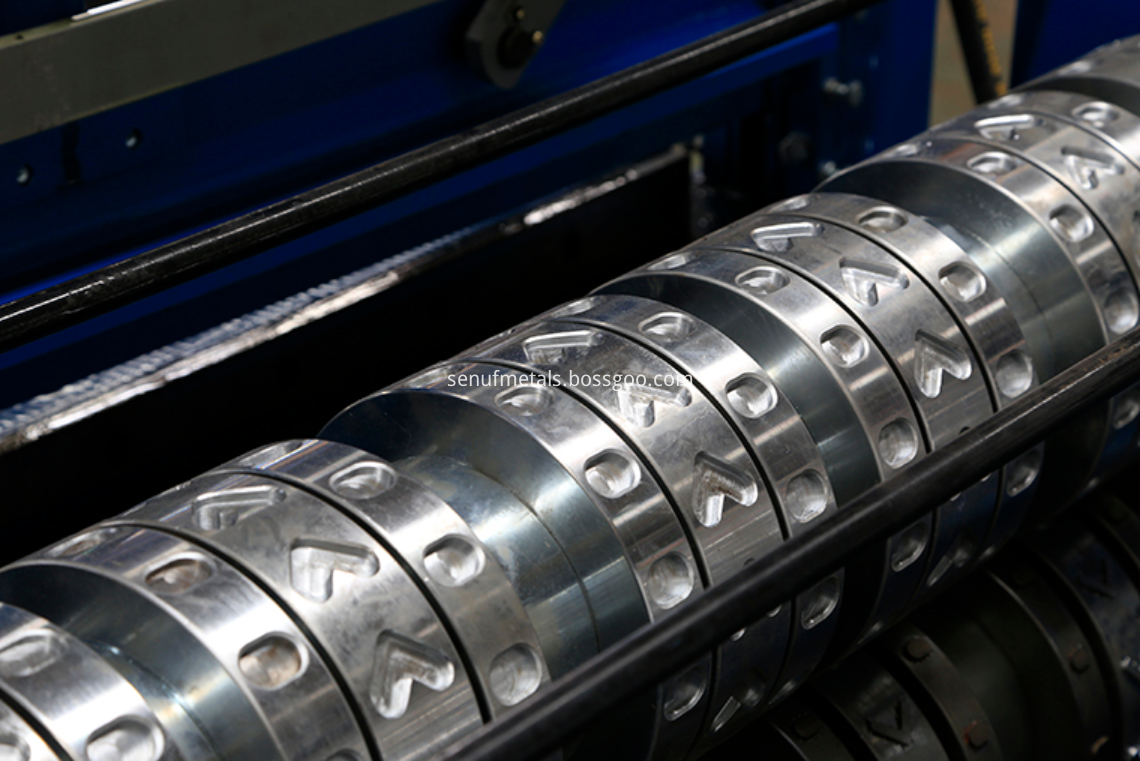

Decking floor rollers

3. SUF68-305-610 Metal floor covering deck tile forming machine post-cutter

Made by high quality mold steel Cr12 with heat treatment,

Cutter frame made from high quality 20mm steel plate by welding,

Hydraulic motor: 5.5kw, Hydraulic pressure range: 0-16Mpa

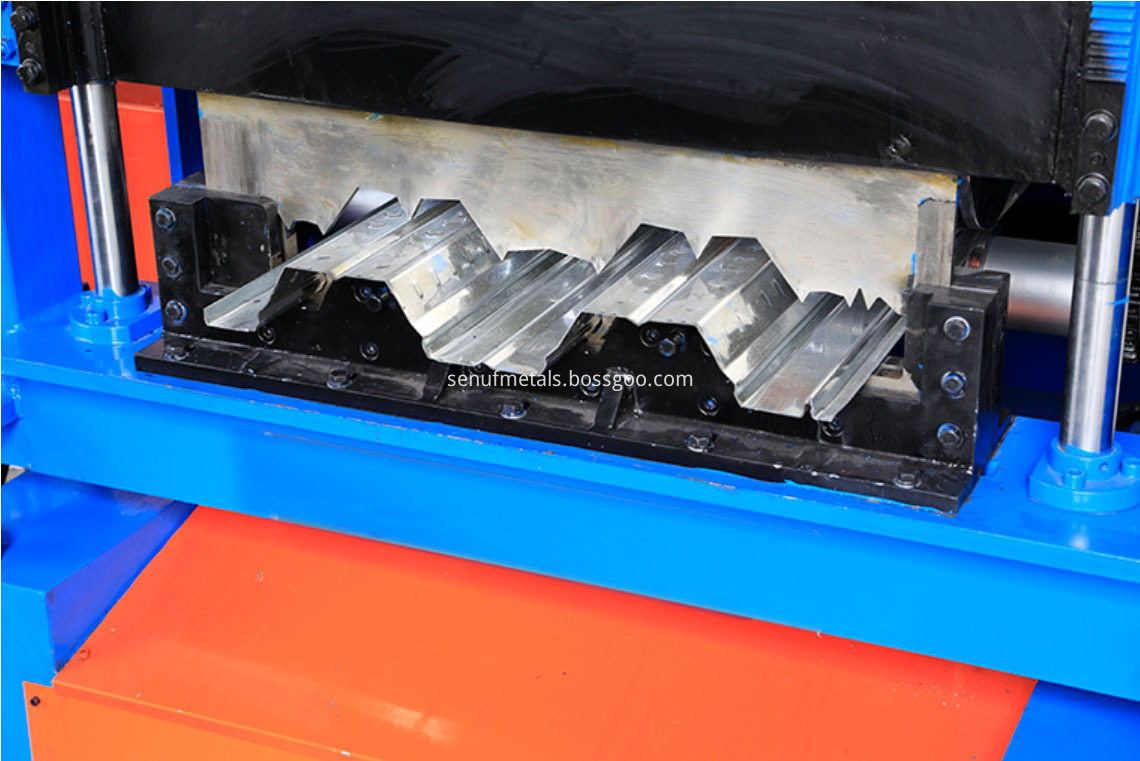

Decking floor cutting

4. SUF68-305-610 Floor Covering Deck Forming Machine product sample

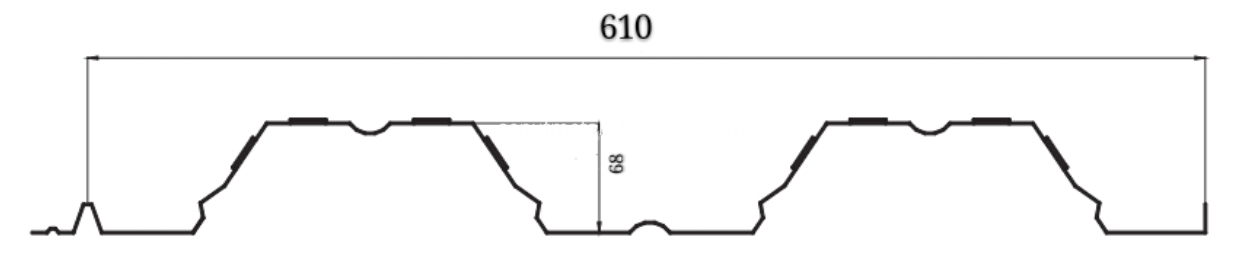

Decking floor drawing

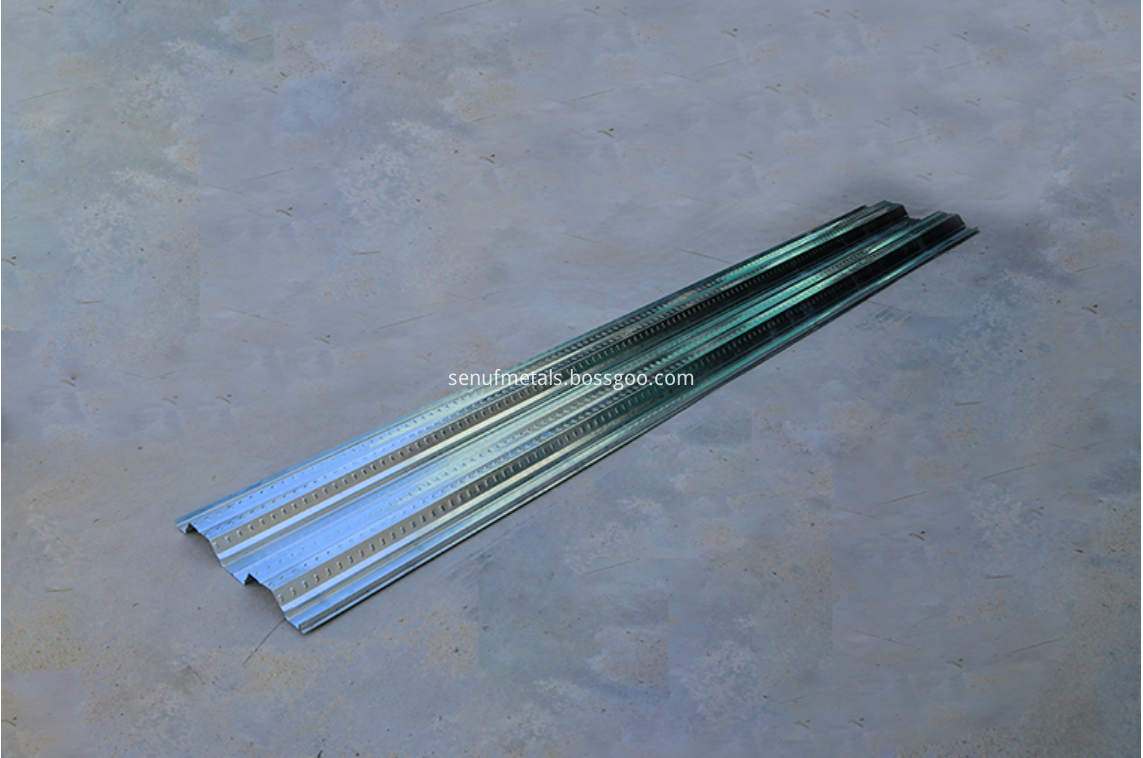

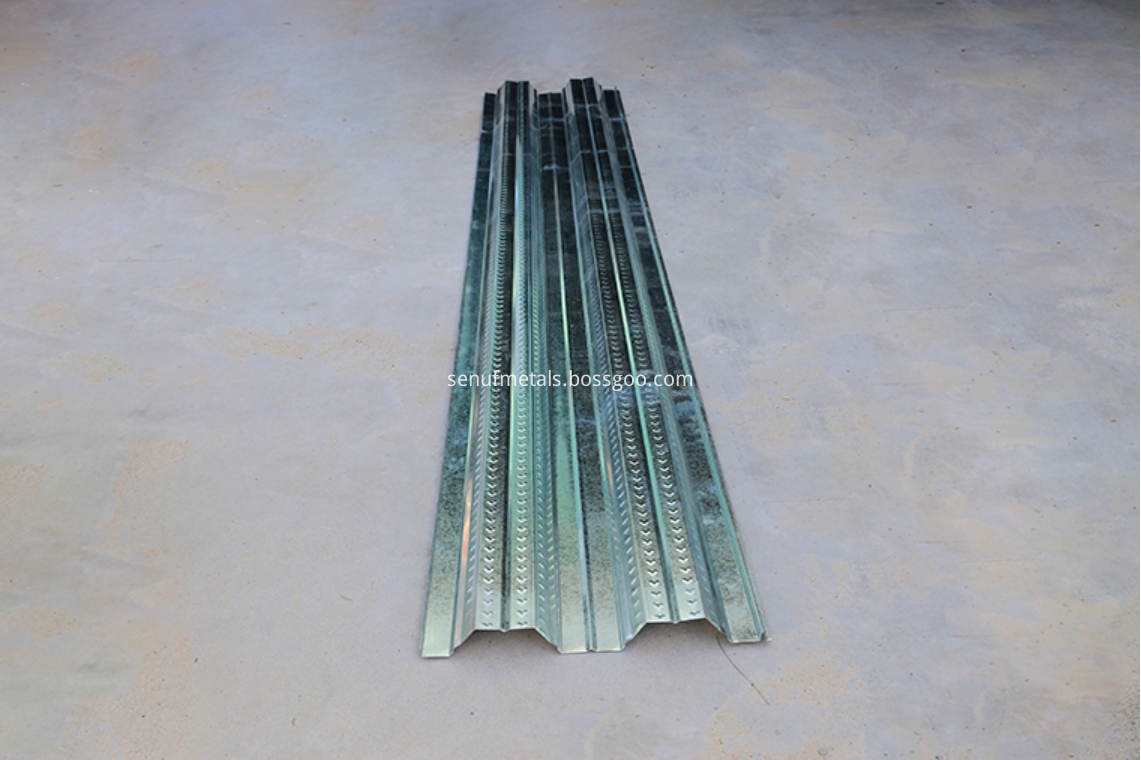

Decking floor samples 1

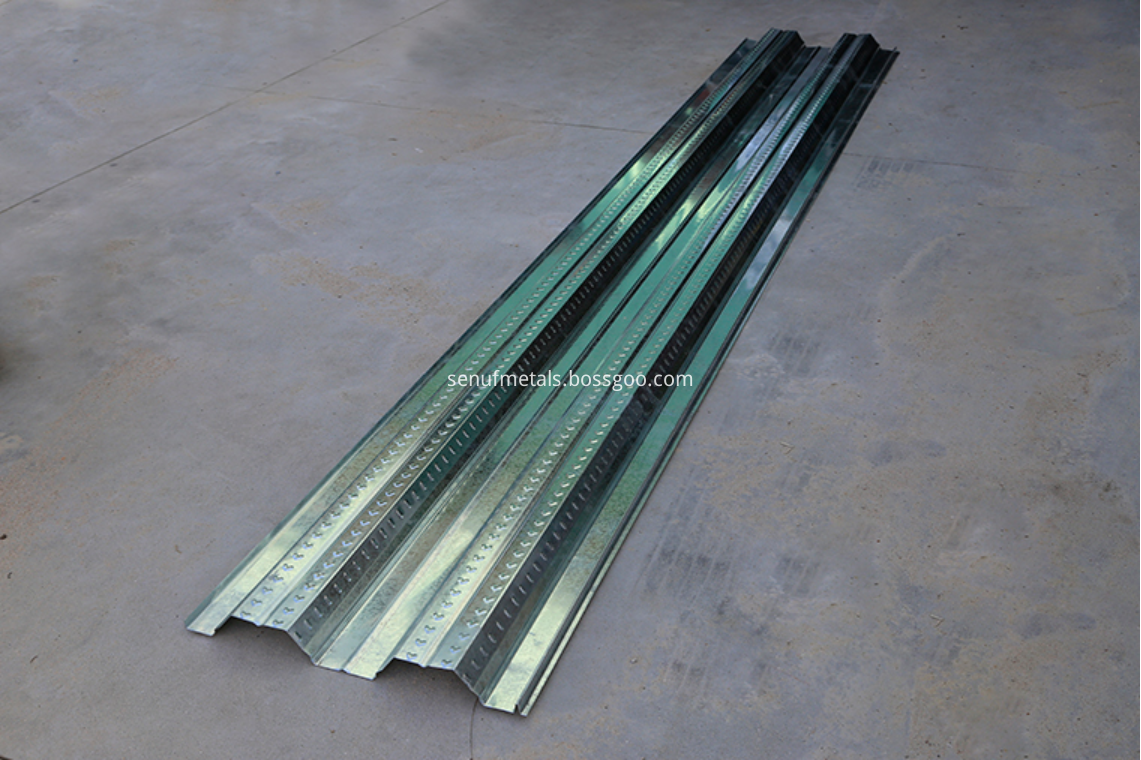

Decking floor samples 2

Decking floor samples 3

5. SUF68-305-610 Metal Floor Forming Machine decoiler

Manual decoiler: one set

Un-powered, manually control steel coil inner bore shrinkage and stop

Max feeding width: 1200mm, coil ID range 508±30mm

Capacity: 5-9 ton

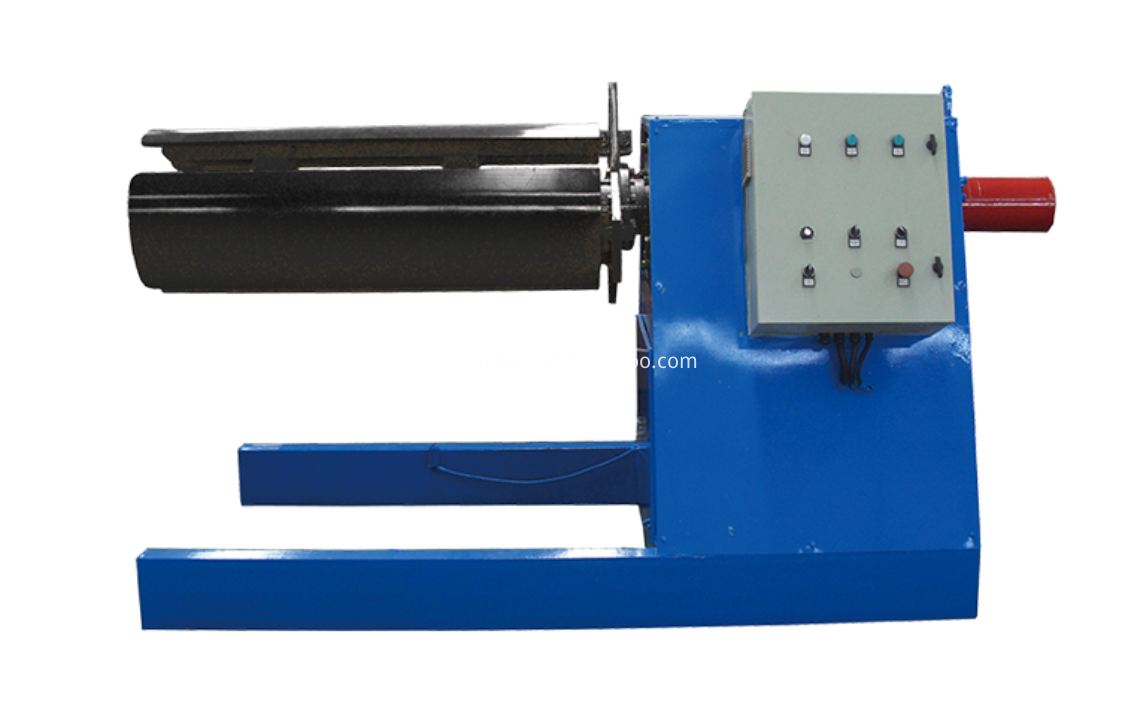

Manual decoiler

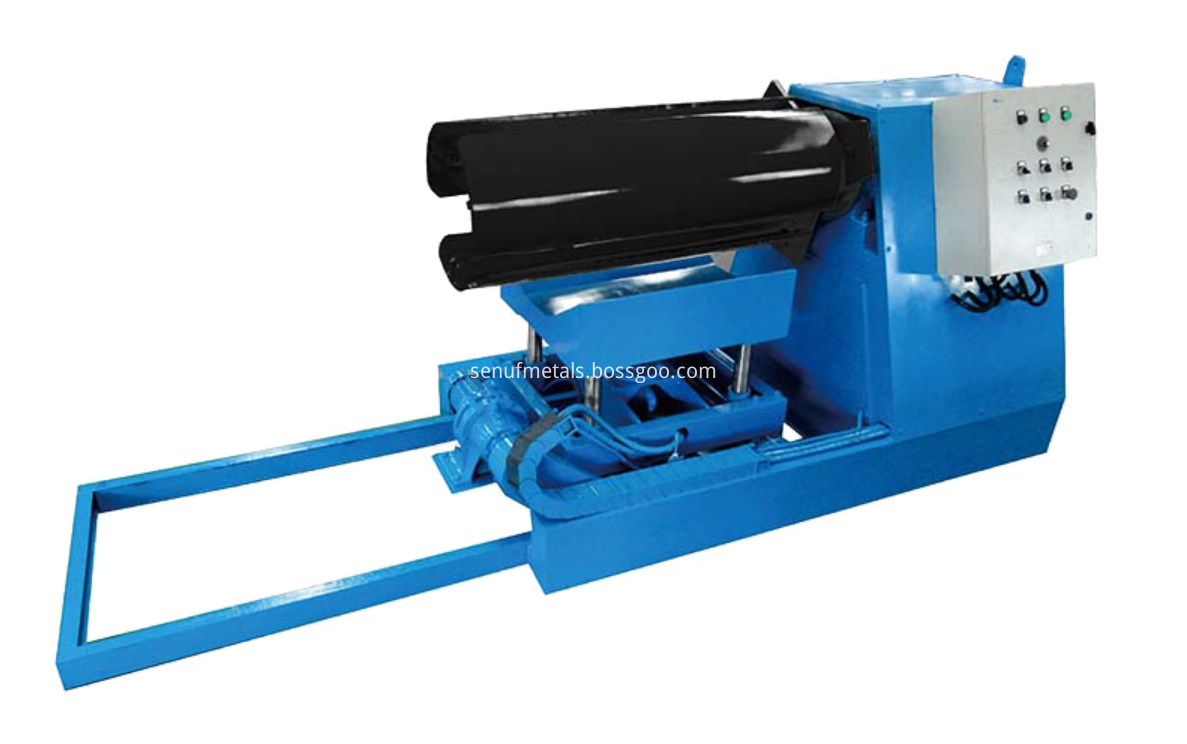

5 tons hydraulic decoiler

5 tons hydraulic decoiler with trolley

6. SUF68-305-610 Metal floor covering deck tile forming machine

Un-powered, one unit


Other detailes of SUF68-305-610 Metal Floor Deck Forming Machine

Suitable for material with thickness 0.8-1.5mm

Shaft manufactured from 45#, Main shaft diameter Φ90mm, precision machined

Motor driving, gear chain transmission, 22 steps to form,

Main motor 18.5kw, Frequency speed control, Forming speed approx 12-15m/min


PLC control system (Touch screen brand: German Schneider Electric/Taiwan WEINVIEW, Inverter brand: Taiwan Delta, Encoder brand: Omron)

Combined with: PLC, Inverter, TouchScreen, Encoder, etc,

Cut-to-length tolerance≤±2mm,

Control voltage: 24V

User's manual: English
