Light Steel Keel Stud Truss Curtain Track Bending

Basic Info

Model No.: SUF

Types of: Steel Frame &Amp; Purlin Machine

Applicable industry: Construction Works, Hotels

Out-of-warranty service: Video Technical Support

Where to provide local services (in which countries are there overseas service outlets): Ukraine, Chile, Spain, Philippines, Egypt

Showroom location (in which countries are there sample rooms overseas): Nigeria, Algeria, United Kingdom, United States, Egypt, Philippines, Spain

Video factory inspection: Provided

Mechanical test report: Provided

Marketing type: New Product 2019

Core component warranty period: 3 Years

Core components: Plc, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump

Old and new: New

place of origin: China

warranty period: 5 Years

Core selling point: Long Service Life

Shaft Diameter: 40mm

Control System: PLC

Thickness: 0.3-0.8mm

Certification: ISO9001

Customized: Customized

Condition: New

Control Type: Other

Automatic Grade: Automatic

Drive: Hydraulic

Shaft Material: 45# Forged Steel

Roller Stations: 10

Main Power: 4.0kw

Forming Speed: 0-40m/min

Driven: Gear Box

Hydraulic Station: 3.0kw

Additional Info

Packaging: Naked

Productivity: 500 sets

Brand: SUF

Transportation: Ocean,Land,Air,Express,by train

Place of Origin: Hebei

Supply Ability: 500 sets

Certificate: ISO / CE

HS Code: 84552210

Port: Tianjin,shanghai,shenzhen

Product Description

New Light Steel House Frame Keel Stud Truss Curtain Track Bending

(1 machine for multi-profiles, size-changing by spacers)

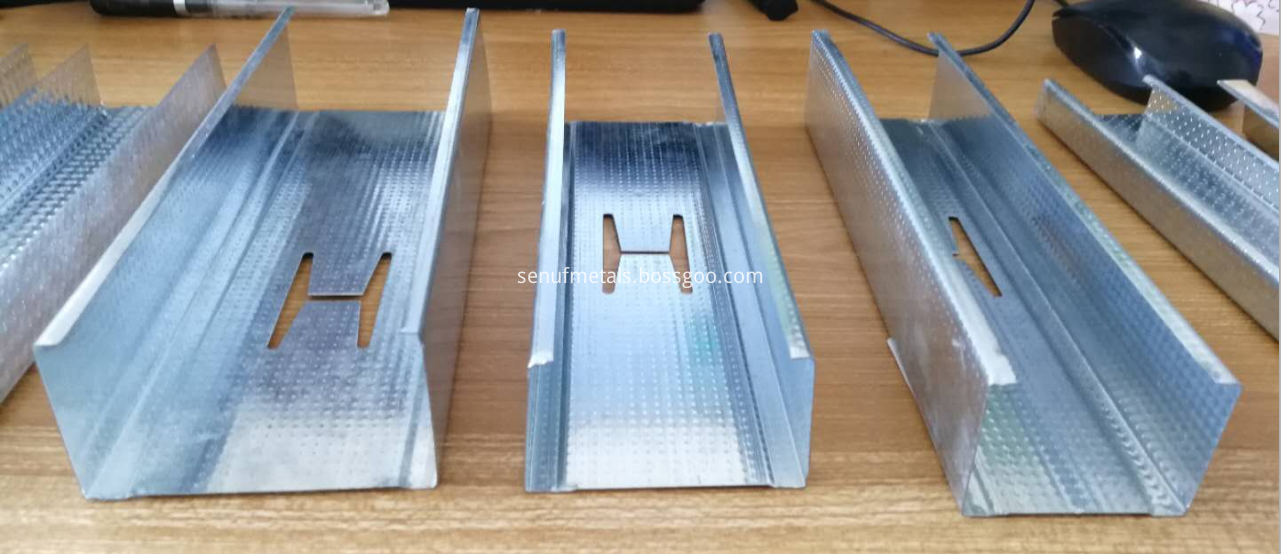

   New Light Steel House Frame Keel Stud Truss Curtain Track Bending is a strip of material, by continuous cold rolling molding, production of complex cross-section profiles(products: light steel keel, paint keel, cassette keel, a variety of architectural profiles, steel, steel-lined door profiles, high speed protection bar, etc) and different sizes of cold-formed, paint unit equipment, PLC control

The advantages of New Light Steel Roll Forming Machine are follows:

① The speed can reach 40-80m/min,

② Enlarged hydraulic station to ensure high speed working,

③ Easy operation, low maintenance cost,

④ Beautiful appearance,

⑤ One machine for multi-profiles, size-changing by spacer.

2. Detailed images of Truss Curtain Track Bending Roll Forming Machine

Machine Parts:

(1) Light Steel House Frame Keel Stud Machine

Brands: SUF, Original: China

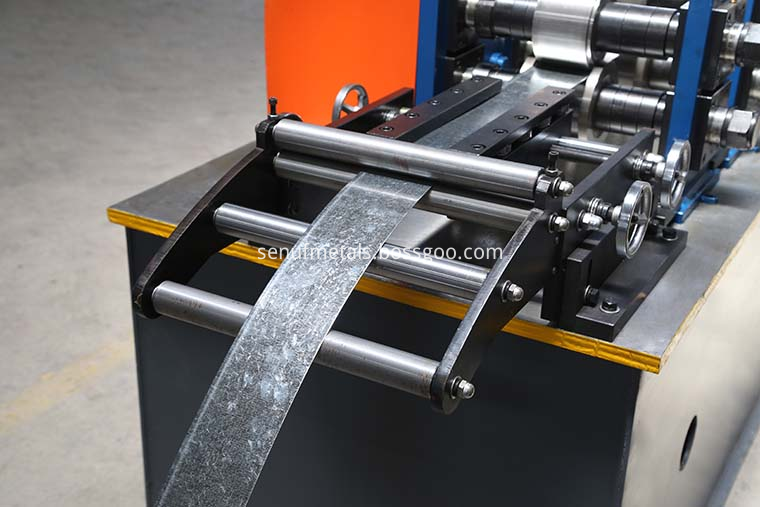

Feeding Guide (make feeding smooth and no wrinkling)

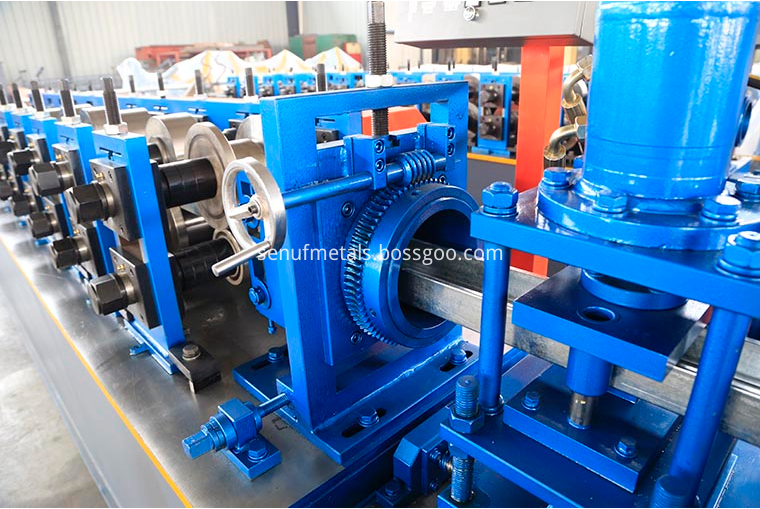

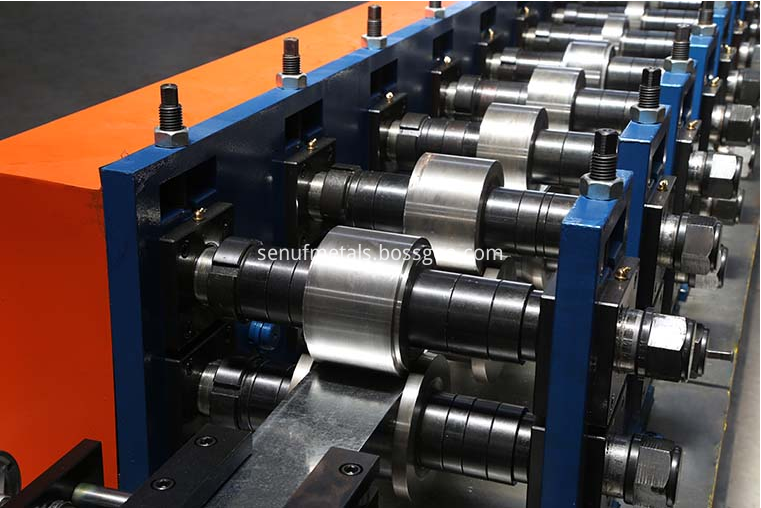

(2) New Light Steel House Frame Keel Stud Truss Curtain Track Bending

Rollers manufactures from hong life mold steel Cr12=D3 with heat treatment, CNC lathes,

Heat treatment (with black treatment or hard-chrome coating for options),

With feeding material guide, body frame made from 400# H type steel by welding.

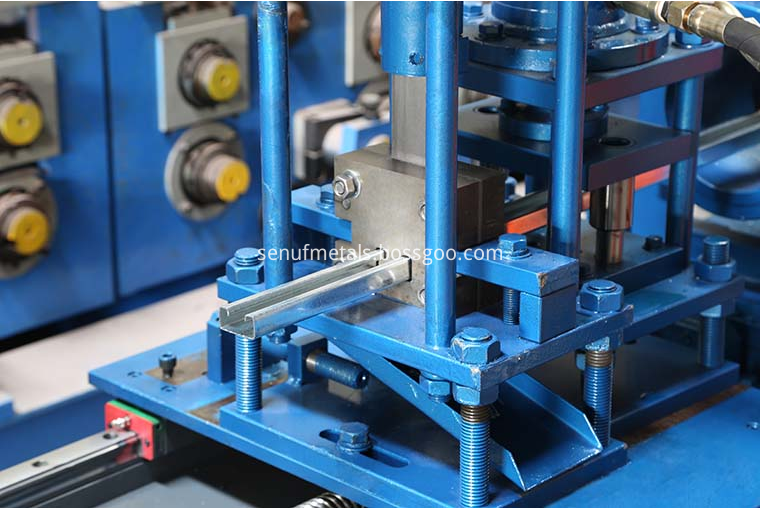

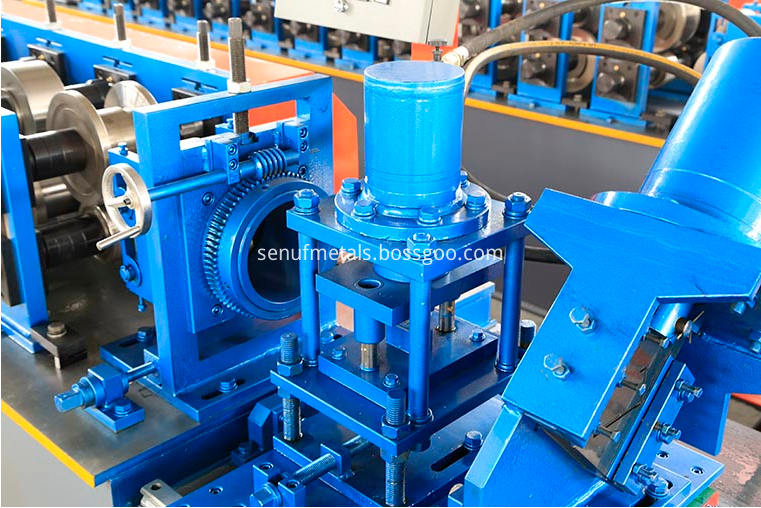

(3) New Light Steel Roll Forming Machine straighting and logo punching device

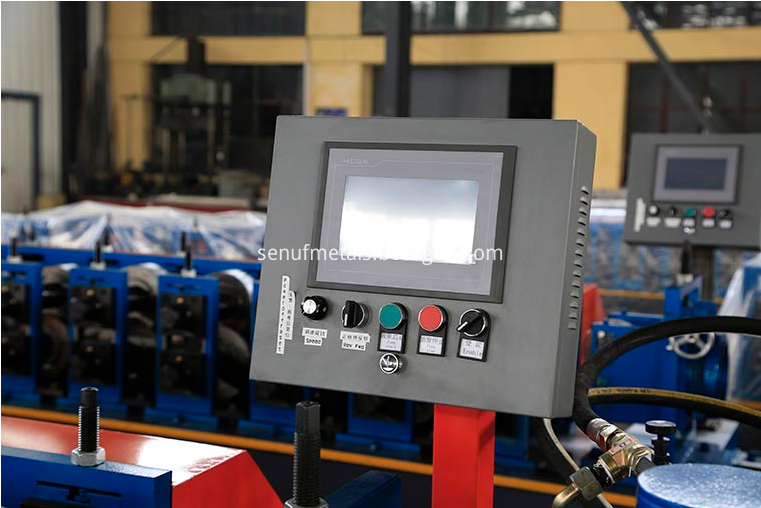

(4) Truss Curtain Track Bending Roll Forming Machine operation panel

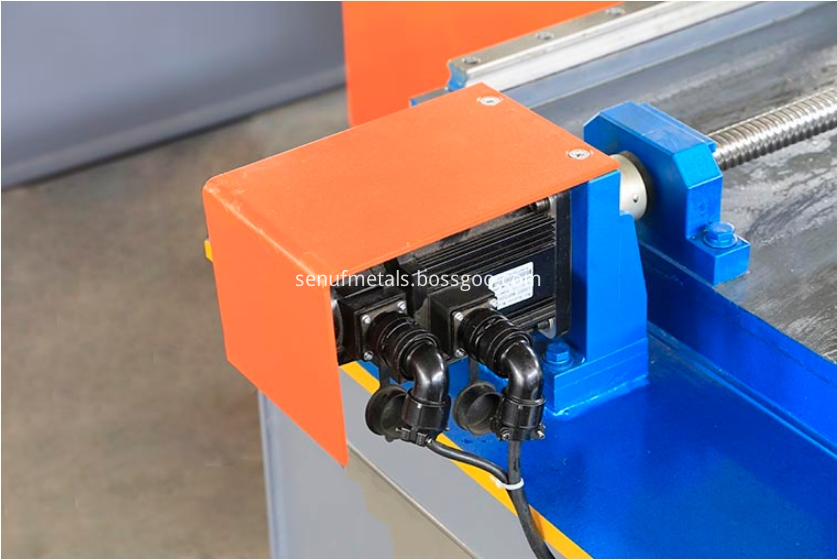

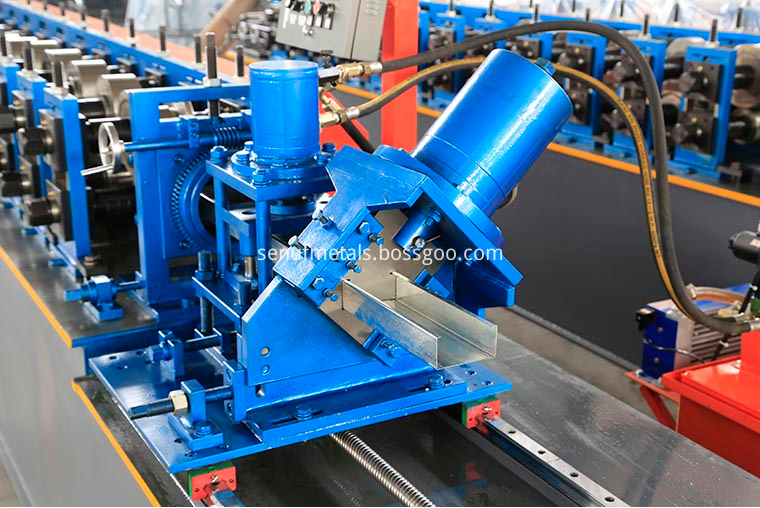

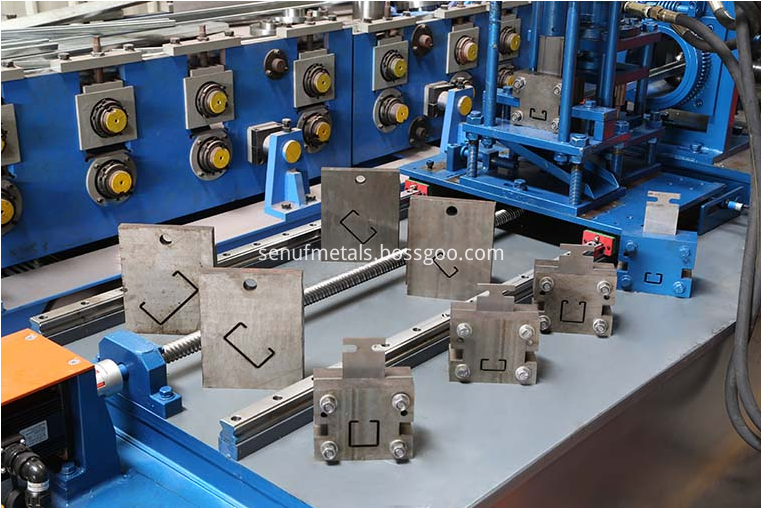

(5) Light Steel House Frame Keel Stud Machine servo track non-stop cutting

Made by high quality long life mold steel Cr12Mov with heat treatment,

Cutter frame made from high quality 30mm steel plate by welding,

Hydraulic motor: 5.5kw, Hydraulic pressure range: 0-16Mpa.

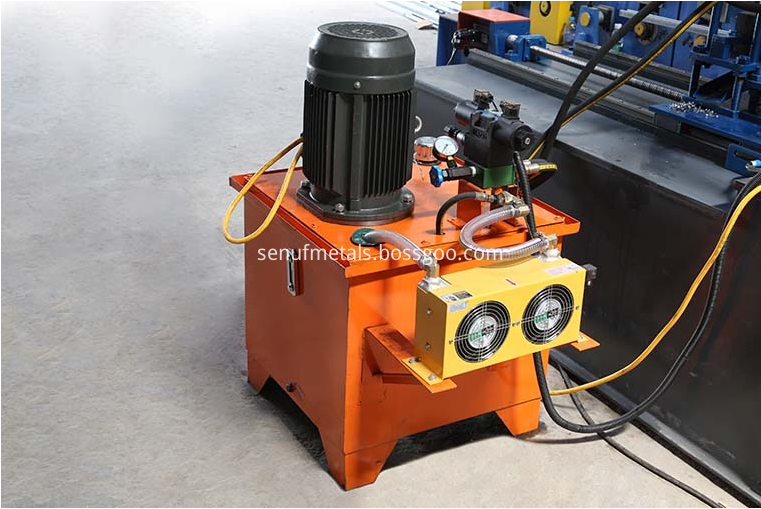

(6) Steel frame villa roll forming machine Hydraulic System

Englarged hydraulic station to ensure high speed working

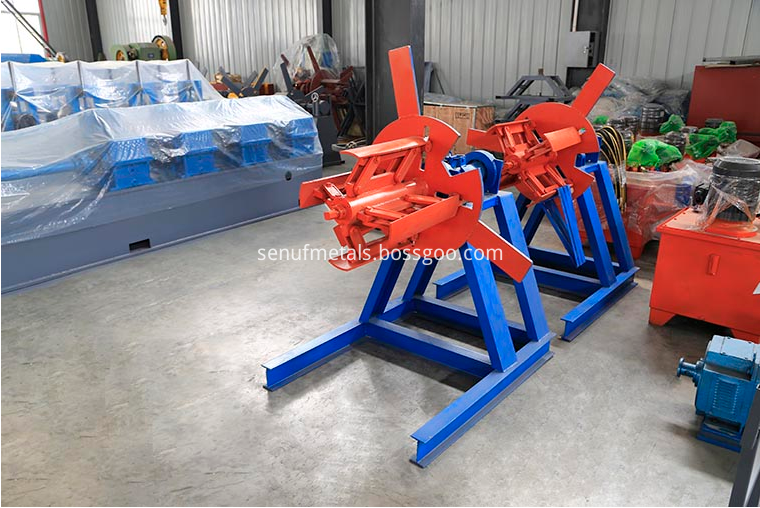

(7) Light gauge steel frame forming machine Decoiler

Manual Decoiler: one set

Un-powered, manually control steel coil inner bore shrinkage and stop,

Max feeding width: 500mm, Coil ID range: 508±30mm,

Capacity: Max 3 tons.

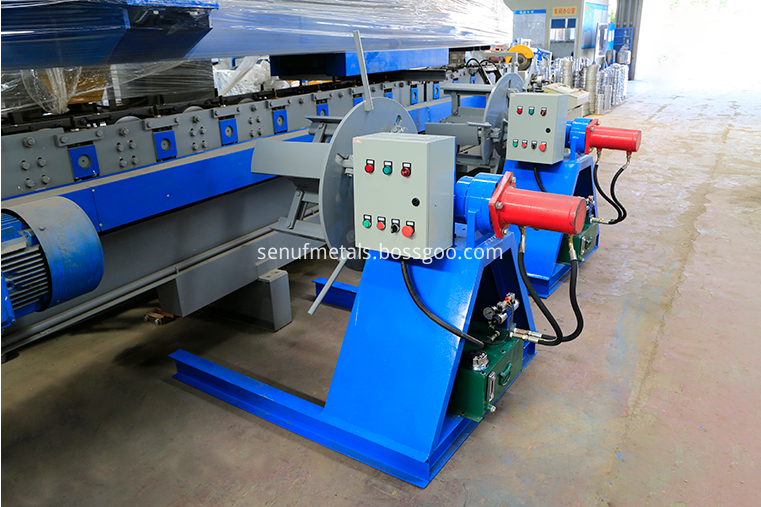

With 3 tons hydraulic decoiler for option

(8) Hat Furring Light Keel Forming Machine exit rack

Un-powered, 4 meters long, one set

Other detailes of Light gauge steel frame villa roll forming machine

Suitable for material with thickness 0.3-0.8mm,

Shafts manufactures from 45#, main shaft diameter 75mm, precision machined,

Motor driving, gear chain transmission, 12 rollers to form,

Main servo motor: 2.0kw, frequency speed control,

Forming speed: 40 / 80m/min as optional.
