Downspout drain Roll Forming Machine

Unit Price: USD 19000.0000 / Set/Sets
Min. Order: 1 Set/Sets

Basic Info


Model No.: SUF-drain downspout

Applicable industry: Hotels, Food &Amp; Beverage Factory, Construction Works

Out-of-warranty service: Video Technical Support

Where to provide local services (in which countries are there overseas service outlets): Egypt, Philippines, United Kingdom, United States, Saudi Arabia, Brazil

Showroom location (in which countries are there sample rooms overseas): Egypt, Philippines, Spain, Algeria, Nigeria

Video factory inspection: Provided

Mechanical test report: Provided

Marketing type: New Product 2020

Core component warranty period: 5 Years

Core components: Plc, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump

Old and new: New

species: Pipe Molding Machine

Pipe material: Carbon Steel

application: Drain Pipe

place of origin: China

warranty period: More Than 5 Years

Core selling point: High Safety Level

Motor Power: 7.5kw

Control System: PLC

Voltage: Customized

Application: Industry

Condition: New

Customized: Customized

Theory: Other

Type: Other

Thickness: 0.4-1.0mm

Forming Speed: 8-12m/min

Roller Stations: 14

Shaft Diameter And Material: 75mm, Material Is 45#

Driven: Gear Chain Transmission


Additional Info


Packaging: NAKED

Productivity: 500 SETS

Brand: SUF

Transportation: Ocean,Express,Air,Land,BY TRAIN

Place of Origin: CHINA

Supply Ability: 500 SETS

Certificate: ISO 9001 / CE

HS Code: 84552210

Port: XIAMEN,TIANJIN,SHANGHAI


Product Description

Downspout drain Roll Forming Machine

   Downspout drain Roll Forming Machine is the special equipment for continuous rolling and cold-forming on steel sheet. Steel Pipe Rolling Machine adopts coiling steel sheet as the raw material, decoiling, continuous rolling and cold-forming, automatically cut to the size and specification which is required, and output the finished panels. Corrugated Roof Sheet Forming Machine adopts PLC control, AC frequency and adjusting the speed technology, and it realizes the continuous automatically production, therefore, it is really a new type of energy-saving and high-effective producing equipment for steel structure.

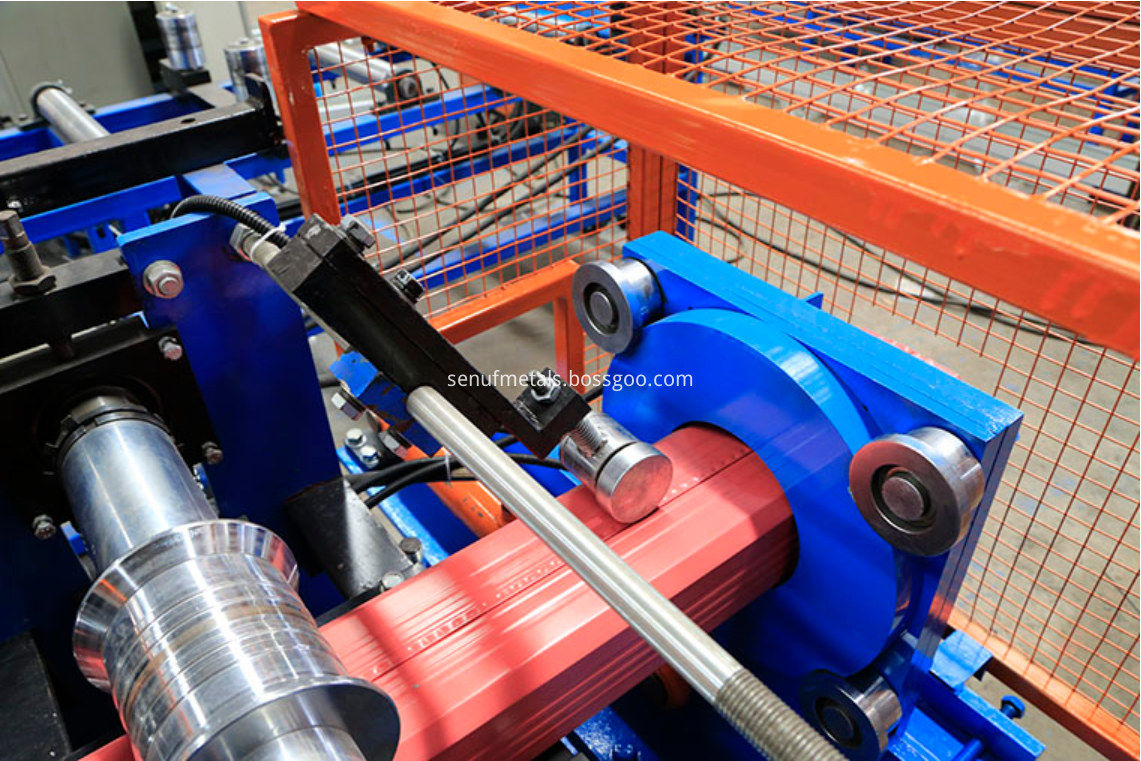

Downspout pipe forming machine 1

Downspour pipe forming machine 2

Main features of Downspout Pipe Roll Forming Machine

In order to offer a complete gutter system --- and do it all "in-house" --- you need Downspout Pipe Forming Machine has following advantages:

1. Make both downspout pipe and elbows(with bending device for engineering convenience)

2. With square type downspout pipe nd round type downspout pipe for optional

3. Easy operation, low maintenance cost

4. Stable and efficient


Detailed Images of Steel pipe rolling machine

Machine Parts

1. Downspout Pipe Roll Forming Machine tooth shape making device

Brand: SUF, Original: China

Downspout tooth shape making device 1

Downspout tooth shape making device 2

2. Downspout Pipe Roll Forming Machine rollers

Rollers manufactured from high quality steel 45#, CNC lathes, Hard-Chrome Coating for options.

With feeding material guide, body frame ade by 450H type steel by welding

Downspout pipe forming machine rollers 1

Downspout pipe forming machine roller 2

Downspout pipe forming machine rollers 3

3. Downspout Pipe Roll Forming Machine cutter

Made by high quality mold steel Cr12 with eat treatment,

Cutter frame made by high quality 20mm steel plate by welding

Hydraulic motor: 4kw, hydraulic pressure range: 0-16Mpa

Downspout pipe forming machine cutter

4.  Downspout pipe Downspout Pipe Roll Forming Machine bender

Downspout pipe forming machine bender

5. Downspout Pipe Roll Forming Machine samples

Downspout pipe sample 1 Downspout pipe sample 2 Downspout pipe sample 3

6. Downspout Pipe Roll Forming Machine PLC control system

PLC control system (Touch screen brand: German Schneider Electric/Taiwan WEINVIEW, Inverter brand: Finlan VOCAN/Taiwan Delta/Alpha, Encoder brand: Omron)

Downspout pipe PLC control system 1

Downspout pipe PLC control system 2

Downspout pipe PLC control system 3

7. Downspout Pipe Roll Forming Machine Decoiler

Manual decoiler: one set

Un-powered, manually control steel coil inner bore Shrinkage nd stop

Max. feeding width: 500mm, coil ID range 508±30mm

Capacity: Max 3 ton

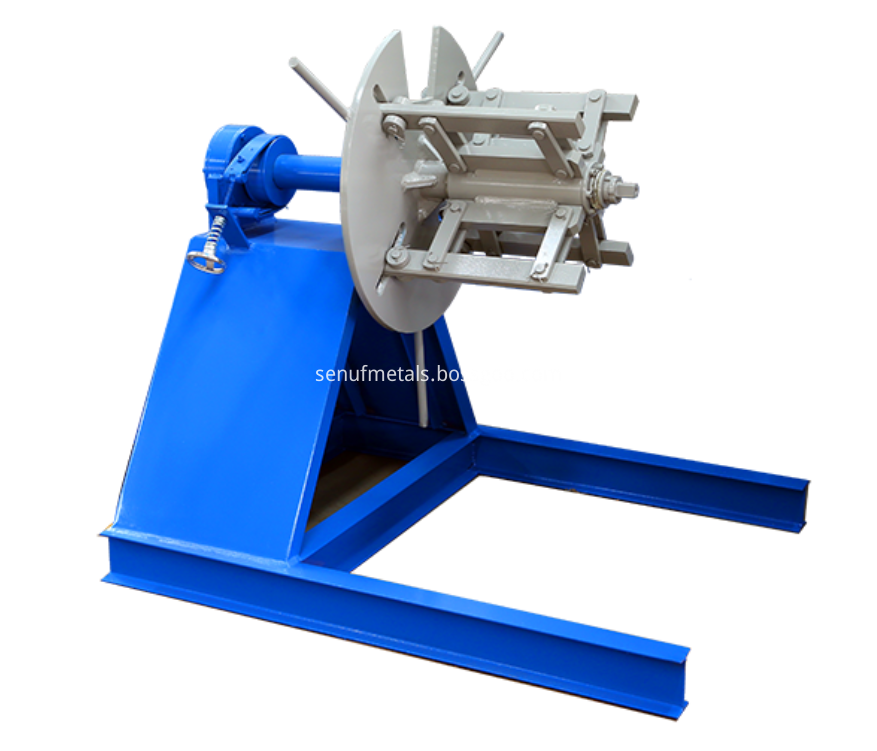

Downspout pipe forming 3 tons manaual decoiler

With 3 tons hydraulic decoiler for option

Downspout pipe forming 3 tons hydraulic decoiler

6. Downspout Pipe Roll Forming Machine exit rack

Un-powered, one unit

Downspout pipe forming exit rack
