    feeding thread rolling machine knurling spline machine

    Unit Price: USD 5000.0000 / Set/Sets
    Min. Order: 1 Set/Sets
    Contact Now

    Basic Info


    Model No.: SF094

    Warranty: 1 Year

    Bolt Die Type: BSPT

    Bolt Die Material: Tool Steel

    Bolt Die Size: 5"-6"

    Model: 4 inch

    Type: Light

    Voltage: 3-380V 50Hz

    After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training

    Dimension: 1600*1500*1600mm

    Production Capacity: 4-25(pcs/min)

    Power(W): 4042W

    Weight: 1270KG

    Color: White Or Customised

    Dimension(L*W*H): 1600*1500*1600mm

    Application: Connectors, Bicycles, Auto Parts


    Additional Info


    Packaging: plywood pakage, plastic film

    Productivity: 500pcs per year

    Brand: senuf

    Transportation: Ocean,Land,Air,Express

    Place of Origin: tianjin

    Supply Ability: 80 sets one month

    Certificate: iso

    HS Code: 84633000

    Port: Tianjin,Xiamen,Shanghai


    Product Description



    Thread rolling machine

    This model is widely praised for its rational price, easy maintenance and high quality. besides axial and radial process, it is used to process regular and irregular bolt, through screw etc. with optional embossing roller embossing roller. the through screw made with this machine in hebei standard parts base has been exported to US Canada and Europe.

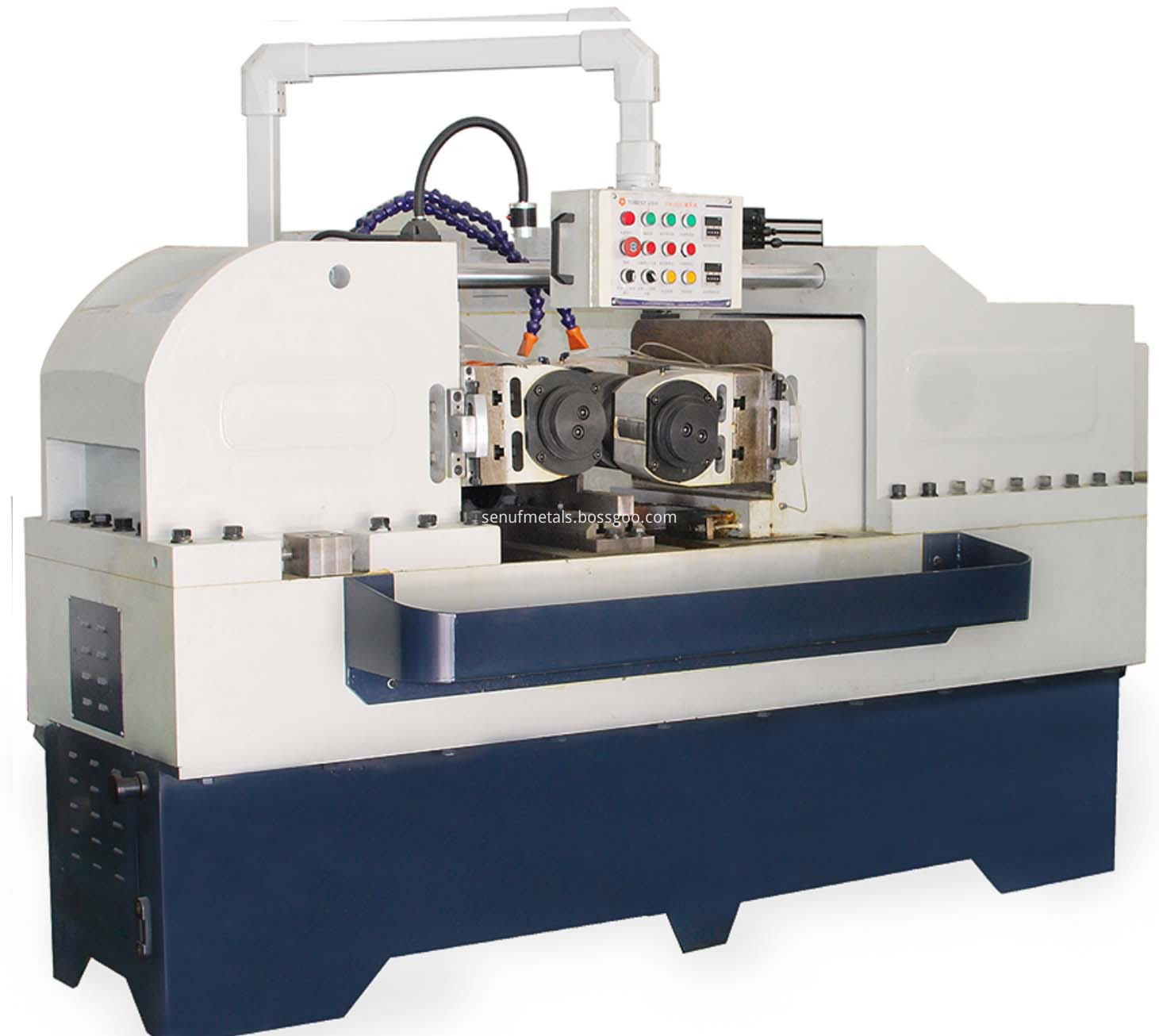

    thread rolling machine (1)

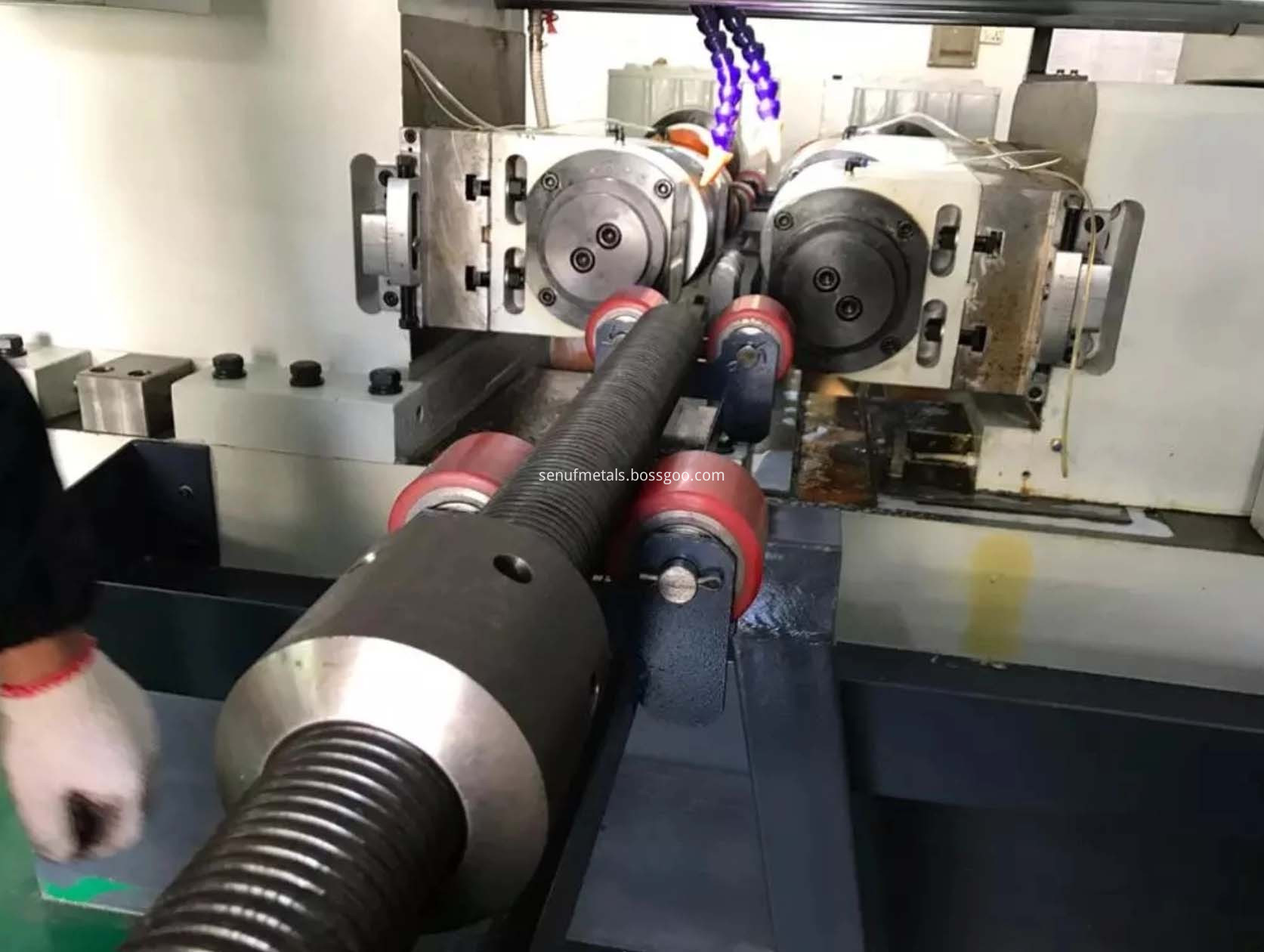

    thread rolling machine (2)

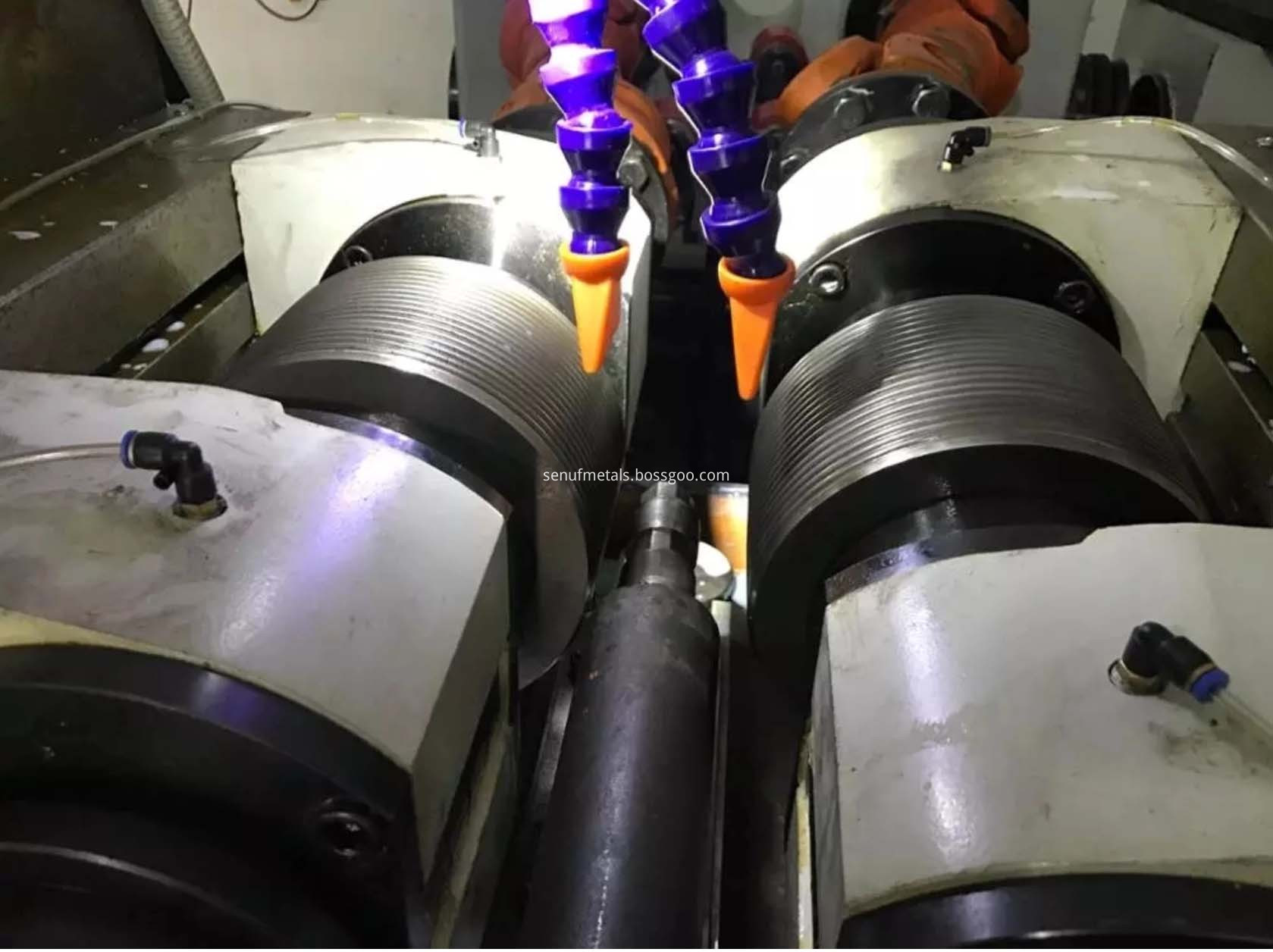

    thread rolling machine (3)

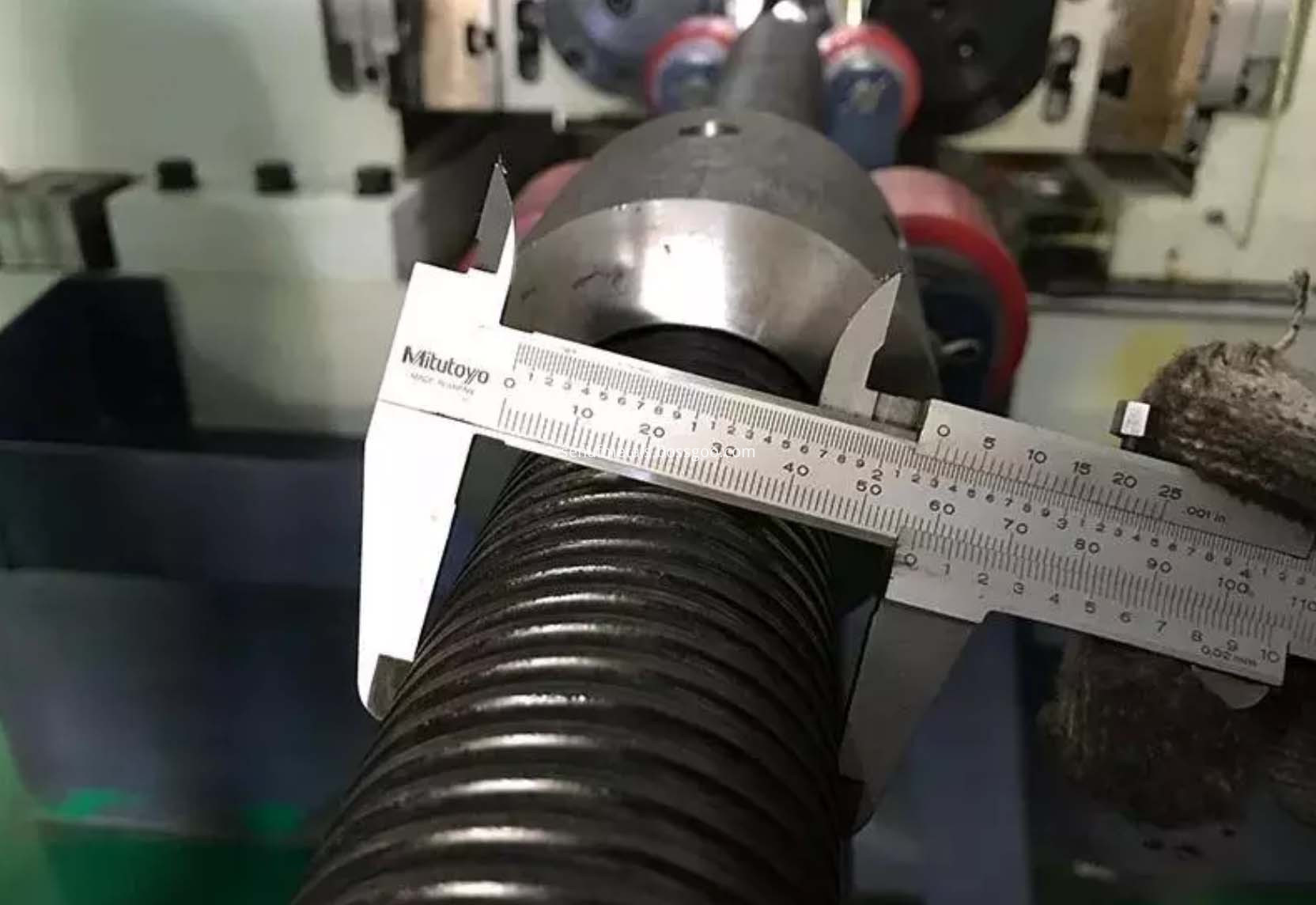

    thread rolling machine (4)

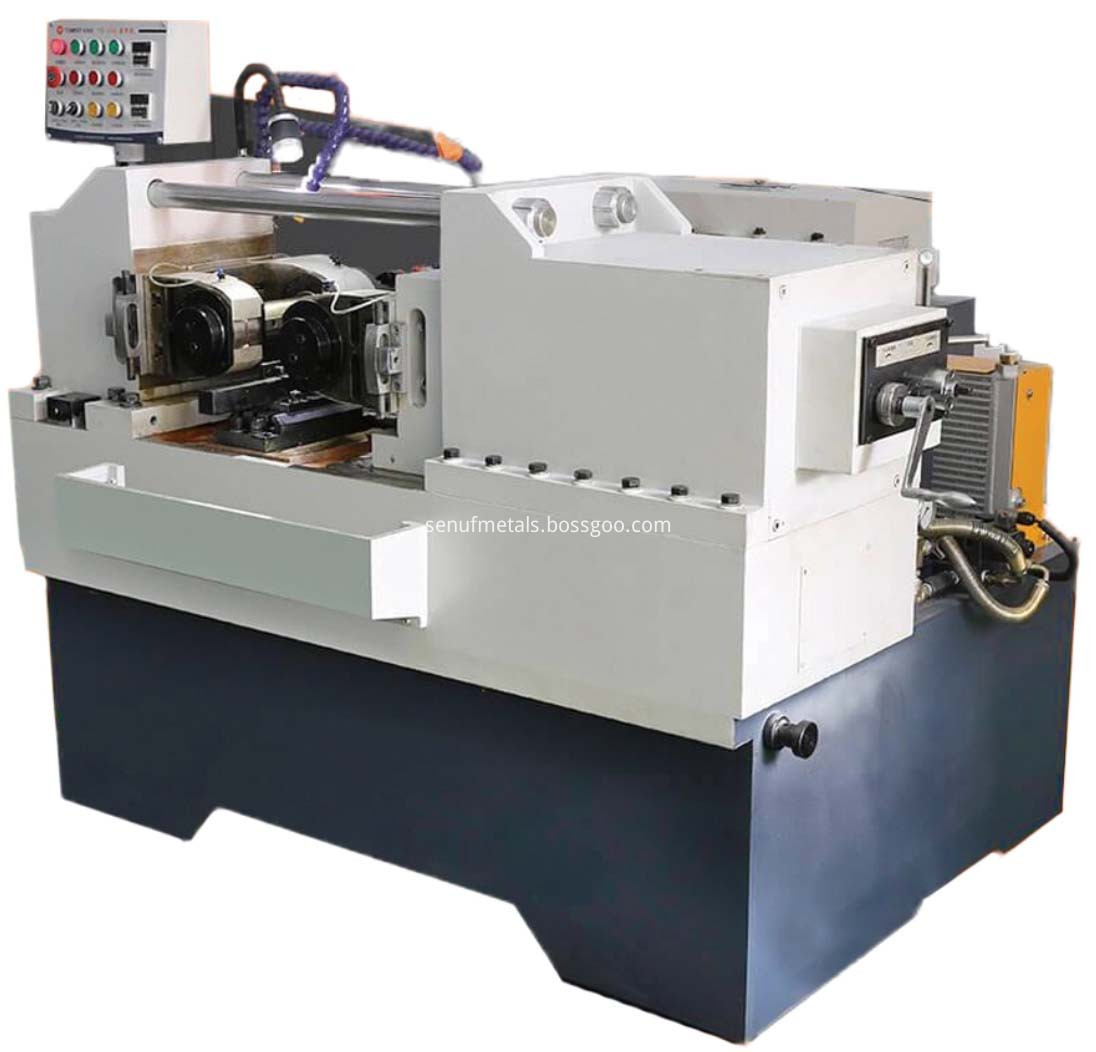

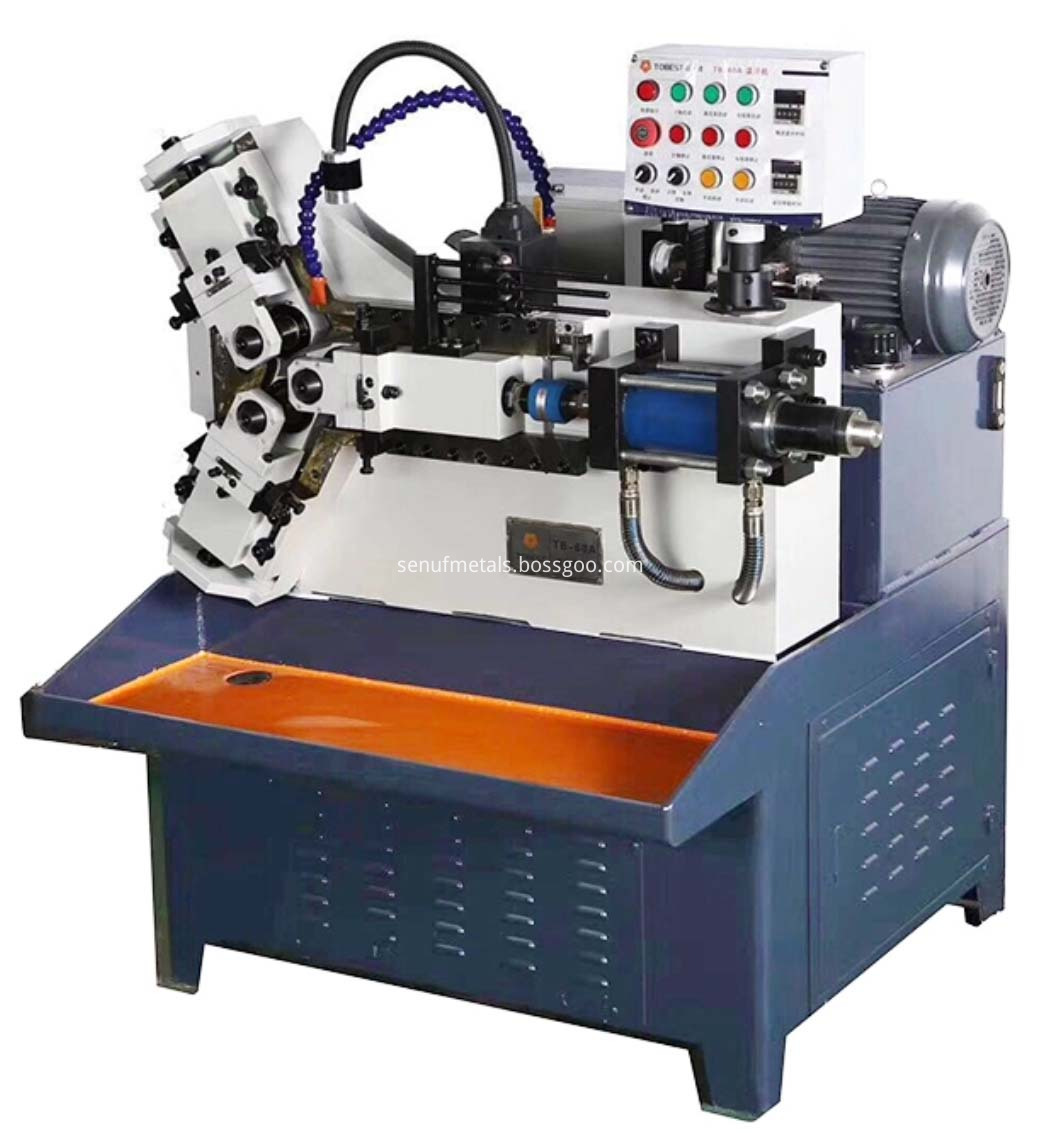

    thread rolling machine (5)thread rolling machine (6)



    Specification:

    Pressure of roller max: 150KN Rotary speed of main shaft: 36,47,60,78(r/min)
    Working dia: 4-48mm Feed speed of movable shaft: 5mm/s
    OD of roller: 120-170mm Thread length:  no limits
    BD of roller: 54mm Main power: 4kw
    Roller width max: 100mm Hydraulic power: 2.2kw
    Dip angle of main shaft: +-5degree Weight:    1700kg
    Center distance of main shaft( stroke): 120-240mm Size: 1500*1380*1140mm



    Contact info: WhtasApp: +8615716889085

    Whatsapp


    Thread Rolling Machine Knurling Spline Machine Axial Feeding Thread Rolling Machine
