Roof tile roll forming machine double layer steel

Payment Type: L/C,T/T,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,CIP
Min. Order: 1 Set/Sets
Delivery Time: 45 Days

Basic Info


Model No.: SUF

Tile Type: Colored Steel

Certification: CE, ISO

Condition: New

Customized: Customized

Usage: Roof

Transmission Method: Hydraulic Pressure

Thickness: 0.3-0.8mm

Roll Station: 18 Stations Down Layer And Upper 16

Roller Material: 45# Chrome

Shaft Diameter And Material: ¢70mm, Material Is 445#

Frame Thickness: 25mm

Forming Speed: 8-22m/min

Voltage: Customized


Additional Info


Packaging: NAKED

Productivity: 500 SETS

Brand: SUF

Transportation: Ocean

Place of Origin: CHINA

Supply Ability: 500 SETS

Certificate: ISO 9001 / CE

HS Code: 84552210

Port: XIAMEN,TIANJIN


Product Description

Roof tile roll forming machine double layer steel

   The roof panel tile made by SRoof panel roll forming machine and Corrugated Metal Steel Tile Sheet Machine can be widely used in Industrial and civil buildings, warehouse, special construction, large span steel structure house as the roof, walls or interior and exterior decoration. Its thickness is from 0.3mm to 0.8mm, width can be 914mm, 1000mm, 1200mm, 1220mm, 1250mm. This is the common and standard sizes. You can also give your requests about the sizes , we can make and design the machine as per your special requests on sizes.

Double layer 1

Double layer

The following Double layer steel roof panel machine:

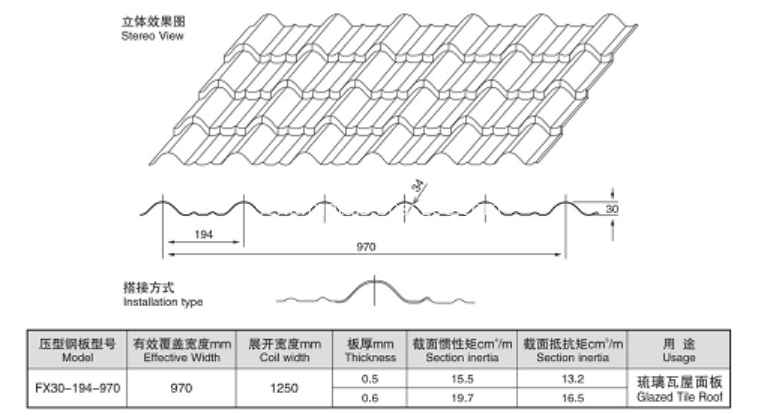

Glazed tile:

drawing

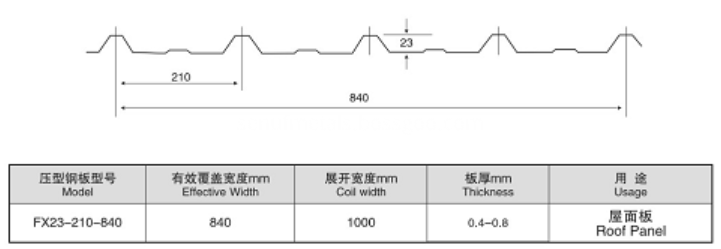

IBR tile:

drawing (2)

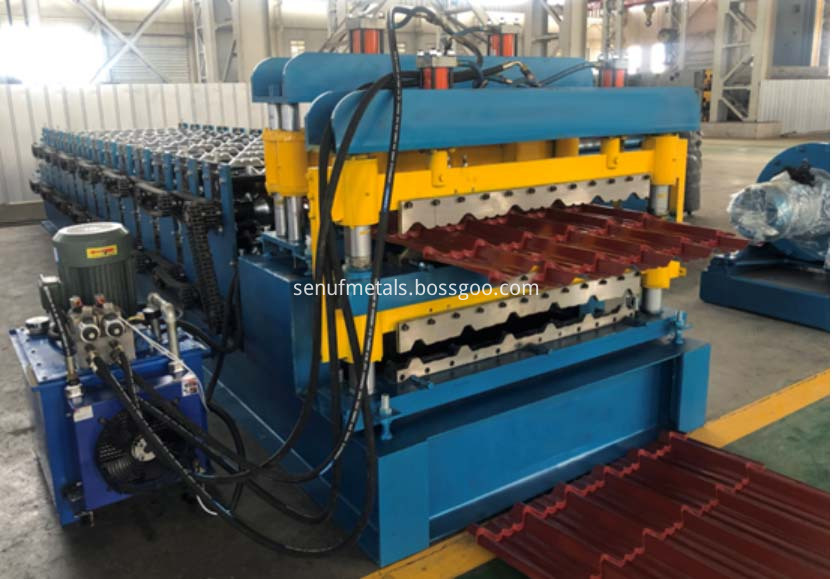

Roof panel tile roll forming machine

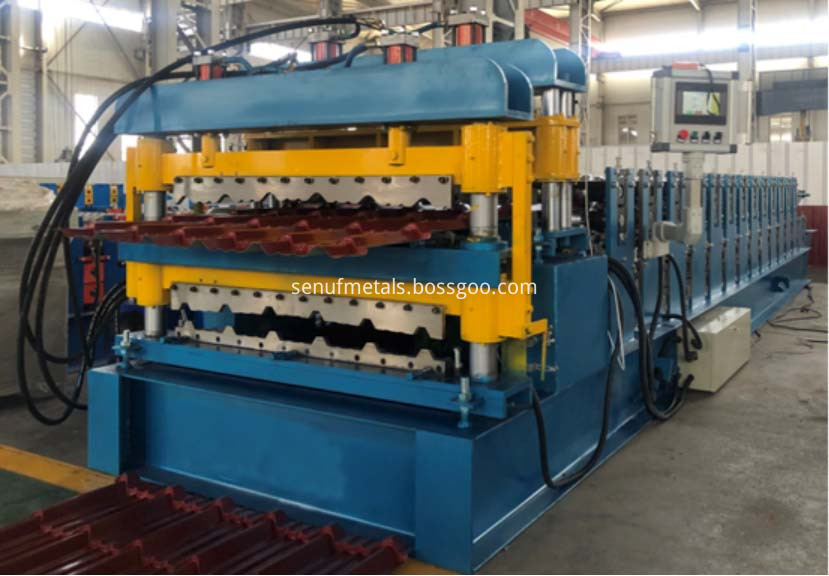

Double layer roof sheet forming machine pre-cut

double layer forming machine (4)

1. Material of the profile: GI or color steel

2. Thickness range: 0.3-0.8mm

3. Main motor power:7.5kw, AC motor, motor inside of main machine (Brand:Guomao of China) (according the final design)

4. Machine Voltage, Frequency, Phase: 380V/50Hz/3Phase or customized

5. Roll station: about 18 stations down layer and upper roller stations 16

6. Roller material: 45# steel with chromed

7. Shaft diameter: ¢70mm material: 45# steel with quenching and tempering

8. Machine roll forming speed: 15m/min

9. Transmission: by chain, one inch, single line

10. Roll former has leveling bolts in the base for adjust the leveling

11. Machine base frame adopt H beam welding steel

12. In the main Roll Forming Machine have 2 buttons for emergency stop if happen any malfunction.

13. Machine adopts new station to make machine more strong

14. To avoid accidents, all of drive part adopt protect cover

15. Color of machine: Blue and yellow (or base on customer request)

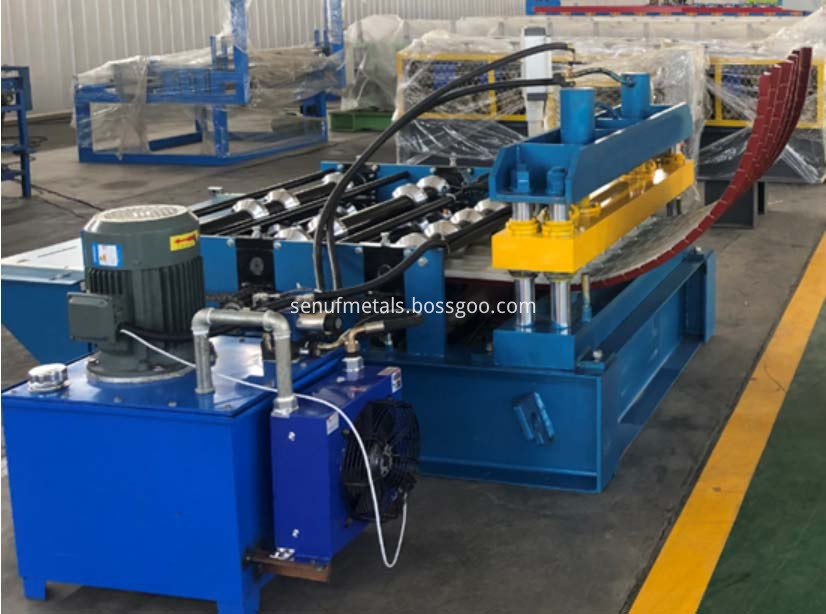

Meanwhile the customer also ordered the hydraulic Curving Machine using together with the double layer machine

Double layer curving
