Gear box roof sheet roll forming machine

Payment Type: L/C,T/T,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,CIP
Min. Order: 1 Set/Sets
Delivery Time: 30 Days

Basic Info


Model No.: SENUF --RF--001

Tile Type: Colored Steel

Certification: ISO

Condition: New

Customized: Customized

Usage: Roof, Wall, Floor

Transmission Method: Machinery

RAW MATERIALS: Galvanized Coils, Pre-painted Coils, Aluminum Coils

Material Thickness Range: 0.35-0.8mm

Rollers: 21 Rows(according To Drawings)

Material Of Rollers: 45# Steel With Chromed

Controlling System: PLC

Voltage: 380V/3Phase/50Hz (customized)


Additional Info


Packaging: Naked

Productivity: 500 sets / year

Brand: SUF

Transportation: Ocean

Place of Origin: China

Supply Ability: 500 sets / year

Certificate: ISO / CE

HS Code: 84552210

Port: Tianjin


Product Description

Gear Box  Roof Sheet Roll Forming Machine

      We are among the leading names in industry, engaged in Producing an exclusive range of Gear Box  Roof Sheet Roll Forming Machine. We have developed High speed  Roof Sheet Roll Forming Machine as per the industry standards. Owing to Gear box Roll Forming Machine easy manufacturing process, excellent performance and effective solutions, Metal High quality  Roof Sheet Roll Forming Machines are widely appreciated.


Components

5 Tons Hydraulic Decoiler

Leveling

Main Roll Forming

Hydraulic station

PLC Control system

Hydraulic cutting

Receving table


Technical parameters:

1. Raw materials: Galvanized coils, Pre-painted coils, Aluminum coils

2. Material thickness range: 0.35-0.8mm

3. Forming speed: 10-15m/min

4. Rollers: 16-20 rows(according to drawings)

5. Material of rollers: 45# steel with chromed

6. Shaft material and diameter: 75mm, material is 45#steel

7. Material of body: 400H steel

8. Wall panel: 20mm Q195 steel(all with electrostatic spraying)

9. Controlling system: PLC

10. Main power: 7.5KW

11. Material of cutting blade: Cr12 mould steel with quenched treatment

12. Voltage: 380V/3Phase/50Hz (customized)

13. Total weight: about 4 tons


5 Tons Hydraulic Decoilers:

Inner Diameter: 450-600mm

Outer Diameter: 1500mm

Coil Width: 1300mm

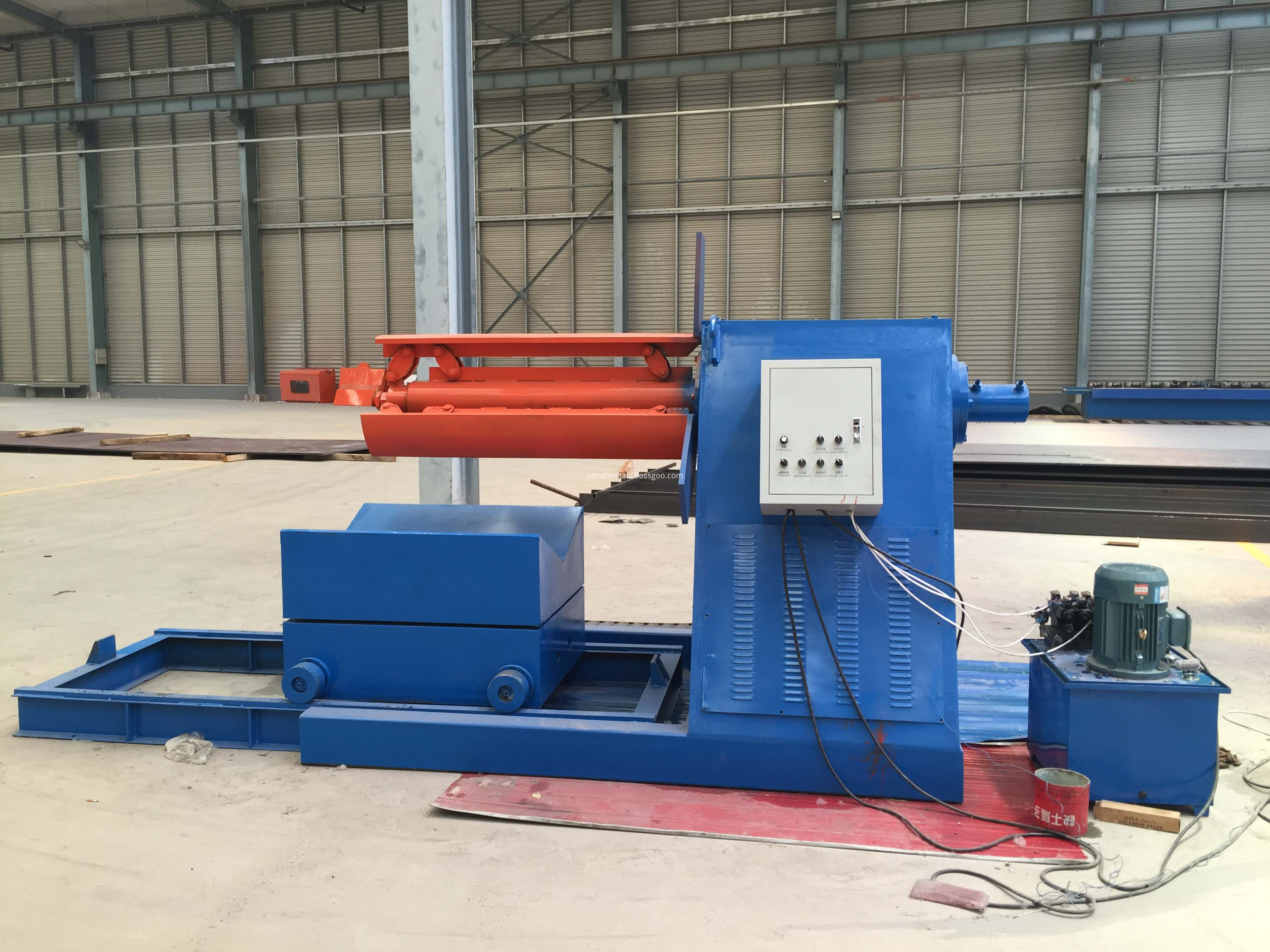

5 tons hydraulic decoiler


Leveling:

Keep materials straight, and the width can be adjusted by manual.

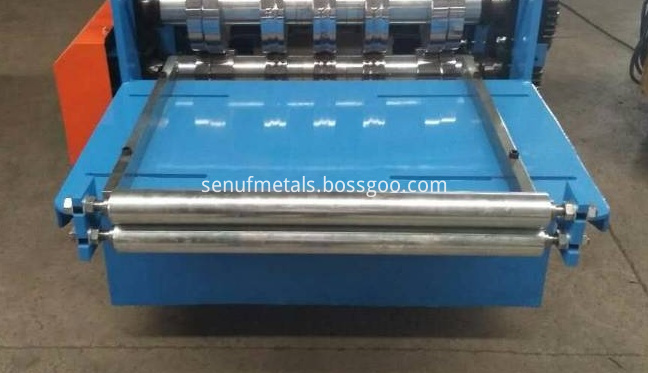

Feeding Guide


Main Roll Forming:

1. Machine frame: 400H Steel

2. Transmission: Chain

3. Forming steps: 16-20 steps

4. Shaft Diameter: 75mm

5. Roller Material: 45# steel with chromed

6. Forming Speed: 10-15m/min

7. Motor: 7.5KW

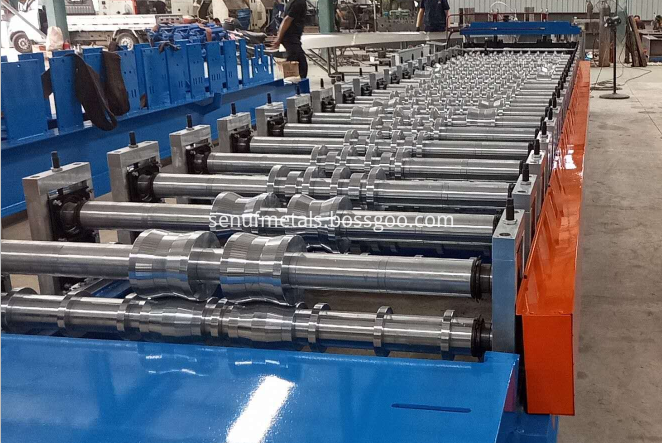

Main roll forming


Hydraulic station:

1. Power of the oil pump: 4kw

2. Hydraulic oil :40#

Hydraulic Station


Control System: PLC

Brand: Delta

Language: Chinese and English (as required)

Function: Automatic control the cutting length and quantity, easy to operate and use.

PLC


Hydraulic cutting:

Cutter Material: Cr12 mould steel with quenched treatment

Cutting Tolerance: ±1.5mm

Hydraulic Cutting
