915mm Floor Metal Deck Scaffolding Roll Forming Machine

Unit Price: USD 30000.0000 / Set/Sets
Min. Order: 1 Set/Sets

Basic Info


Model No.: SUF

Applicable industry: Hotels, Food &Amp; Beverage Factory, Construction Works

Out-of-warranty service: Video Technical Support

Where to provide local services (in which countries are there overseas service outlets): Ukraine, Egypt

Showroom location (in which countries are there sample rooms overseas): Nigeria, Philippines, Egypt

Old and new: New

Machine type: Tile Forming Machine

Tile type: Steel

use: Floor

productivity: 15 M/Min

place of origin: China

warranty period: 5 Years

Core selling point: High Safety Level

Rolling thinckness: 0.3-1mm

Feeding width: 915mm

Mechanical test report: Provided

Video factory inspection: Provided

Marketing type: New Product 2020

Core component warranty period: More Than 5 Years

Core components: Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, Plc

Control System: PLC

Motor Power: 15kw

Voltage: Customized

Thickness: 0.8-1.5mm

Material Of Cutter: Cr12

Rollers: 22 Steps

Rollers Material: 45# Steel Heat Treatment And Chromed

Shaft Diameter And Material: ¢85mm, Material Is 45# Steel

Forming Speed: 15m/min


Additional Info


Packaging: NAKED

Productivity: 500 SETS

Brand: SUF

Transportation: Ocean,Land,Air,Express,BY TRAIN

Place of Origin: CHINA

Supply Ability: 500 SETS

Certificate: ISO 9001 / CE

HS Code: 84552210

Port: FUJIAN


Product Description

SUF915mm Steel Floor Metal Deck Scaffolding Roll Forming Machine

Main feaures of Floor Steel Metal Deck Roll Forming Machine

The advanges of 915mm Steel Floor Metal Deck Scaffolding Roll Forming Machine are as follows:

1. The machine produced floor decking sheet have the features of low cost, light weight but high strength, short building period, and re-cycle use.

2. Save material, no waste,

3. Easy operation, low maintenace cost,

4. One machine for 3 models for optional (by changing spacer)


Detailed Images of SUF915mm Steel Floor Metal Deck Scaffolding Roll Forming Machine

Machine parts

1. SUF915mm Steel Floor Metal Deck Scaffolding Roll Forming Machine manual pre-cutter

Brand: SUF, Original: China

  Only for cutting the first piece and the end of piece of the sheet. For easy operation and save material: The precutter is conneted with PLC control system, PLC is calculating profile length with roll forming. Once material is required to change, PLC is calculating the length for total quantity and remid operator, production finishes and able to manual shearing material before roll forming so as to change material for new production. It is the advanced function and good for production to save material, no waste.

Floor deck forming machine 2

2. SUF915mm Steel Floor Metal Deck Scaffolding Roll Forming Machine rollers

Rollers manufactured from high quality 45#steel, CNC lathes, Heat Treatment. with Hard-Chrome Coating for long working life.

Body frame made by 400H steel by welding, The material for embossing roller: bearing steel GCR15, heat treatment.

Floor deck rollers

3. SUF915mm Steel Floor Metal Deck Scaffolding Roll Forming Machine post-cutter

Made by high quality mold steel Cr12 with heat treatment,

Cutter frame made from high quality 20mm steel plate by welding,

Hydraulic motor: 5.5kw, Hydraulic pressure range: 0-16Mpa

Floor deck cutting

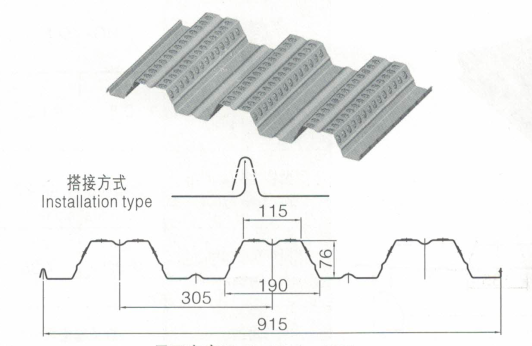

4. SUF915mm Steel Floor Metal Deck Scaffolding Roll Forming Machine product sample

0LYCDA0JW$SH9SPFJ}{TQY0



5. SUF915mm Steel Floor Metal Deck Scaffolding Roll Forming Machine decoiler

Manual decoiler: one set

Un-powered, manually control steel coil inner bore shrinkage and stop

Max feeding width: 1200mm, coil ID range 508±30mm

Capacity: 5-9 ton

Manual decoiler

5 tons hydraulic decoiler

5 tons hydraulic decoiler with trolley

6. SUF915mm Steel Floor Metal Deck Scaffolding Roll Forming Machine

Un-powered, one unit


Other detailes of SUF915mm Steel Floor Metal Deck Scaffolding Roll Forming Machine

Suitable for material with thickness 0.8-1.5mm

Shaft manufactured from 45#, Main shaft diameter Φ90mm, precision machined

Motor driving, gear chain transmission, 22 steps to form,

Main motor 18.5kw, Frequency speed control, Forming speed approx 12-15m/min


PLC control system (Touch screen brand: German Schneider Electric/Taiwan WEINVIEW, Inverter brand: Taiwan Delta, Encoder brand: Omron)

Combined with: PLC, Inverter, TouchScreen, Encoder, etc,

Cut-to-length tolerance≤±2mm,

Control voltage: 24V

User's manual: English
