845&900 Roofing Sheet Double Layer IBR Corrugated Machine

Payment Type: L/C,T/T,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,CIP
Min. Order: 1 Set/Sets
Delivery Time: 30 Days

Basic Info


Model No.: SUF

Tile Type: Colored Steel

Certification: CE, ISO

Condition: New

Customized: Customized

Usage: Roof, Wall, Floor

Transmission Method: Machinery

RAW MATERIAL: 0.3-0.8mm, GI, PPGI For Q195-Q345

Driven: Chain

Material Of Rollers: 45# With Chromed

Shaft Diameter And Material: ¢75 Mm, Material Is 45# Forge Steel With Heat Treatment And Chromed

Control System: PLC

Voltage: Customized

Material Of Cutter: Cr12

Roller Stations: 14


Additional Info


Packaging: NAKED

Productivity: 500 SETS

Brand: SUF

Transportation: Ocean

Place of Origin: CHINA

Supply Ability: 500 SETS

Certificate: ISO 9001 / CE

HS Code: 84552210

Port: TIANJIN,XIAMEN


Product Description

845&900 Roofing Sheet Double Layer IBR Corrugated Machine

   Double Laye Roll Forming Machine and Corrugated Metal Sheet Making Machine is also called Steel Roof Tile Roll Forming Machine or Corrugated Metal Sheet Making Machine.It is a kind of machine which have two production lines for the roof sheet, the upper layer is one line, and the under layer is another line.But the two layers of Roofing Sheet Tile Roll Forming Machine or two lines can not product at the same time. Compared with two sets single layer machine, it can save space,money, just with one electric control desk and one hydraulic station, so it is easy to do the maintenance for workers.

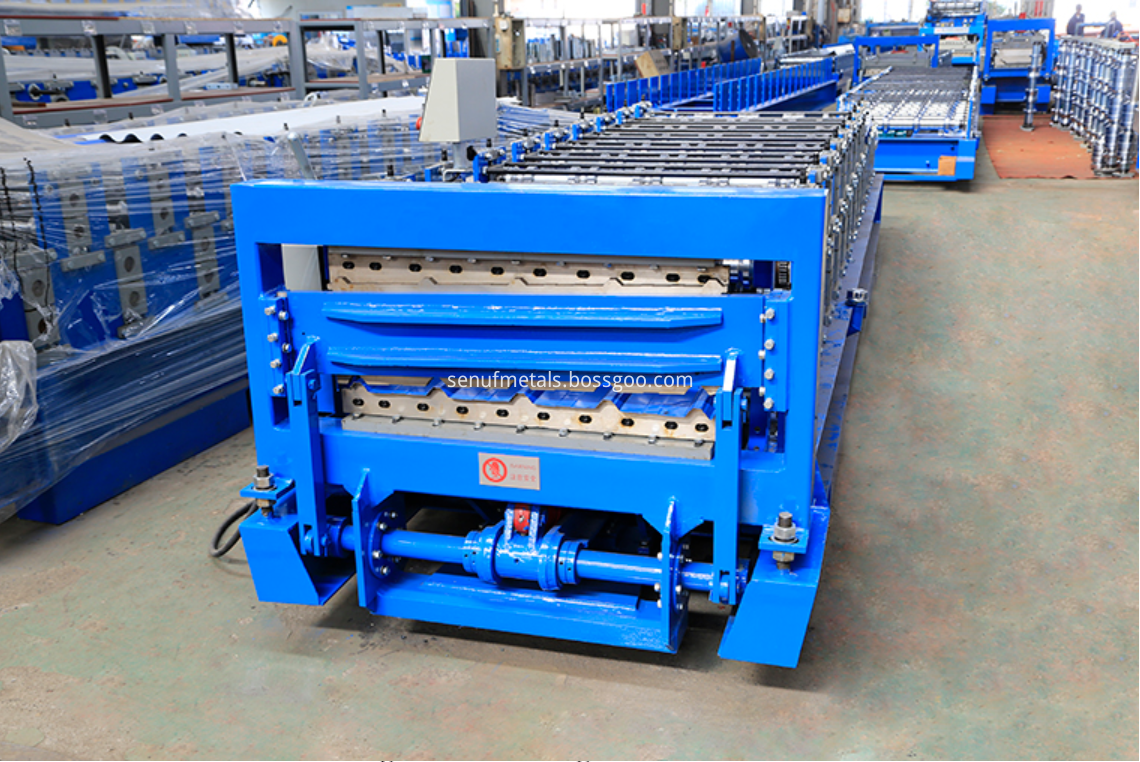

double layer -1

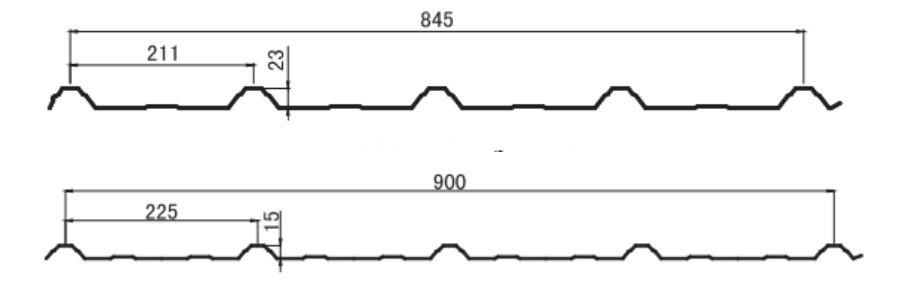

double layer drawing -1


Main features of 845&900 Roofing Sheet Double Layer IBR Corrugated Machine

The advantages of Double Laye Roll Forming Machine

1. Produce different roof panel size in one machine

2. Save space, more convenient,

3. Easy operation, low maintenance cost,

4. Stable and durable, sea freight for import can be saved by 50%


Detailed Images of 845&900 Roofing Sheet Double Layer Forming Machine

Machine parts

1. 845&900 Roofing Sheet Roll Forming Machine feeding guide

Make material feeding more smoothly and straight

double layer -2

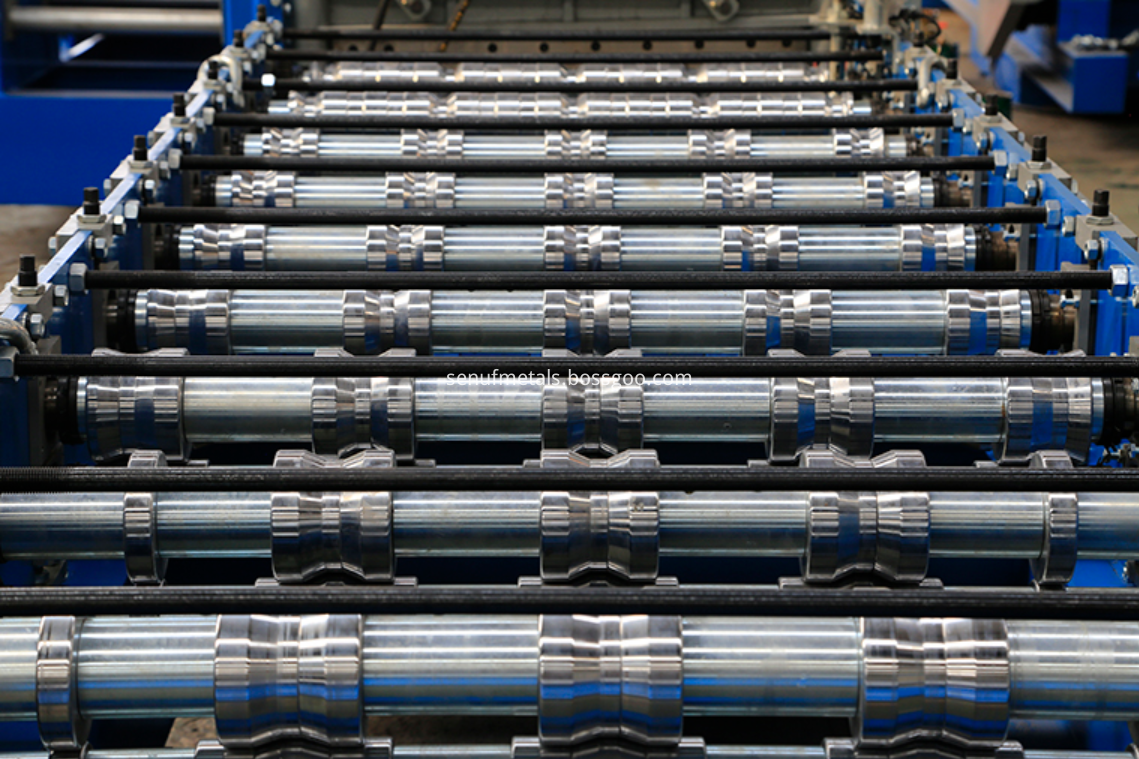

2. 845&900 Roofing Sheet Roll Forming Machine rollers

Rollers are manufactured by high quality bearing steel Gcr15, CNC lathes, Heat Treatment, with black treatment or Hard-Chrome Coating for option, With feeding material guide, body frame made by 300#H type steel by welding

double layer -3

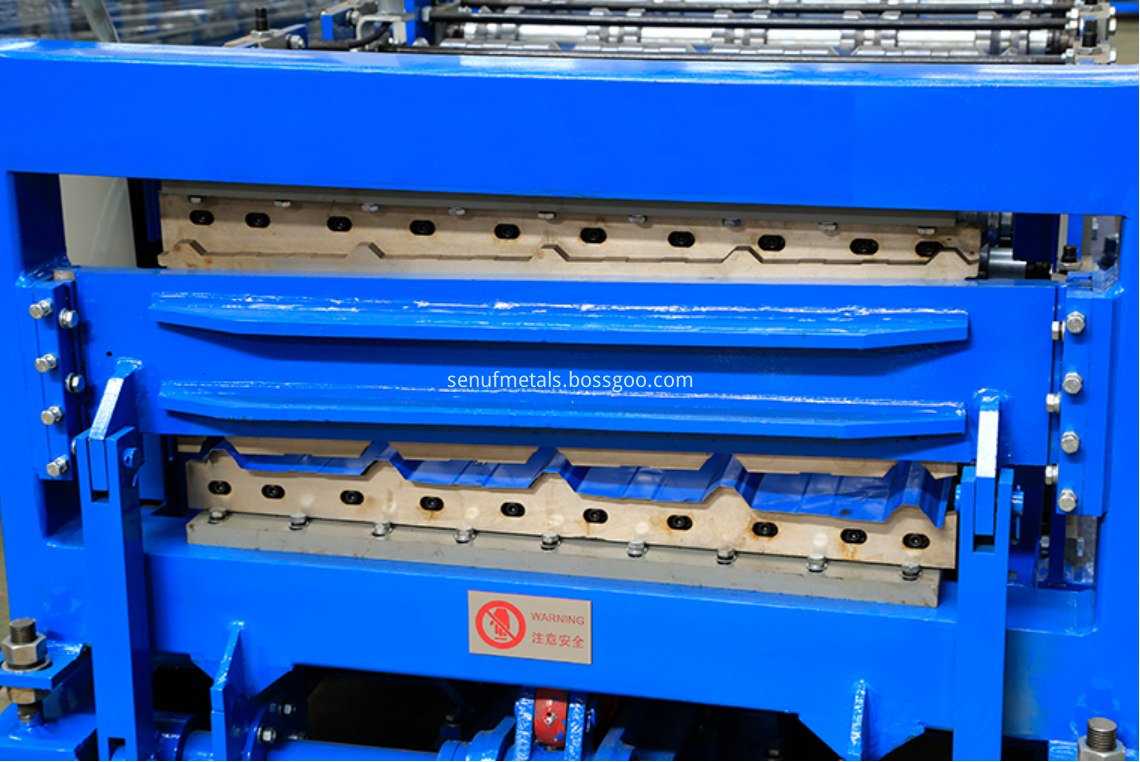

3. 845&900 Roofing Sheet Roll Forming Machine post cutter

Made by high quality mold steel Cr12 with heat treatment ,

Cutter frame made by high quality 25mm steel plate by welding

Hydraulic motor: 2.2kw, hydraulic pressure range: 0-16Mpa

double layer -4

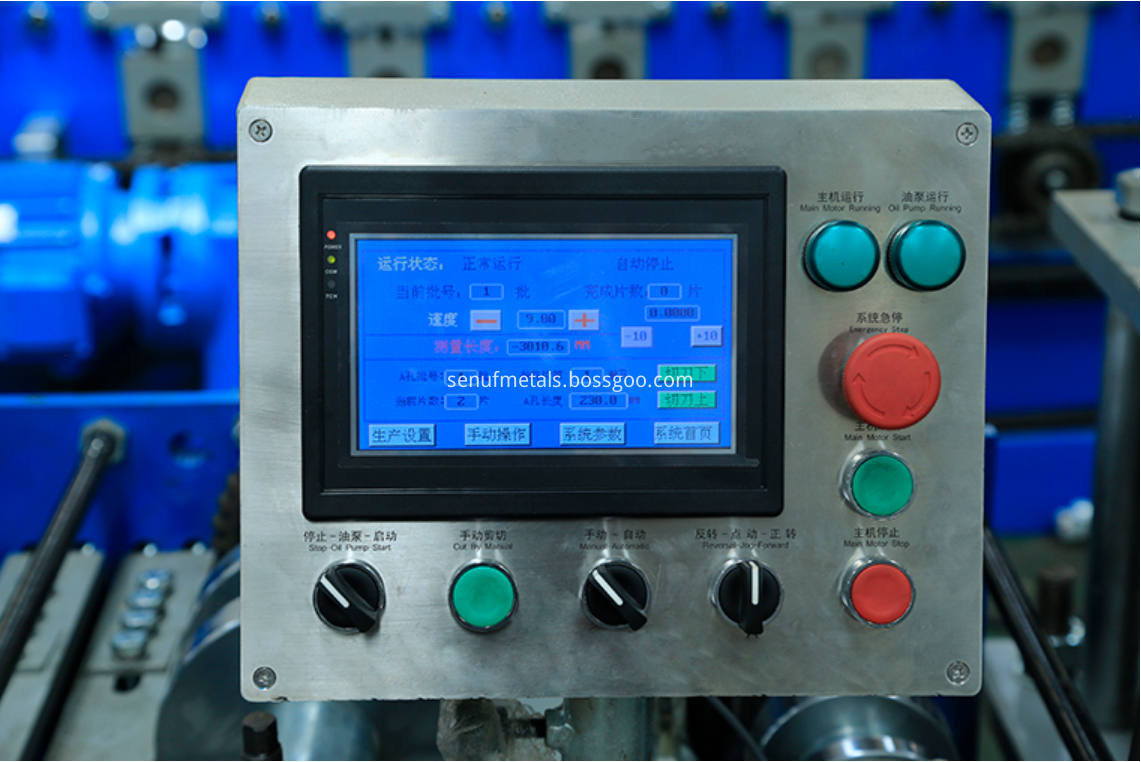

4. 845&900 Roofing Sheet Roll Forming Machine Control System

Easy to operate

double layer -5

5. 845&900 Roofing Sheet Roll Forming Machine Decoiler

Manual decoiler: one set

Un-powered, manually control steel coil inner bore shrinkage and stop

Max feeding width: 1250mm, coil ID range 470±30mm,

Capacity: Max 8 ton

Manual decoiler


 with 6 tons hydraulic as optional

5 tons hydraulic decoiler

5 tons hydraulic decoiler with trolley

6. 845&900 Roofing Sheet Roll Forming Machine exit rack

Un-powered, one unit


Other details of 845&900 Roofing Sheet Double Layer Roll Forming Machine

Suitable for material with thickness 0.3-0.8mm,

Shafts manufactured by 45#, main shaft diameter 75mm, precision machiend,

Motor driving, gear chain transmission, 14/9 forming stations,

Main motor 5.5kw, frequenct speed control, forming speed approx 12-15m/min
