U type double out light keel forming line

Unit Price: USD 15000.0000 / Set/Sets
Min. Order: 1 Set/Sets

Basic Info


Model No.: senuf-draywall forming

Types of: Steel Frame &Amp; Purlin Machine

Applicable industry: Hotels, Food &Amp; Beverage Factory, Construction Works

Out-of-warranty service: Video Technical Support

Where to provide local services (in which countries are there overseas service outlets): Egypt, Spain, Chile, Ukraine, United States, United Kingdom

Showroom location (in which countries are there sample rooms overseas): Egypt, Philippines, United Kingdom, United States

Video factory inspection: Provided

Mechanical test report: Provided

Marketing type: New Product 2020

Core component warranty period: 5 Years

Core components: Plc, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump

Old and new: New

place of origin: China

warranty period: More Than 5 Years

Core selling point: High Safety Level

Shaft Diameter: 40mm

Control System: PLC

Thickness: 0.3-0.8mm

Certification: ISO9001

Customized: Customized

Condition: New

Control Type: Other

Automatic Grade: Automatic

Drive: Hydraulic

Shaft Material: 45# Forged Steel

Roller Stations: 10

Main Power: 4.0kw

Forming Speed: 0-40m/min

Driven: Gear Box

Hydraulic Station: 3.0kw


Additional Info


Packaging: Naked

Productivity: 500 sets

Brand: SUF

Transportation: Ocean,Land,Air,Express,BY TRAIN

Place of Origin: Hebei

Supply Ability: 500 sets

Certificate: ISO / CE

HS Code: 84552210

Port: Tianjin,SHANGHAI,NINGBO


Product Description

Drywall Metal Stud And Track Furring Forming Machine

   We are Professional in making the complete machine for metal profile, metal strip ceiling, baffle ceiling, open cell ceiling, and other type ceiling, and ceiling carrier. We can making machine according to your product size and product material. Our machines have exported to many oversea countries, and have the good reputations. We can provide the suitable solution of machine for you according to your detail request and product size.

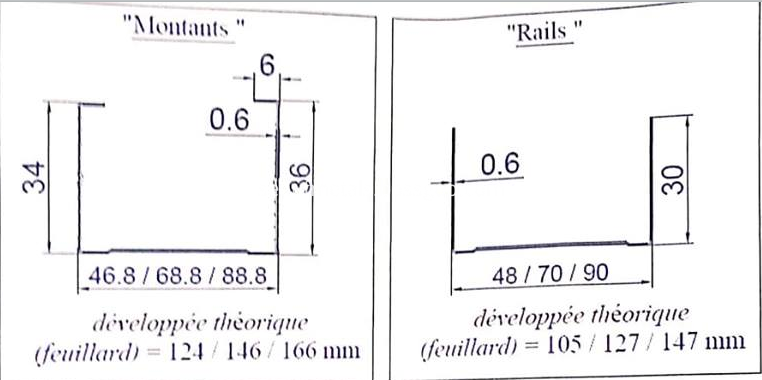

(1 machine for multi-profiles, size-changing by spacers)



ANGLE HAT CU CZ drywall forming machine

   Metal Frame CU Light Keel Roll Forming Machine is used to plaster board, gypsum board and other decorative finishes lightweight board made of non-load-bearing walls and roof of the building style decoration, a variety of decorative building roof shape, inside and outside the building wall and ceiling scaffolding base material. Used in hotels, terminals, bus terminal, railway stations, theaters, shopping malls, factories, office buildings, old building renovation, interior decoration settings, roof and other places.

1604217147(1)

(1 machine for multi-profiles, size-changing by spacers)


The advantages of Steel Light Keel Roll Forming Machine are follows:

① The speed can reach 40-80m/min,

② Enlarged hydraulic station to ensure high speed working,

③ Easy operation, low maintenance cost,

④ Beautiful appearance,

⑤ One machine for multi-profiles, size-changing by spacer.


2. Detailed images of CU Light Keel Roll Forming Machine

Machine Parts:

(1) Metal Frame Light Keel Forming Machine

Brands: SUF, Original: China

Feeding Guide (make feeding smooth and no wrinkling)

Fedding Guide

(2) Metal Frame CU Light Keel Roll Forming Machine Rollers

Rollers manufactures from hong life mold steel Cr12=D3 with heat treatment, CNC lathes,

Heat treatment (with black treatment or hard-chrome coating for options),

With feeding material guide, body frame made from 400# H type steel by welding.

Rollers

(3) Steel Light Keel Roll Forming Machine straighting and logo punching device

punching

Punching (2)

(4) Metal Frame Light Keel Forming Machine operation panel

Operation panel

(5) Metal Frame CU Light Keel Roll Forming Machine flying cutting

Made by high quality long life mold steel Cr12Mov with heat treatment,

Cutter frame made from high quality 30mm steel plate by welding,

Hydraulic motor: 5.5kw, Hydraulic pressure range: 0-16Mpa.

Cutting mold

Cut

cut (2)

(6) High Speed Metal Stud Track Roll Forming Machine Hydraulic System

Englarged hydraulic station to ensure high speed working

Hydraulic Station (2)

(7) Steel Light Keel Roll Forming Machine Decoiler

Manual Decoiler: one set

Un-powered, manually control steel coil inner bore shrinkage and stop,

Max feeding width: 500mm, Coil ID range: 508±30mm,

Capacity: Max 3 tons.

3 tons manual decoiler

With 3 tons hydraulic decoiler for option

3 tons hydraulic decoiler

(8) CU Light Keel Roll Forming Machine Exit Rack

Un-powered, 4 meters long, one set

Collect table


Other detailes of Metal Frame Light Keel Forming Machine

Suitable for material with thickness 0.3-0.8mm,

Shafts manufactures from 45#, main shaft diameter 75mm, precision machined,

Motor driving, gear chain transmission, 12 rollers to form,

Main servo motor: 2.0kw, frequency speed control,

Forming speed: 40 / 80m/min as optional.

1566538175(1)


Contact info: WhtasApp: +8615716889085
