SUF 112-300 ridge cap roof sheet forming machine

Payment Type: L/C,T/T,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,CIP
Min. Order: 1 Set/Sets
Delivery Time: 45 Days

Basic Info


Model No.: SUF

Tile Type: Colored Steel

Certification: CE, ISO

Condition: New

Customized: Customized

Usage: Roof, Wall, Floor

Transmission Method: Hydraulic Pressure

Thickness: 0.3-0.8mm

Material: GI, PPGI For Q195-Q345

Rollers: 10

Material Of Rollers: 45# Steel With Chromed

Material Of Shaft: 45# Steel

Material Of Cutter: Cr12

Voltage: Customized

Control System: PLC


Additional Info


Packaging: NAKED

Productivity: 500 SETS

Brand: SUF

Transportation: Ocean

Place of Origin: CHINA

Supply Ability: 500 SETS

Certificate: ISO 9001 / CE

HS Code: 84552210

Port: XIAMEN,TIANJIN


Product Description

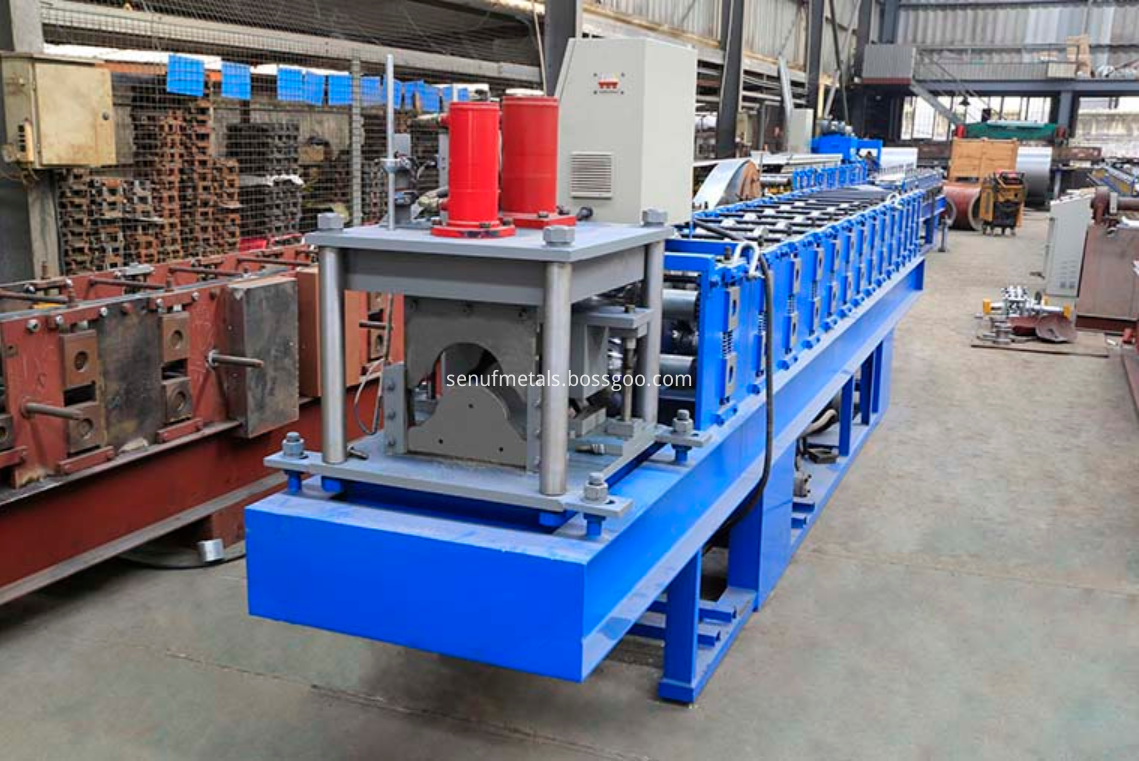

SUF 112-300 ridge cap roof sheet forming machine

112-300 ridge cap machine

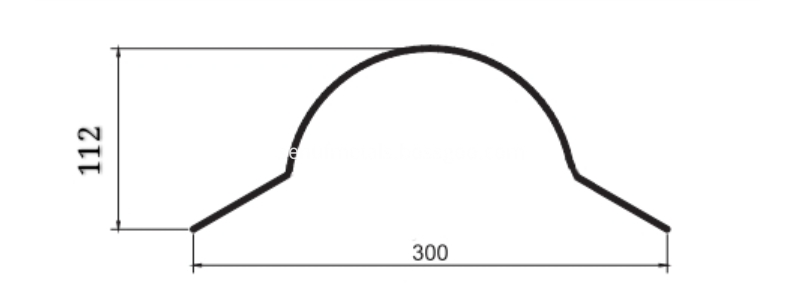

112-300 ridge cap drawing


Main features of Automatic 112-300 ridge cap roof sheet machine

The advantages of Roof sheet metal panel rolling machine are as follows:

1. Widely used in many kinds of industrial factory, civilian buildings,

2. Pretty apperance, durable using,

3. Instead using bending machine to make angel tile,

4. Saving human resoureces, lower labor cost


Detailed Images of 112-300 ridge cap roof sheet machine

Machine Parts

1. 112-300 ridge cap roof sheet machine feeding guide device

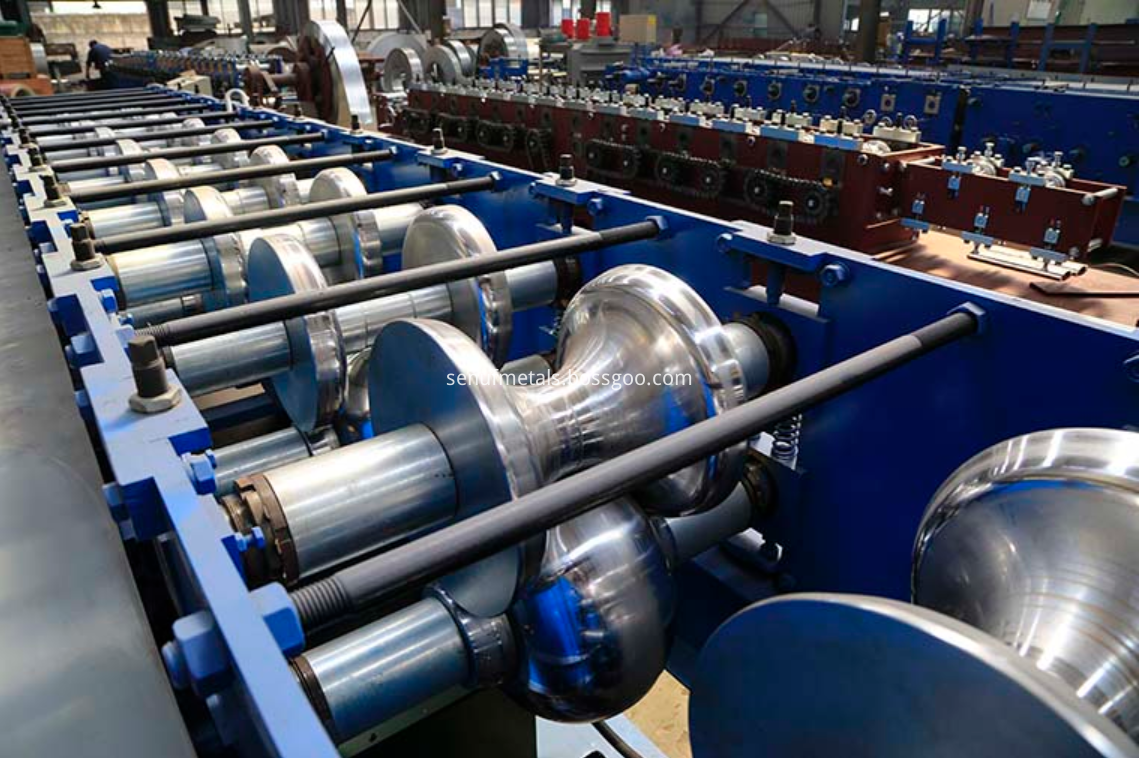

ridge cap rollers

2. Automatic 115-300 Cap Ridge Cold Roll Forming Machine rollers

Roller s manufactured by high quality 45# steel, CNC lathes, Heat Treatment, with black treatment of Harf-Chrome Coating for options,

With feeding material guide, body frame made by 400# H type steel by welding,

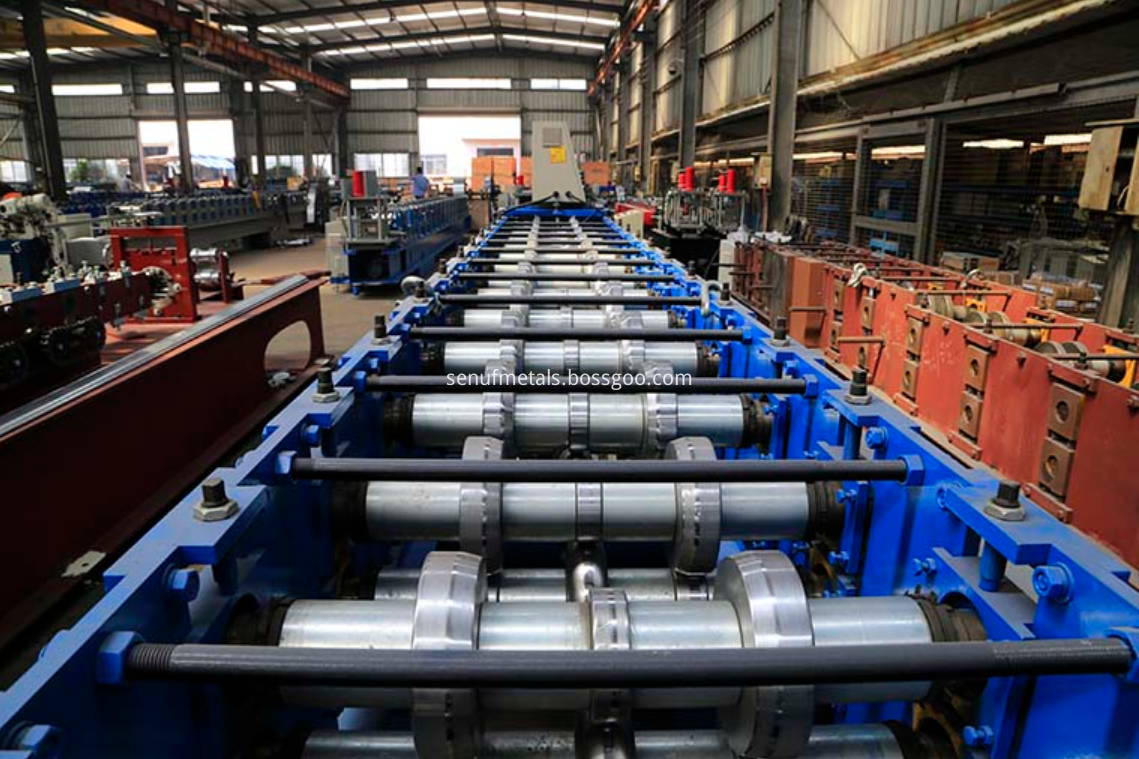

112-300 ridge cap machine rollers

112-300 ridge cap machine rollers (2)



3. 112-300 ridge cap roof sheet machine post cutter

Made by high quality mold steel Cr12 with heat treatment,

Cutter frame made by high quality 20mm steel plate by welding,

Hydraulic motor: 2.2kw, hydraulic pressure range: 0-16Mpa

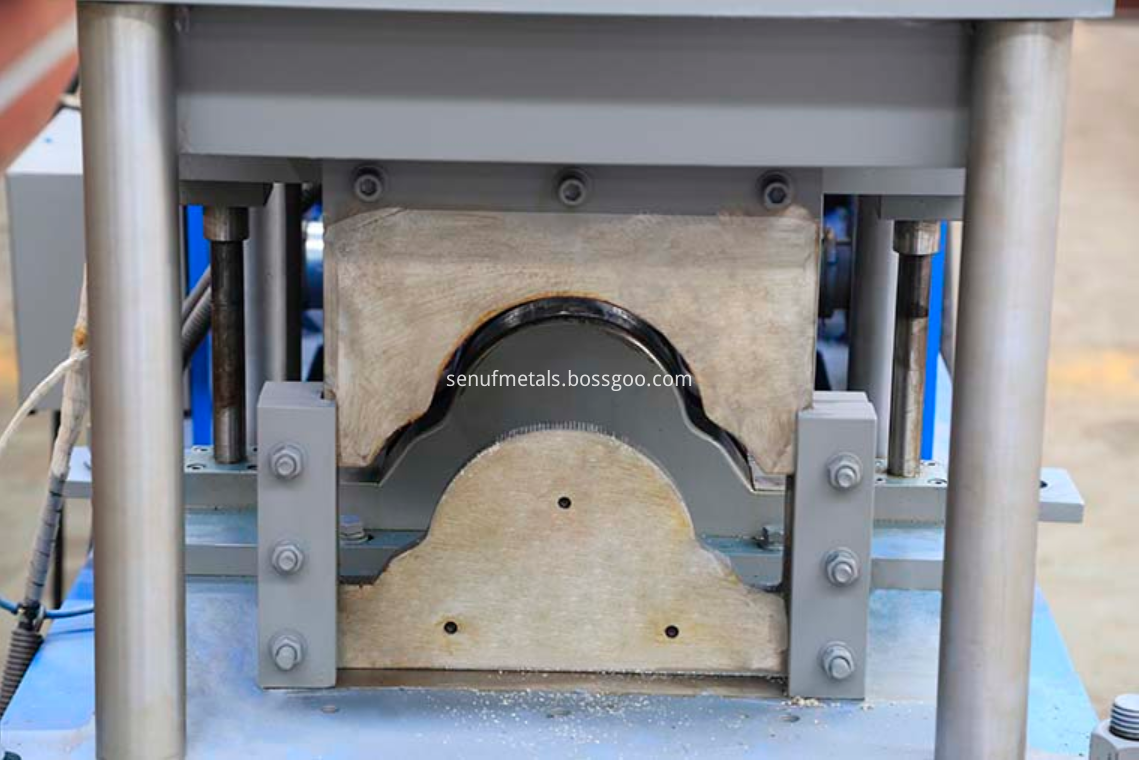

112-300 ridge cap post cutter



4. 112-300 ridge cap roof sheet machine punch mold

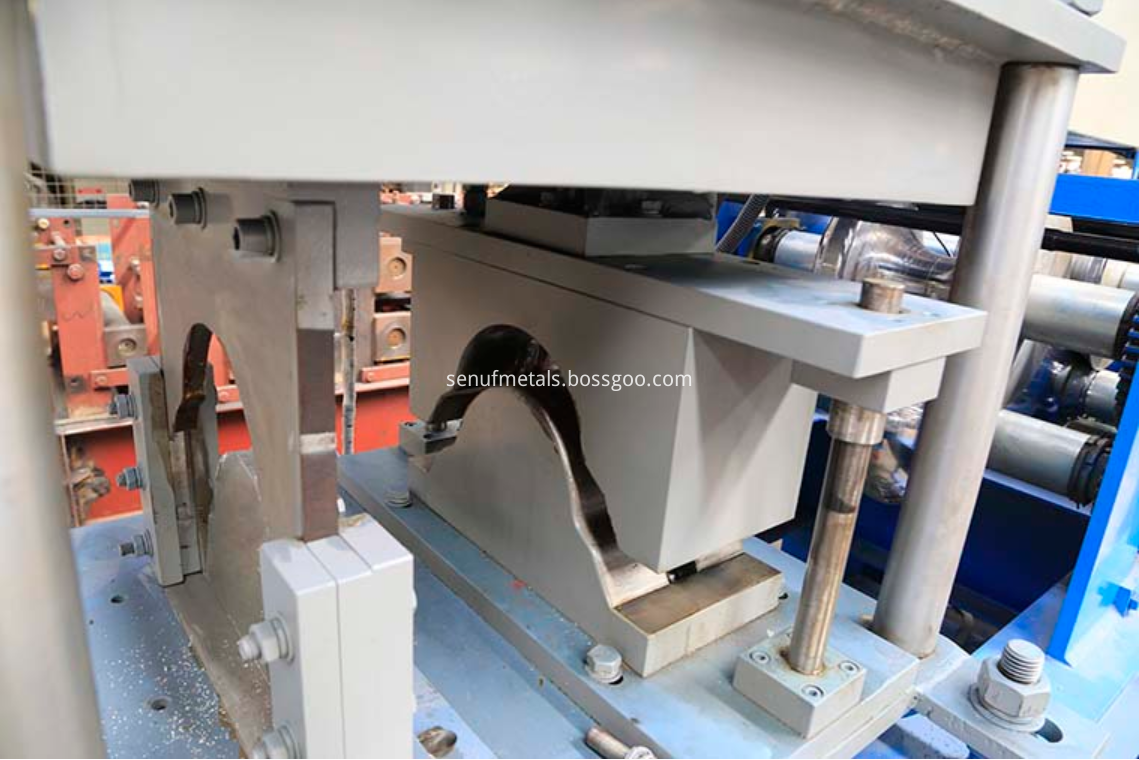

112-300 ridge cap punch mold



5. Automatic 115-300 Cap Ridge Cold Roll Forming Machine PLC control cabinet

112-300 ridge cap machine (2)



6. Roof ridge cap sheet forming machine decoiler

Manual decoiler: one set

Un-powered, manually control steel coil inner bore shrinkage and stop

Max feeding width: 508mm,

Coil ID range: 470±30mm,

Capacity: Max 3 tons

ridge cap 3 tons manual decoiler

with 3 tons hydraulic decoiler as optional

ridge cap 3 tons hydraulic decoiler

7. 112-300 ridge cap roof sheet machine exit rack

Un-powered, one set

ridge cap exit rack


Other details of SUF 112-300 ridge cap roof sheet forming machine

Suitable for material with thickness 0.4-0.6mm,

Shafts manufactures by 45#, main shaft diameter 55/75mm, precision machined,

Motor driving, gear chain tranmission, 14 steps to form,

Main motor 5.5kw, frequency speed control, forming speed approx 12-15m/min
