PLC Control Roller Shutter Door Roll Forming

Unit Price: USD 10000.0000 / Set/Sets
Min. Order: 1 Set/Sets

Basic Info


Model No.: SUF- SLAT DOOR

Types of: Steel Frame &Amp; Purlin Machine

Applicable industry: Hotels, Food &Amp; Beverage Factory, Construction Works

Out-of-warranty service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Where to provide local services (in which countries are there overseas service outlets): Egypt, Philippines, Spain, Chile, United Kingdom, United States

Showroom location (in which countries are there sample rooms overseas): Egypt, Spain, Algeria, Nigeria, Philippines

Video factory inspection: Provided

Mechanical test report: Provided

Marketing type: New Product 2020

Core component warranty period: 5 Years

Core components: Plc, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump

Old and new: New

place of origin: China

warranty period: More Than 5 Years

Core selling point: Easy To Operate

Certification: ISO9001

Customized: Customized

Condition: New

Control Type: Other

Automatic Grade: Automatic

Drive: Hydraulic

Thickness: 0.7-0.8

Roller Stations: 20 Steps


Additional Info


Packaging: NAKED

Productivity: 500 SETS

Brand: SUF

Transportation: Ocean,BY TRAIN,Express,Air,Land

Place of Origin: CHINA

Supply Ability: 500 SETS

Certificate: ISO 9001 / CE

HS Code: 84552210

Port: XIAMEN,TIANJIN,SHANGHAI


Product Description

PLC Control Australia Roller Shutter Door Roll Forming Machine

   PLC Control Roll Forming Machine with low noise than normal Roller Shutter Door Roll Forming Machine, the complete door roll forming machine line includes decoiler, main machine, PLC control system and exit racks, our machines are equipped with a computer cotrolling system, we simply program the pieces and length we need in the computer and the door machine produces it automatically, the machines are easy to operate and running table.

roller shutter door forming machine

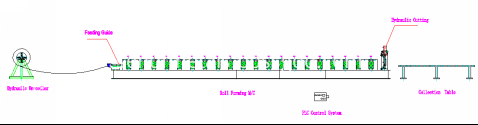

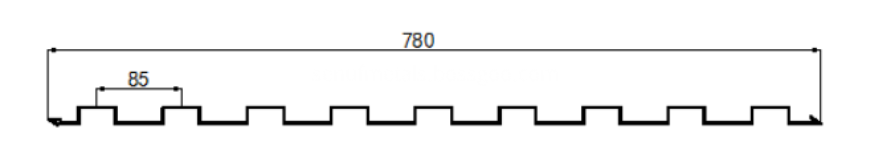

Drawing


Main features of Roller Shutter Door Roll Forming Machine

1. Save spaces, more convenient,

2. Easy operation, low maintenane cost,

3. Sable and durable.

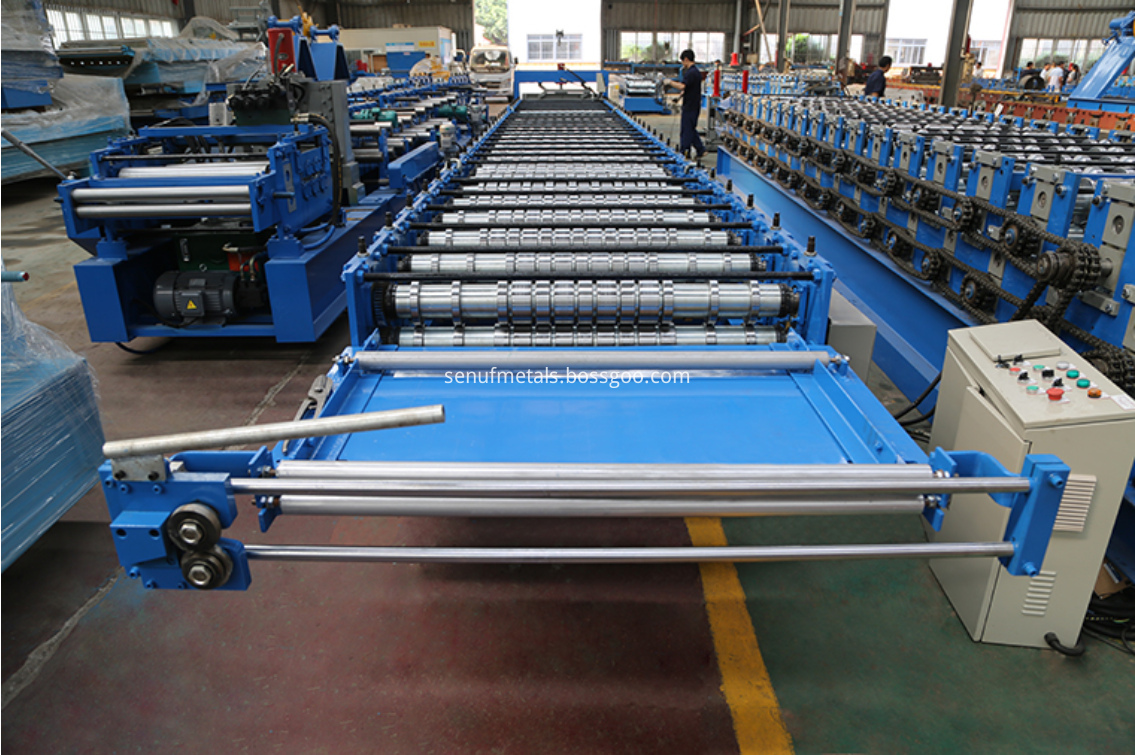

Detailed images of Australia Roller Shutter Door Roll Forming Machine

Working process


Machine parts

1. PLC Control Australia Roller Shutter Door Roll Forming Machine Pre Cutter

Roller shutter door forming machine (2)

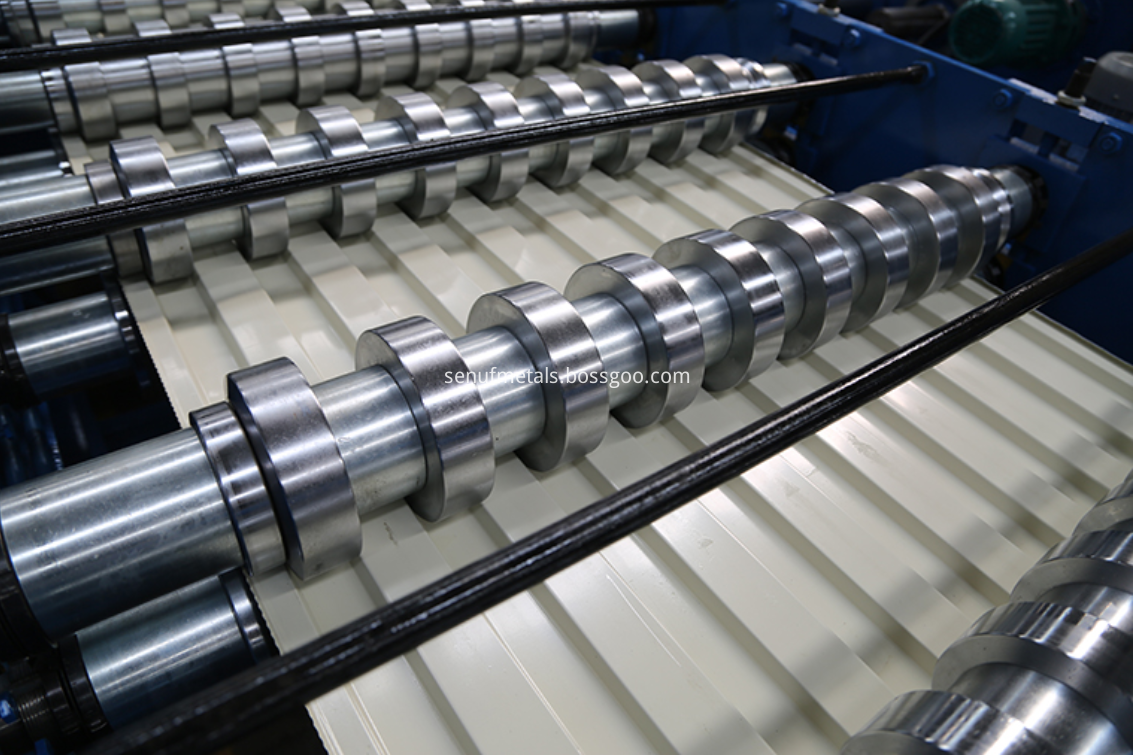

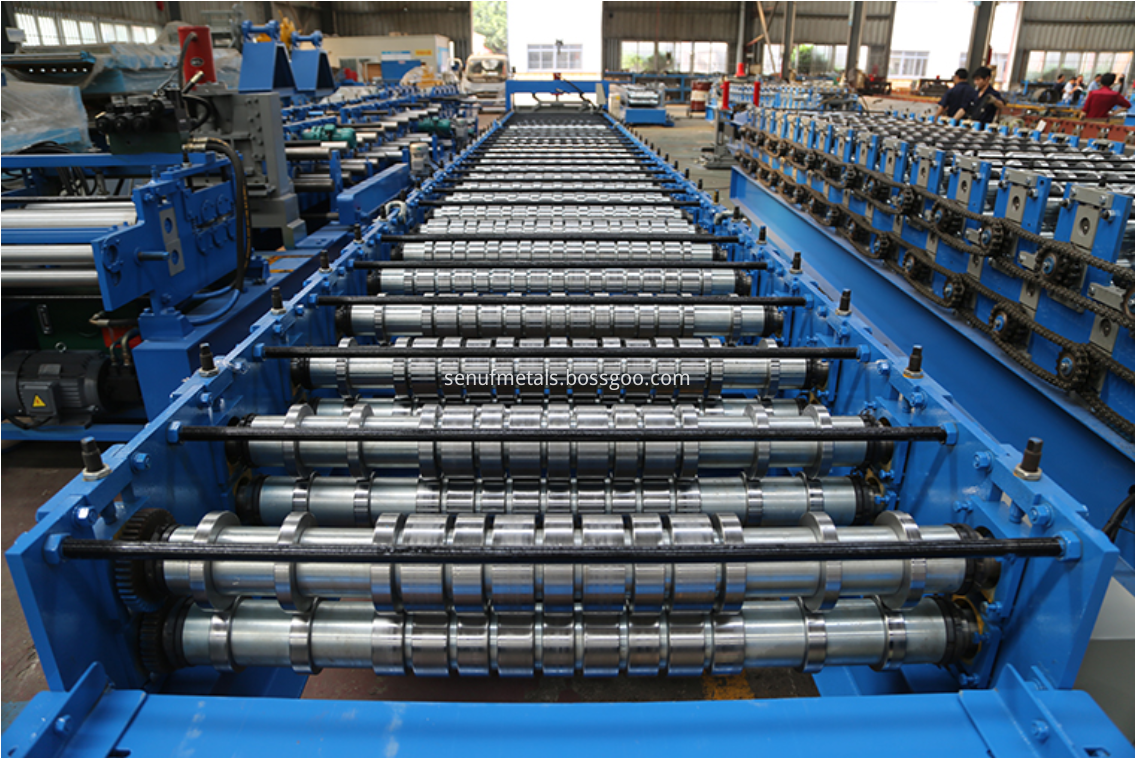

2. Roller Shutter Door Roll Forming Machine Rollers

Rollers manufactured by high quality 45# steel, CNC lathes, Heat Treatment, with black treament or Hard-Chrome Coating for options,

with feeding material guide, body frame made by 400# H type steel by welding

roller shutter door forming machine rollers

roller shutter door forming machine rollers

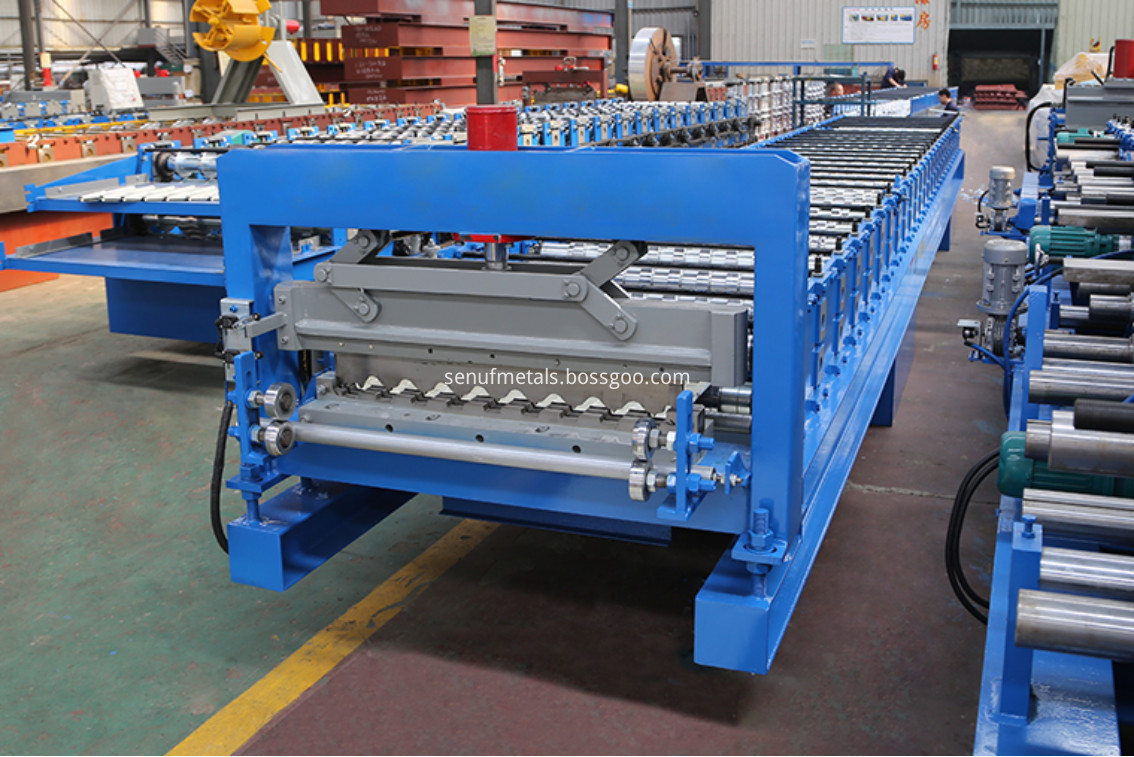

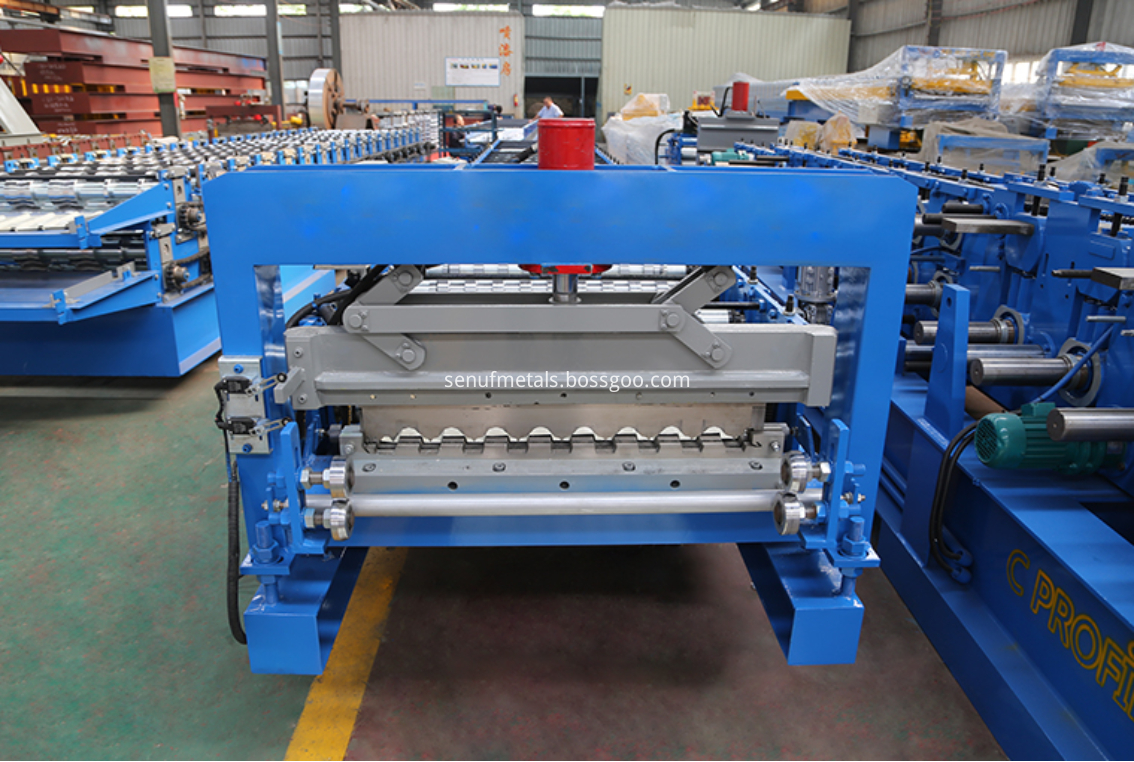

3. Australia Roller Shutter Door Roll Forming Machine Post Cutter

Made by high quality mold steel Cr12 with heat treatment,

Cutter frame made by high quality 20mm steel plate by welding,

Hydraulic motor: 2.2kw, Hydraulic pressure range: 0-16Mpa

roller shutter door forming machine cutter

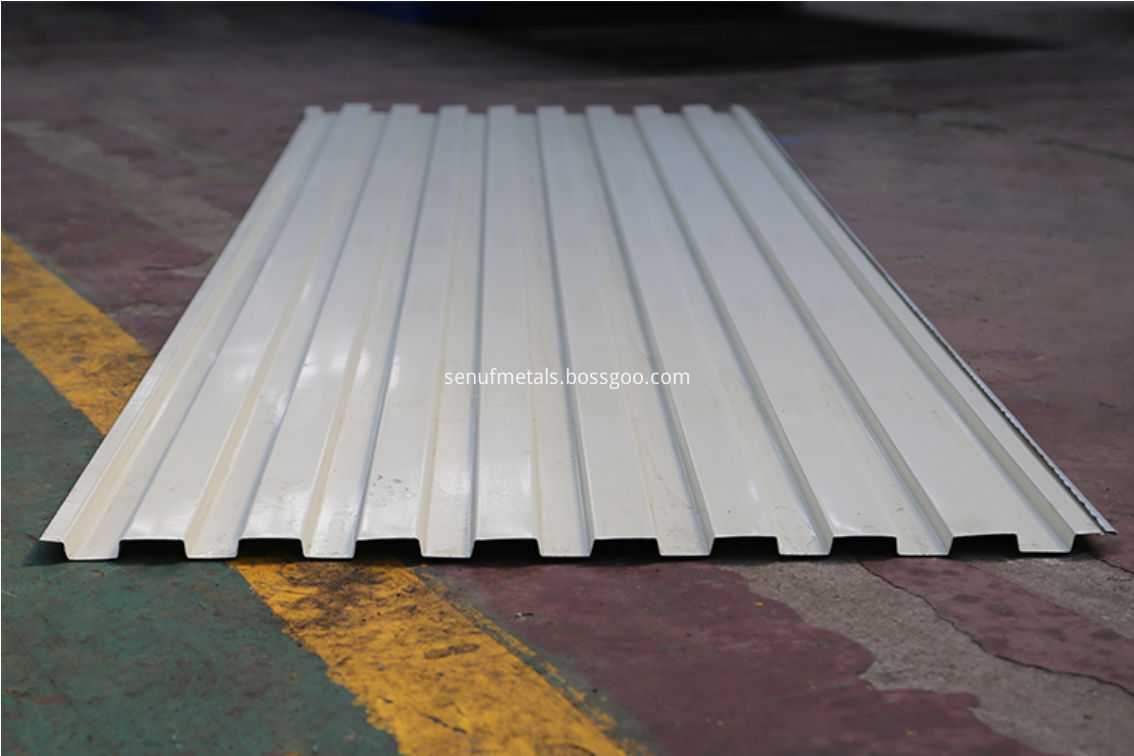

4. PLC Control Australia Roller Shutter Door Roll Forming Machine Product Samples

roller shutter door forming machine samples


5. Roller Shutter Door Roll Forming Machine Decoiler

Manual decoiler: one set

Un-powered, manually control steel coil inner bore shrinkage and stop

Max.feeding width: 1250mm, coil ID range 470±30mm,

Capacity: Max 8 ton

With 6 tons hydraulic decoiler for  option


6. PLC Control Australia Roller Shutter Door Roll Forming Exit Rack

Un-powered, one set


Other details of PLC Control Australia Roller Shutter Door Roll Forming Machine

Suitable for material with thickness 0.3-0.8mm

Shaft manufactured by 45#, main shaft diameter 75mm, precision machined,

Motor driving, gear chain transmission, 20 steps to form,

Main motor 7.5kw, frequency speed control, forming speed approx 12-15m/min
