High-speed No-stop cutting C purlin roll forming machine

Unit Price: USD 5800.0000 - 6500.0000 / Set/Sets

Basic Info


Model No.: SF002

Types of: Steel Frame &Amp; Purlin Machine

Applicable industry: Hotels, Food &Amp; Beverage Factory, Construction Works, Energy &Amp; Mining

Out-of-warranty service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Where to provide local services (in which countries are there overseas service outlets): Egypt, Philippines, Ukraine, Chile, Spain, Thailand, Uae

Showroom location (in which countries are there sample rooms overseas): Canada, Egypt, Philippines, Spain, Algeria, Nigeria

Video factory inspection: Provided

Mechanical test report: Provided

Marketing type: New Product 2020

Core component warranty period: 3 Years

Core components: Plc, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump

Old and new: New

place of origin: China

warranty period: 2 Years

Core selling point: Long Service Life

Warranty: 1 Years

Certification: Other

Condition: New

Customized: Customized

Automatic Grade: Automatic

Structure: Horizontal

Transmission Method: Electric

Type: Light Keel Forming Machine

Brand Name: SENUF

Voltage: 38v, 50hz

Weight: 5000kgs

After-sales Service Provided:: Online Support, Free Spare Parts, Field Maintenance And Repair Service, Video Technical Support

Material Thickness:: 0.25-0.8mm

Production Capacity: 25-45m/min

Life Time: At Least 5 Years


Additional Info


Packaging: many kinds packing as customers demand

Productivity: 10SETS per month

Brand: senuf

Transportation: Ocean,Land,Air,Express,intermodality

Place of Origin: hebei china

Supply Ability: 1000sets/year

Certificate: ISO9001

HS Code: 73089000

Port: Xingang,Shanghai,QINGDAO


Product Description

High-speed No-stop cutting steel C purlin roll forming machine

Name

 Light Steel Keel Sheet Metal Profile Cold Roll Forming Machine Manufacturer

 Suitable Material

 Colored or galvanized steel coil, HRB60 or equivalent

 Thickness Range

 0.3-0.8 mm

 Coil Width Range

 According to your actual drawing.

 Electric Power

 380V, 50 Hz, 3 phase

 or according to your need.

 Dimension

 About 4.8*0.8*1.2 m(L*W*H), as per the drawing

 Cutting

 Automatically stop and cutting when it comes to the set length.

 Length of the Sheet

 You can set the length according to your need.

 It is controlled by PLC

 length accuracy: ±1mm.

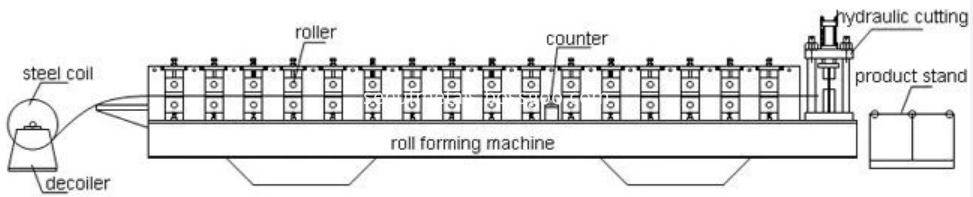

Working Flow

Decoiler sheet guiding-Roll forming-Measure length-Cutting-Panels to product stand

light  keel forming machine working flow




Product Details

light  keel forming machine working flow (1)

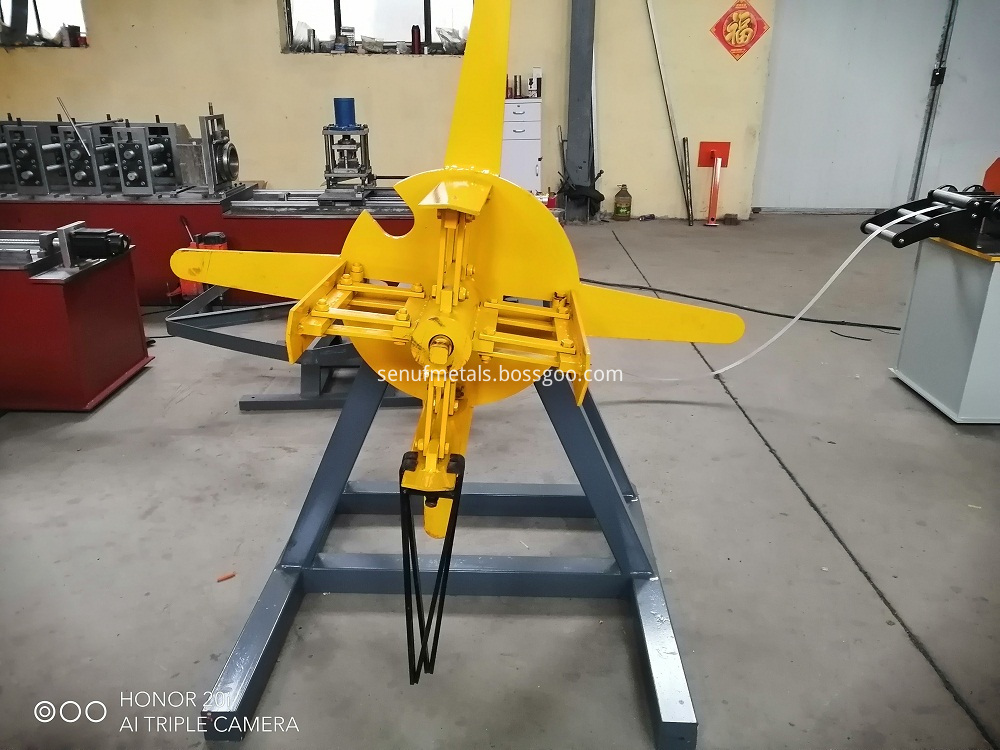

uncoiler

 Loading capacity

 1.5 T

 Inner diameter

 470-530 mm

 Steel coil width

 300 mm.

 According to your actual drawing.

light  keel forming machine working flow (3)

feeding table

It is used to control the width and position of the steel sheet.

The sheet is guided into the machine with correct position,

to make sure the panel is neat and parallel.

light  keel forming machine working flow (4)

main frame

Material

350 H steel

Feature

more table, no shaking

light  keel forming machine working flow (5)

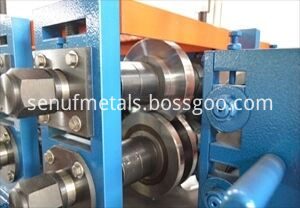

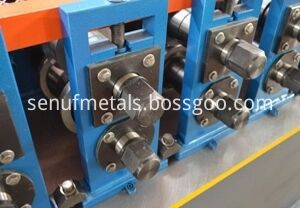

forming rollers

Material

High grade 45# steel.

Roller stations

11-16 stations.

According to your actual drawing

light  keel forming machine working flow (6)

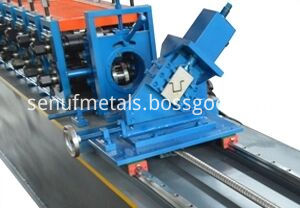

cutting system

Material of blade

Cr12MOV, much better than  normal Cr12 material

Hydraulic power

3KW

light  keel forming machine working flow (13)

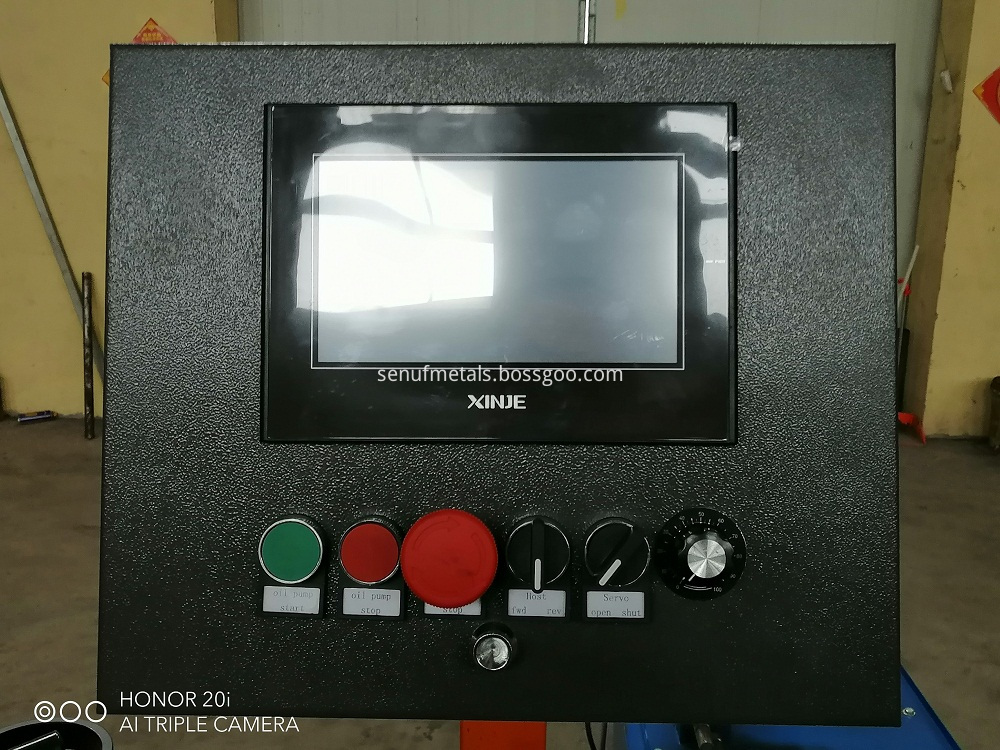

control cabinet

Suitable power

380V, 50Hz, 3phase

or according to your need.

Feature

The whole process is automatically controlled by the computer.

In this way, you can ensure the accuracy and easy work.
